2.9 Mechanical Considerations
2.9.1 Form Factor
The board is designed to fit into an ATX-form-factor chassis. Figure 24 illustrates the mechanical
form factor for the board. Dimensions are given in inches [millimeters]. The outer dimensions are
12.00 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters]. Location of the I/O
connectors and mounting holes are in compliance with the ATX specification.
OM19037
6.100
[154.94]
6.450
[163.83]
3.100
[78.74]
2.850
[72.39]
6.500
[165.10]
5.200
[132.08]
5.500
[139.70]
1.800
[45.72]
0.00
0.00
4.900
[124.46]
6.200
[157.48]

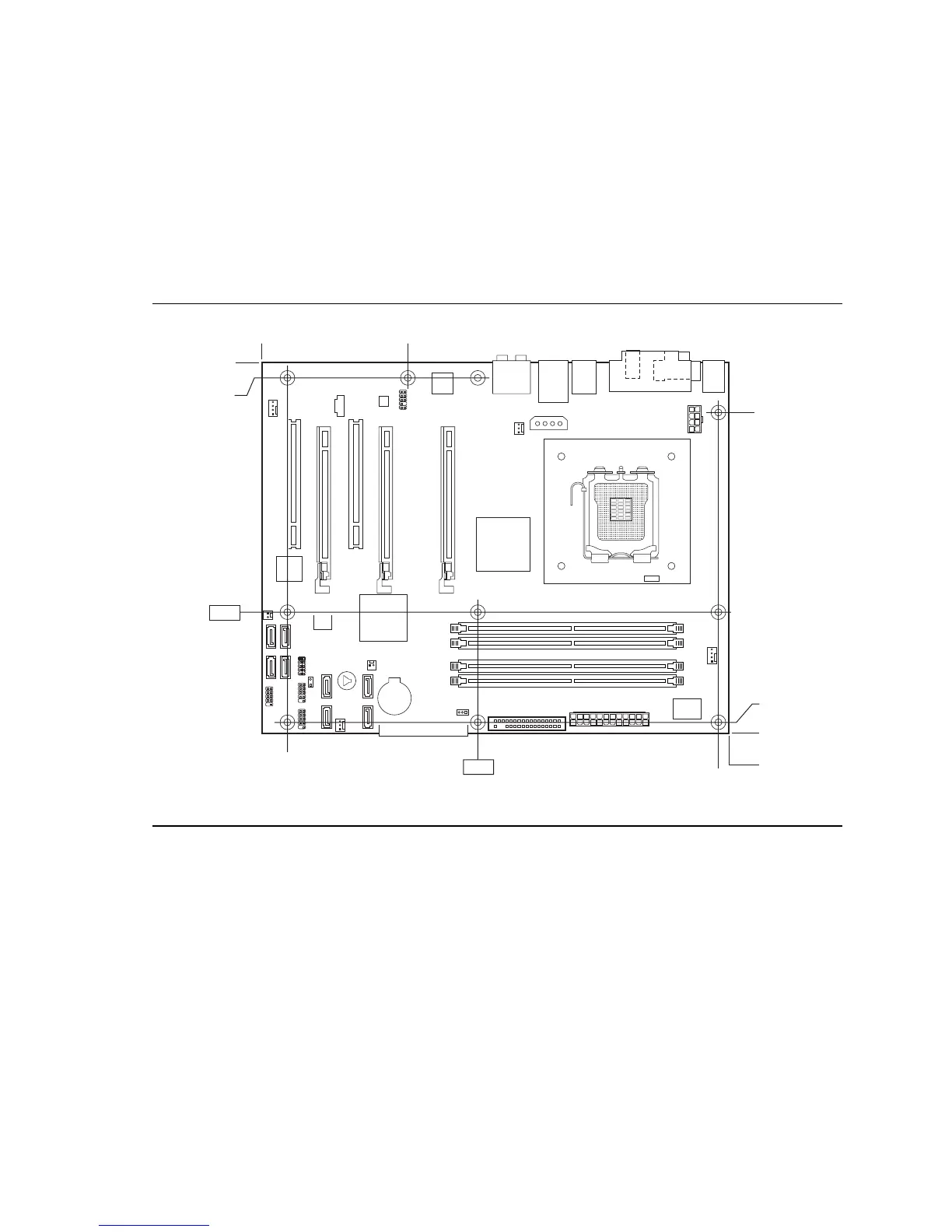

Figure 24. Board Dimensions
