Figure 10 is a block diagram of the 8-channel (7.1) audio subsystem.
82801
I/O Controller Hub
(ICH7)
OM18254
Intel
High Definition
Audio Link
Sigmatel 9221
Audio Codec
Line Out/Retasking Jack
Front Panel Line Out
CD-ROM (optional)
Side Surround L-R/Line In/Retasking Jack
Mic In/Retasking Jack
S/PDIF
Surround Left-Right/Retasking Jack
Center and LFE/Retasking Jack
Front Panel Mic In

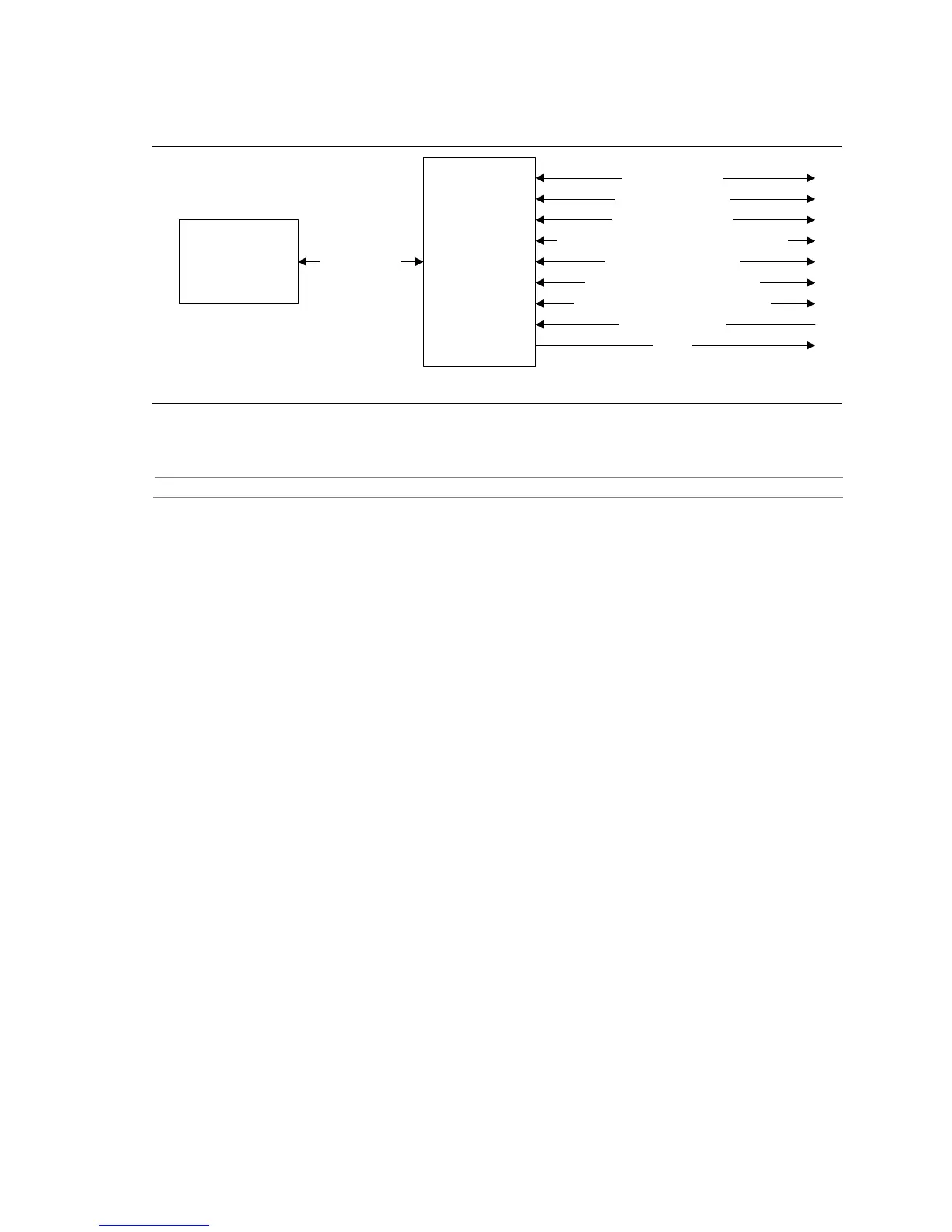

Figure 10. 8-channel (7.1) Audio Subsystem Block Diagram
For information about Refer to
The back panel audio connectors Section 2.7.1, page 55
