Intel Desktop Board DB75EN Technical Product Specification
28
1.9.2 LAN Subsystem Software
LAN software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining LAN software and drivers http://downloadcenter.intel.com
1.9.3 RJ-45 LAN Connector with Integrated LEDs

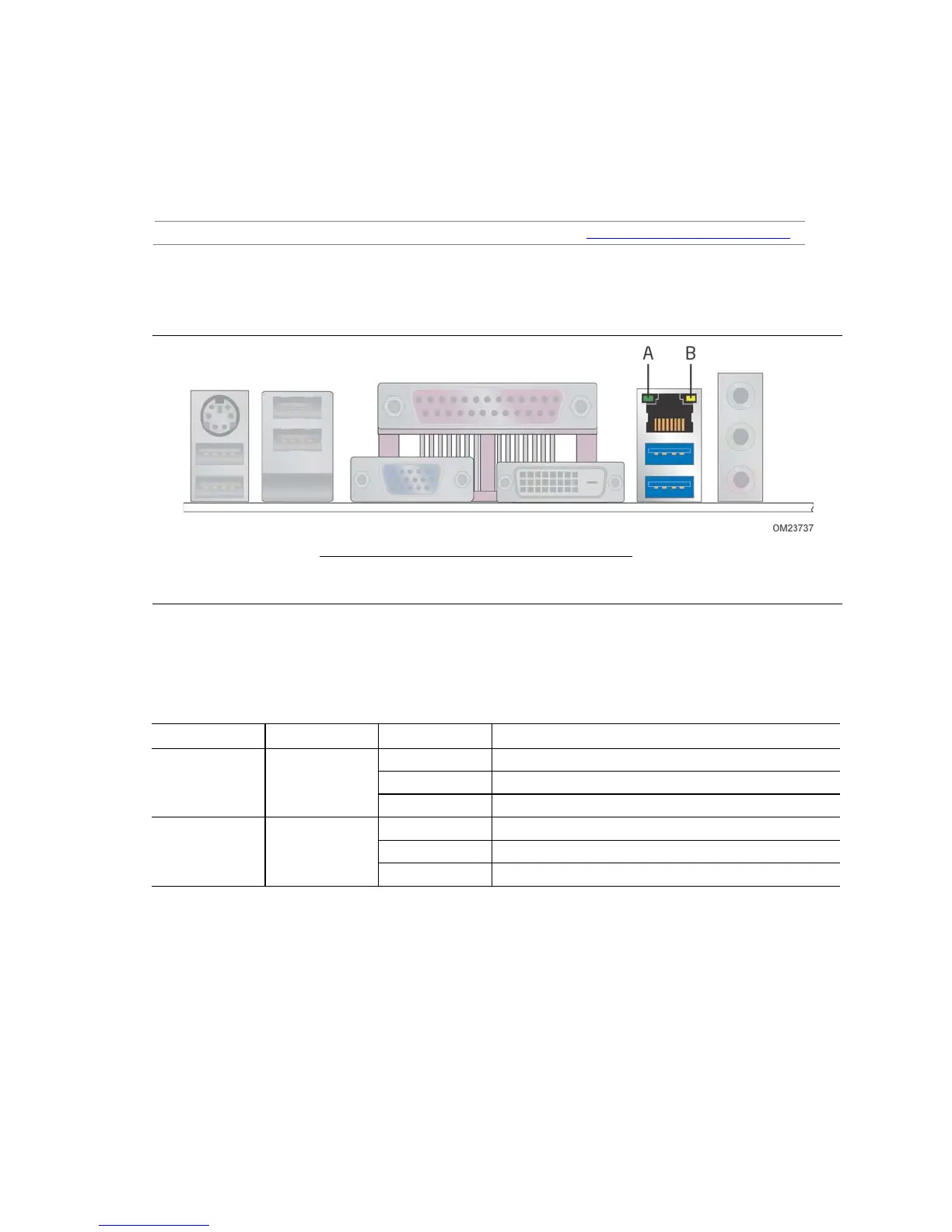

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5).
Item Description
A Link LED (Green)
B Data Rate LED (Green/Yellow)
Figure 5. LAN Connector LED Locations
Table 6 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 6. LAN Connector LED States
LED LED Color LED State Condition
Link Green
Off LAN link is not established.
On LAN link is established.
Blinking LAN activity is occurring.
Data Rate Green/Yellow
Off 10 Mb/s data rate is selected.
Green 100 Mb/s data rate is selected.
Yellow 1000 Mb/s data rate is selected.

Intel DB75EN Specifications

General

Chipset	Intel B75
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	5
SATA 6Gb/s Ports	1
USB 3.0 Ports	4
USB 2.0 Ports	8
Video Outputs	VGA, DVI-D
LAN	Intel 82579V
Form Factor	Micro ATX
Audio	Realtek ALC888S 8-Channel High Definition Audio CODEC
