Intel DB75EN User Manual

Intel Desktop Board DB75EN Technical Product Specification
86
5.1.4 China RoHS
Intel Desktop Board DB75EN is a China RoHS-compliant product.
The China Ministry of Information Industry (MII) stipulates that a material Self
Declaration Table (SDT) must be included in a product’s user documentation. The SDT
for Intel Desktop Board DB75EN is shown in Figure 18.

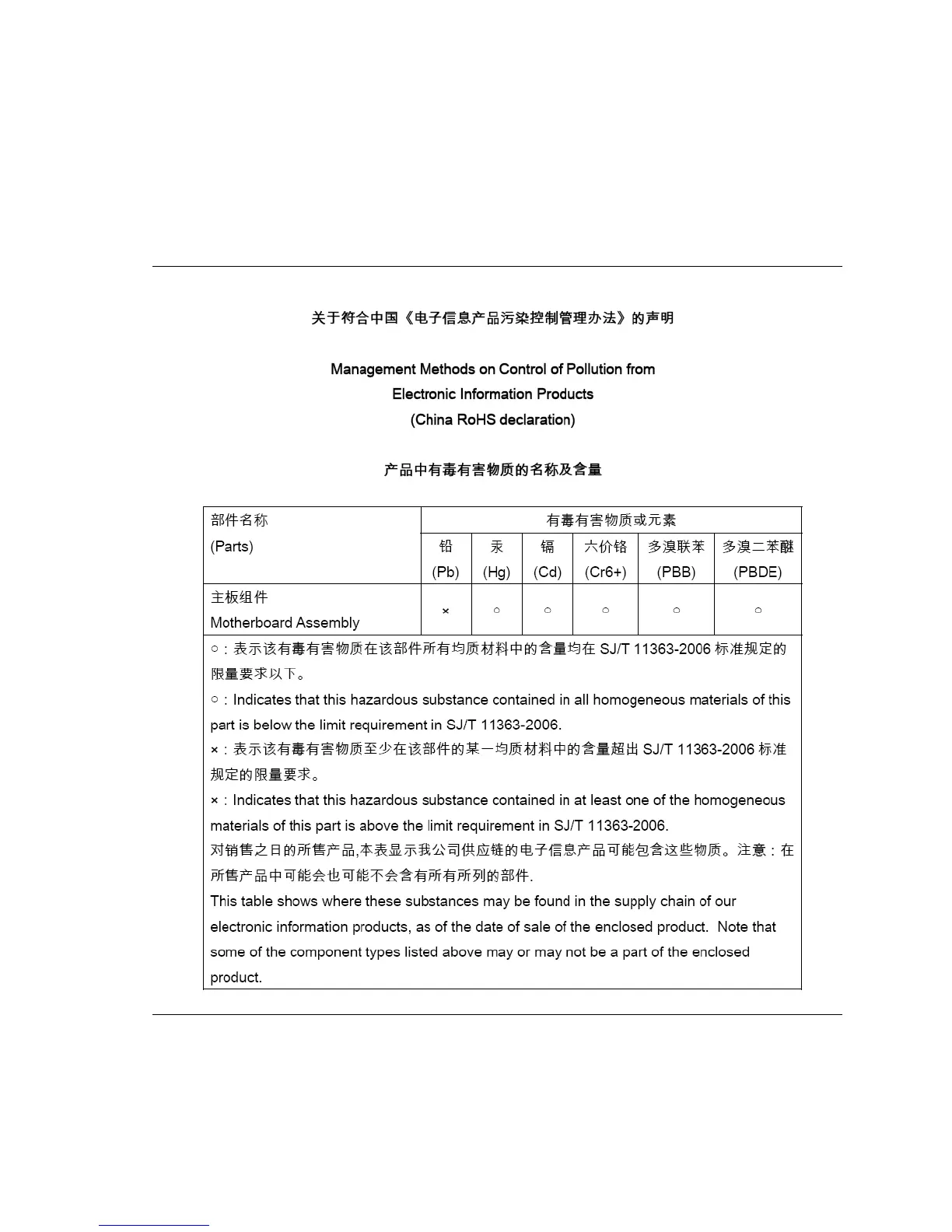

Figure 18. Intel Desktop Board DB75EN China RoHS Material
Self Declaration Table

Intel DB75EN Specifications

General

Chipset	Intel B75
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	5
SATA 6Gb/s Ports	1
USB 3.0 Ports	4
USB 2.0 Ports	8
Video Outputs	VGA, DVI-D
LAN	Intel 82579V
Form Factor	Micro ATX
Audio	Realtek ALC888S 8-Channel High Definition Audio CODEC
