1.11.5 Intel

Management Engine (Intel

ME) Software

and Drivers

Intel ME software and drivers are available from Intel’s World Wide Web site.

For information about Refer to

Obtaining Intel ME software and drivers Section 1.2 on page 16

1.11.5.1 Intel Management Engine “M” State LED

The board has a blue-colored Intel ME “M” state LED (see Figure 7). The “M” state is

based on Intel ME status, as follows:

• M0 = Intel ME is in full control in S0

• M3 = Intel ME is in full control in S3-S5 for “out of bound” Intel manageability

• Moff = Intel ME is in sleep state after Intel ME timeout has occurred

Table 7 shows expected behavior of the “M” state LED.

Table 7. Intel ME “M” State LED Behavior

Sx/M3 Sx/Moff S0/M0

LED blinks Off On

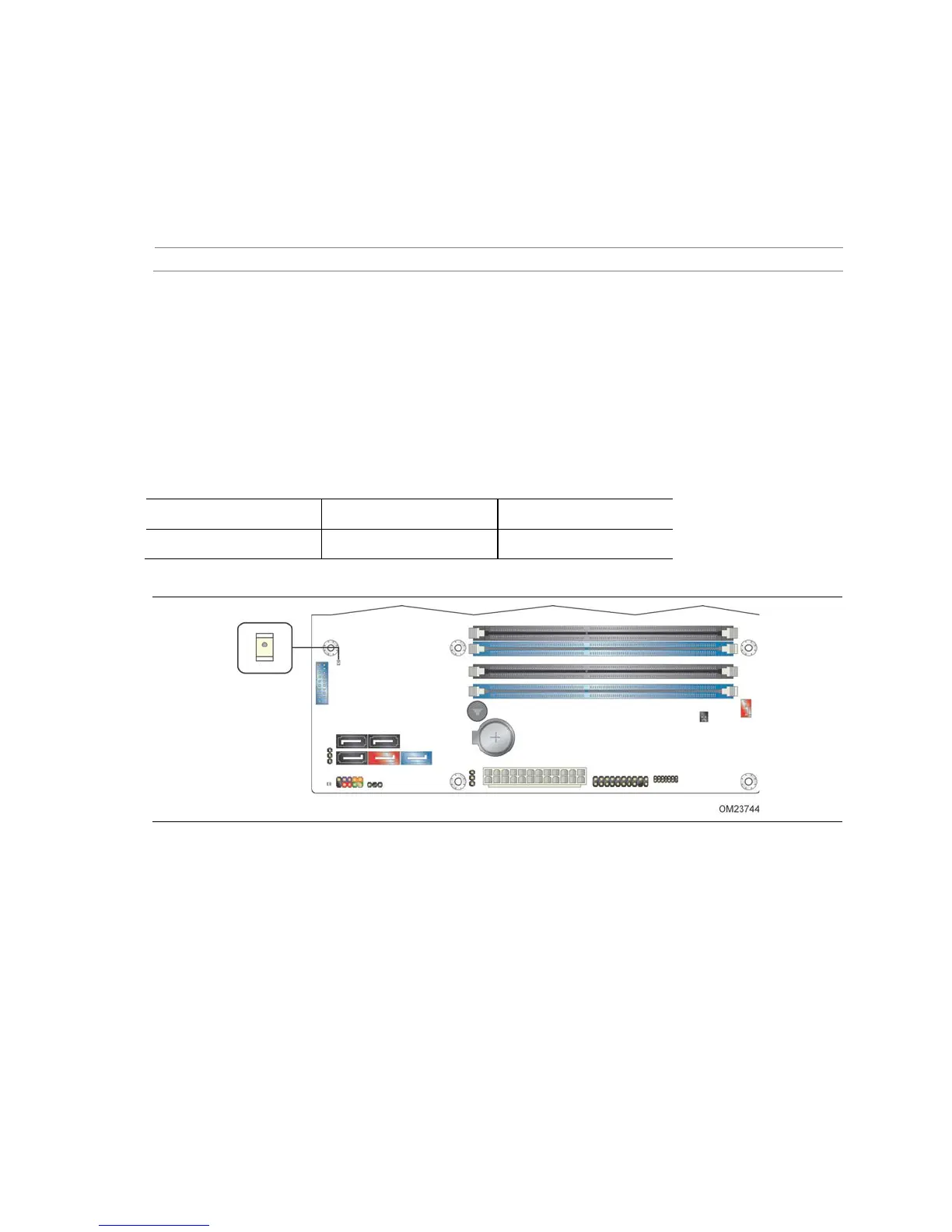

Figure 7. Location of the Intel ME “M” State LED

Questions and Answers:

Need help?

Do you have a question about the Intel DB75EN and is the answer not in the manual?

General

Chipset	Intel B75
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	5
SATA 6Gb/s Ports	1
USB 3.0 Ports	4
USB 2.0 Ports	8
Video Outputs	VGA, DVI-D
LAN	Intel 82579V
Form Factor	Micro ATX
Audio	Realtek ALC888S 8-Channel High Definition Audio CODEC
