Intel Desktop Board DB75EN Technical Product Specification
30
1.10.4 Thermal Monitoring
Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Thermal diode, located on the processor die
B Rear chassis fan header
C Processor fan header
D Front chassis fan header
E Thermal diode, located on the Intel B75 PCH

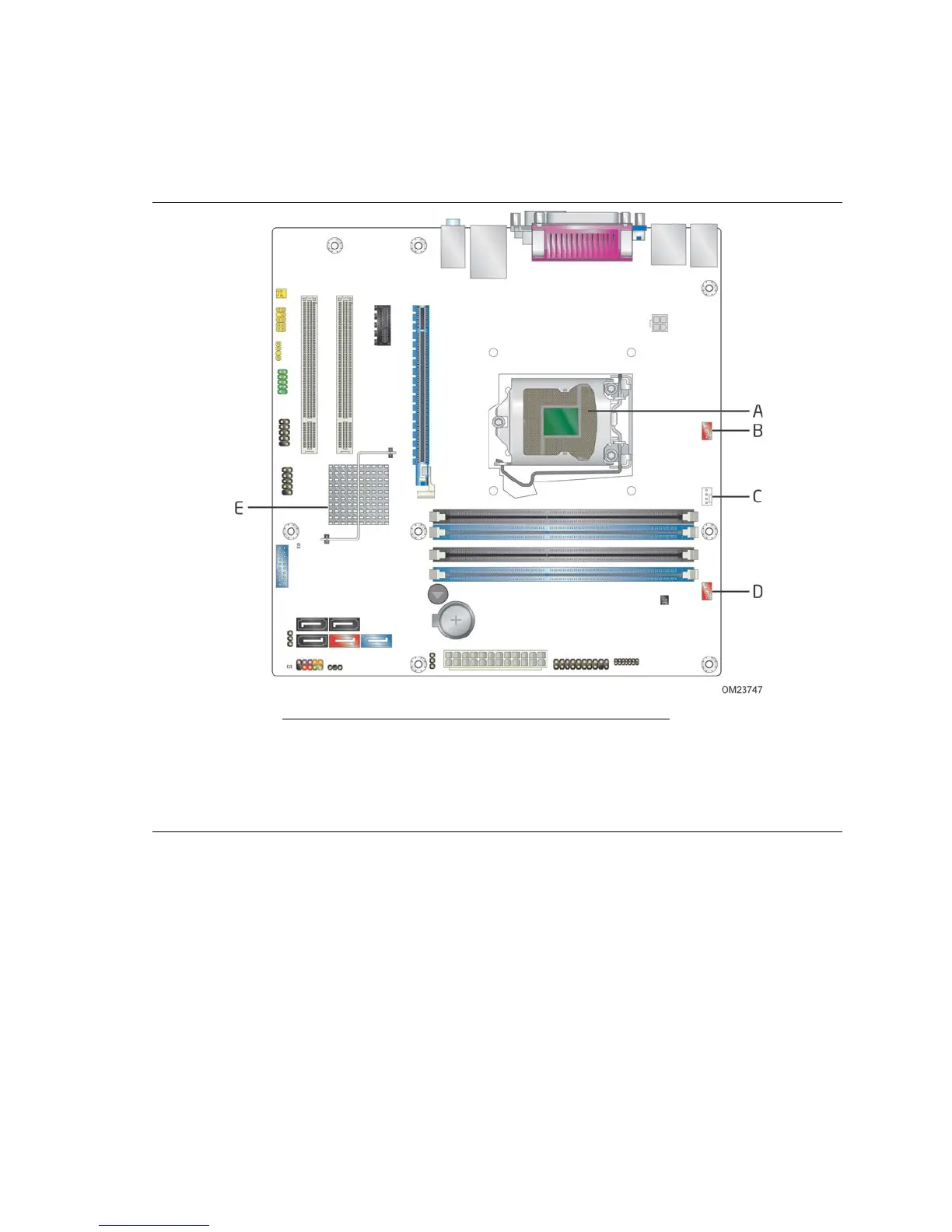

Figure 6. Thermal Sensors and Fan Headers
