CAUTION
Ensure that the ambient temperature does not exceed the board’s maximum operating
temperature. Failure to do so could cause components to exceed their maximum case
temperature and malfunction. For information about the maximum operating
temperature, see the environmental specifications in Section 2.9.
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit.
Failure to do so may result in damage to the voltage regulator circuit. The processor
voltage regulator area (shown in Figure 17) can reach a temperature of up to 120
o
C in
an open chassis.

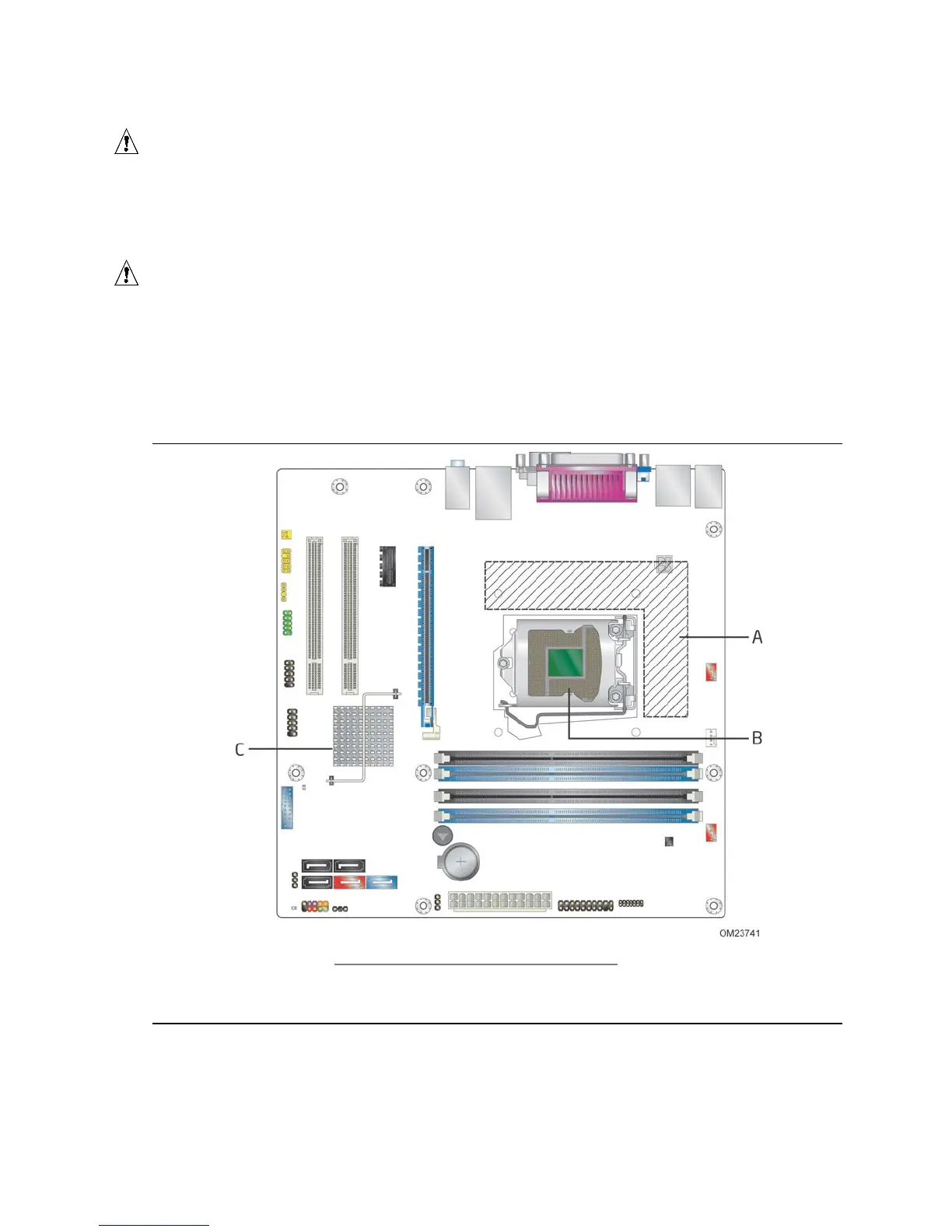

Figure 17 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel B75 Express Chipset
Figure 17. Localized High Temperature Zones

Intel DB75EN Specifications

General

Chipset	Intel B75
Socket	LGA 1155
Memory Slots	4
Max Memory	32 GB
Memory Type	DDR3
PCIe x16 Slots	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	5
SATA 6Gb/s Ports	1
USB 3.0 Ports	4
USB 2.0 Ports	8
Video Outputs	VGA, DVI-D
LAN	Intel 82579V
Form Factor	Micro ATX
Audio	Realtek ALC888S 8-Channel High Definition Audio CODEC
