Intel DG41TX - Connecting to Internal Headers; Internal Headers

Installing and Replacing Desktop Board Components
47
Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in “Before
You Begin” on page 29. Figure 21 shows the location of the internal headers.

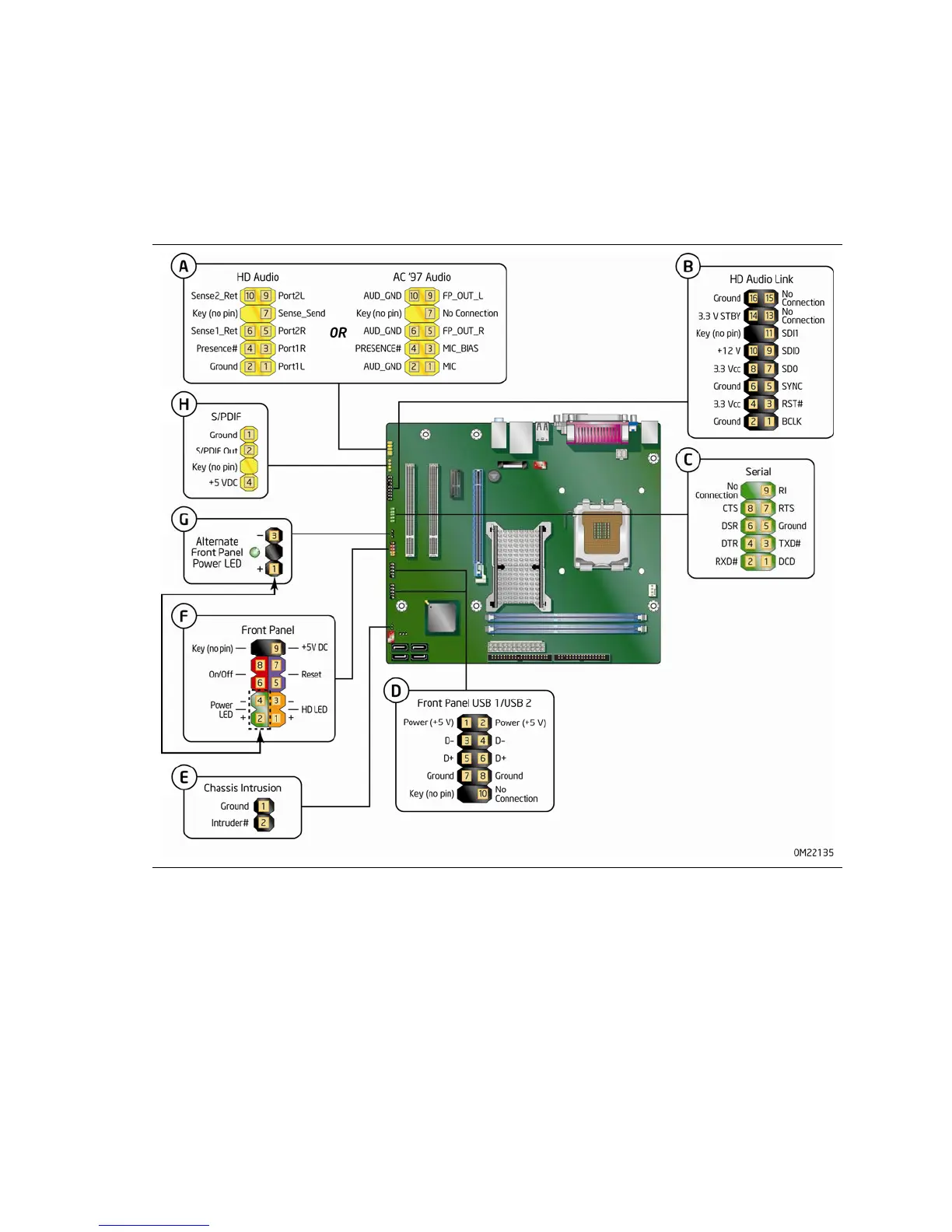

Figure 21. Internal Headers
