Intel Desktop Board DG41TX Product Guide
52
Connecting Chassis Fan and Power Supply
Cables
Chassis Fan Cables
Connect chassis fan cables to the chassis fan headers on the Desktop Board.
Figure 23 shows the location of the chassis fan headers.

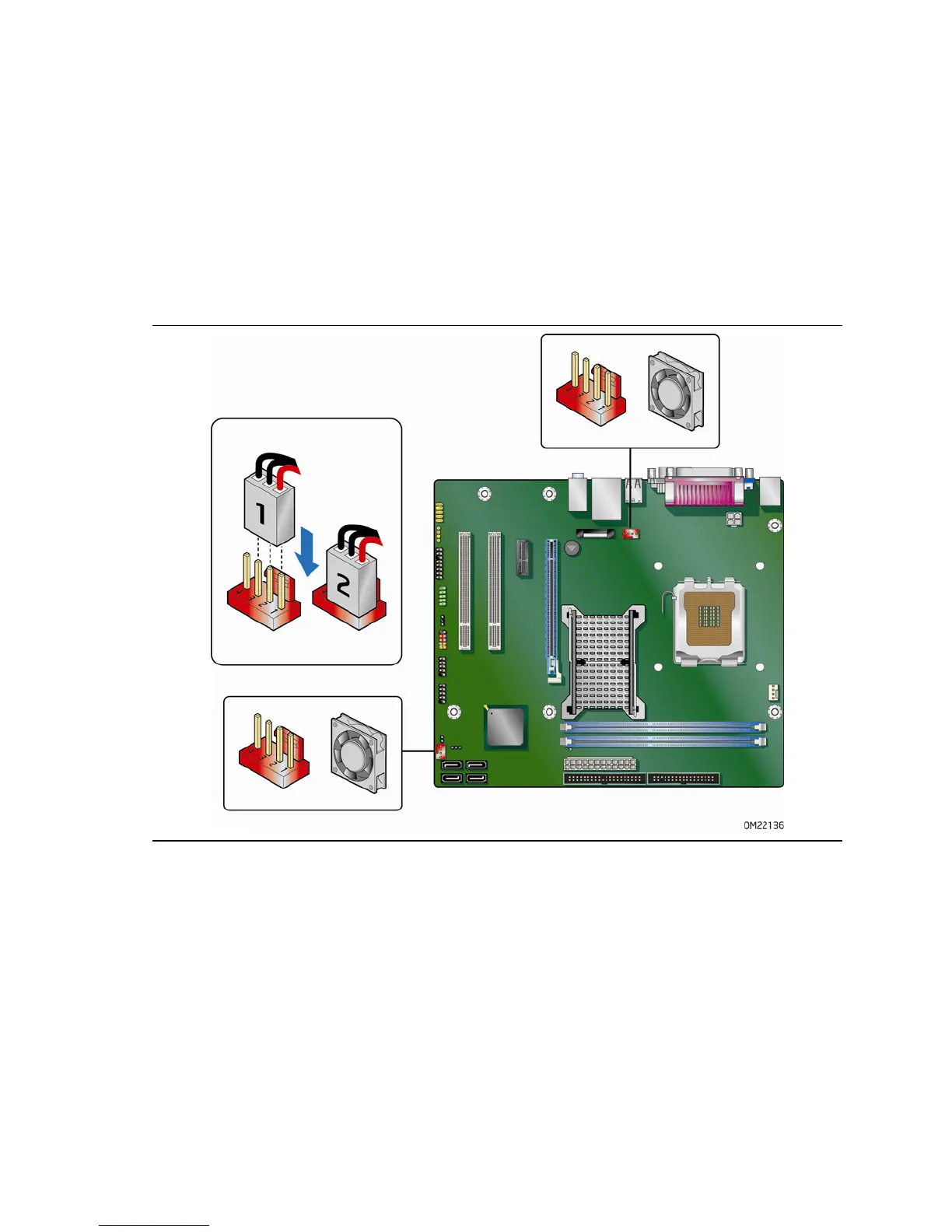

Figure 23. Location of the Chassis Fan Headers
