Intel Desktop Board DG41TX Product Guide
54
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
moving the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 25 shows the location of the Desktop Board’s BIOS confi
gurati
on jumper block.

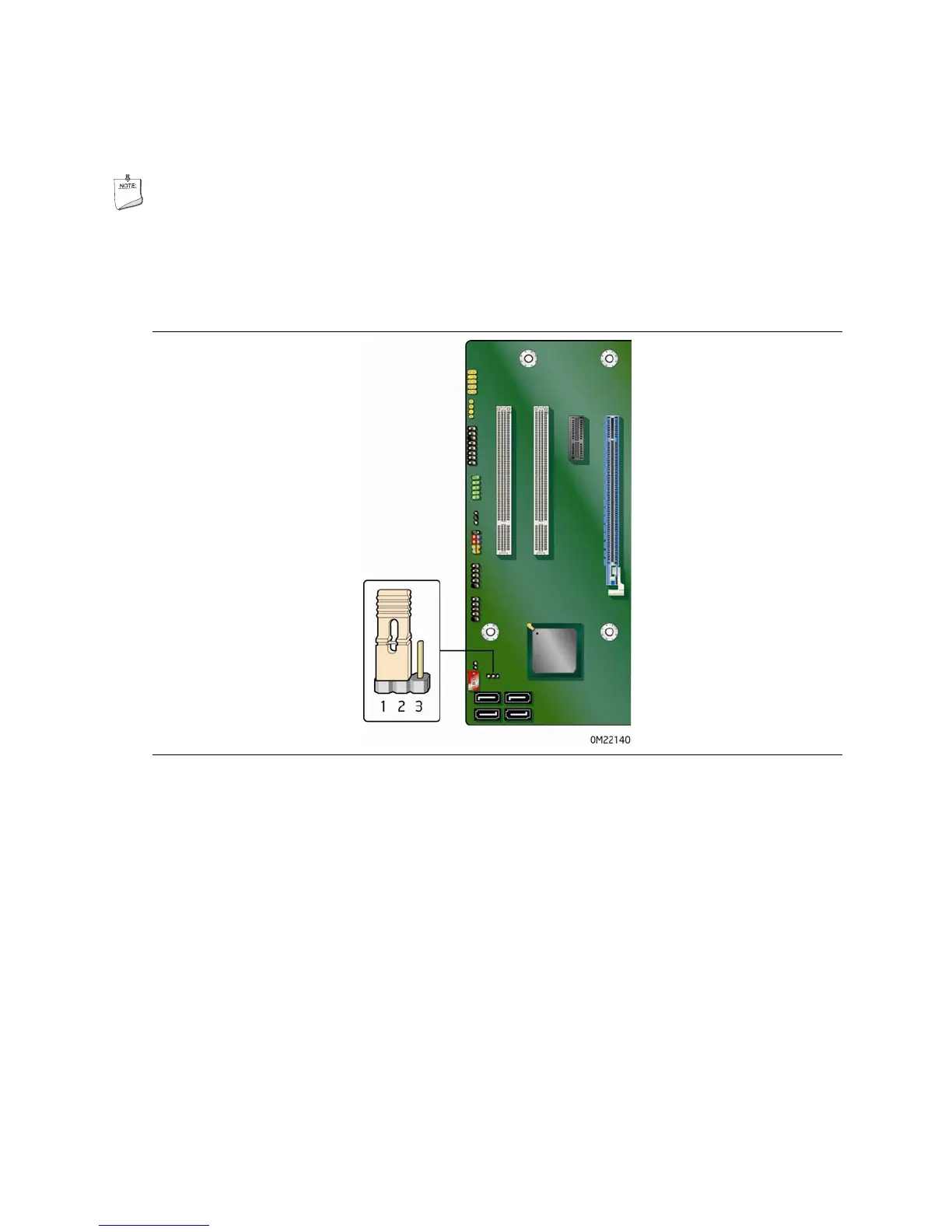

Figure 25. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables board configuration to be done in the BIOS
Setup program. Table 14 shows the jumper settings for the BIOS Setup program
modes.
