Intel Desktop Board DG41TX Product Guide
12
Desktop Board Components

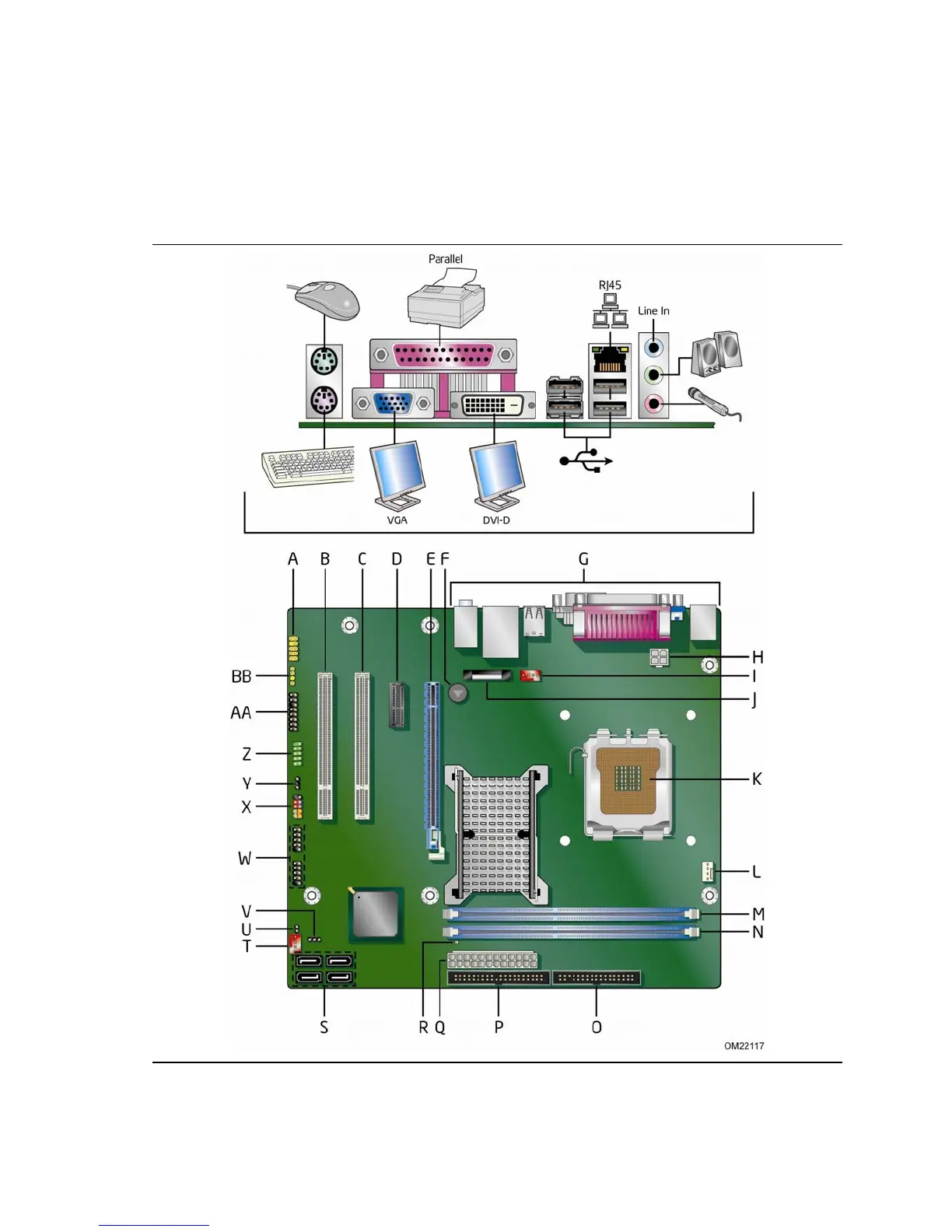

Figure 1 shows the approximate location of the major components on Intel Desktop
Board DG41TX.
Figure 1. Intel Desktop Board DG41TX Components
