安装和更换台式机主板组件
37
要安装 DIMM 内存模块,请按以下步骤操作:
1. 请遵守第 25 页“开始
之前”中的注意事项。
2. 关闭所有与计算机连接的外围设备。关闭计算机电源并断开交流电源电缆。
3. 拆下计算机箱盖,找到 DIMM 插槽(参见图 16)。
4. 如果 PCI Express x16 连接器中安装有全高 PCI Express 图形卡,请将此卡拆下,
以方便对 DIMM 插槽的操作。

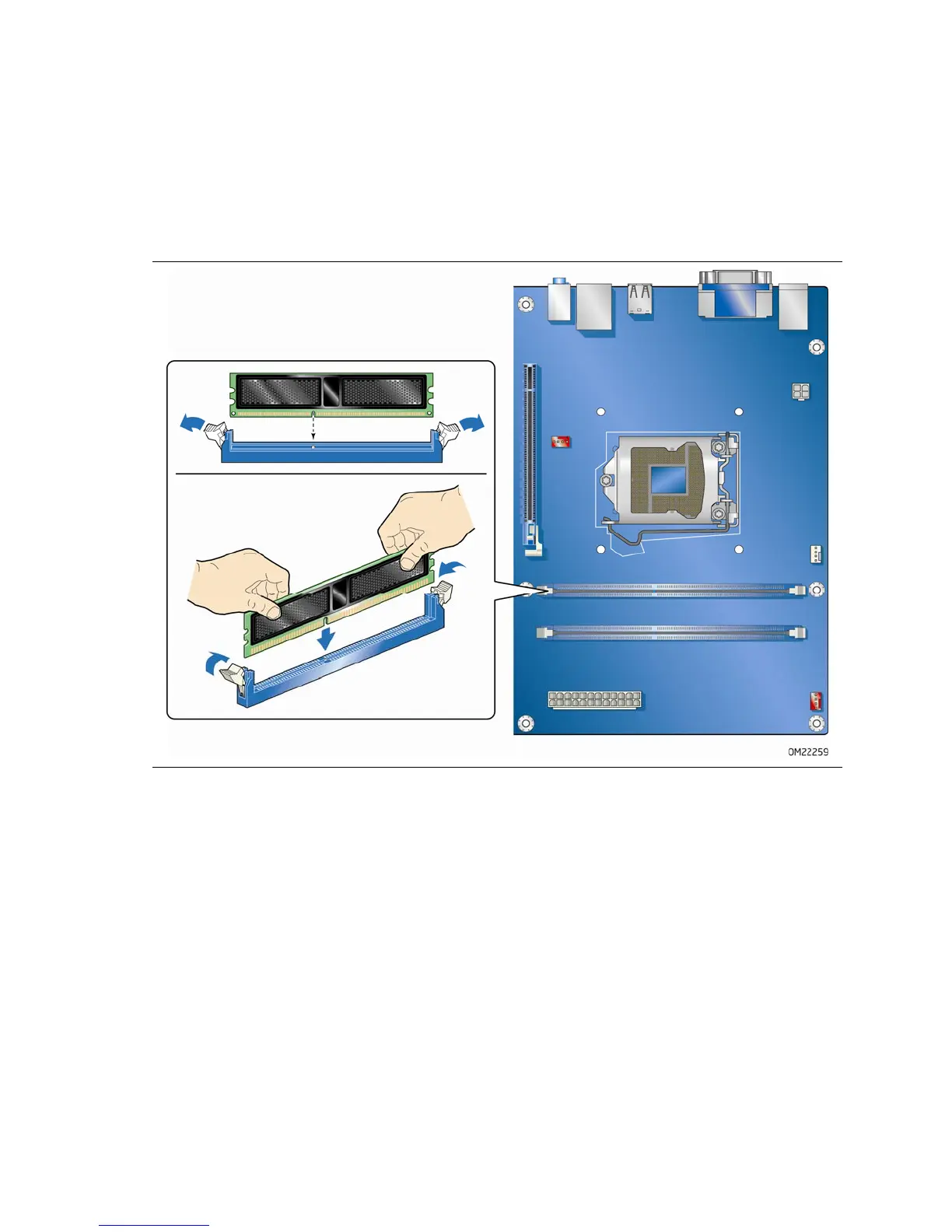

16. 安装 DIMM
5. 确保 DIMM 插槽两端的卡固销子向外推移到张开状态。
6. 用手握住 DIMM 的边缘,将其从防静电袋中取出。
7. DIMM 放置在插槽上。将 DIMM 底部边缘的小凹口与插槽上的卡固销子对齐
(参见图 16 中的插入图示)。
8. DIMM 的底边插入插槽。
9. 插入 DIMM 期间,按住 DIMM 的顶边向下推压,直到卡固销子将其卡固到位。
确保销子已牢牢夹紧。
10. 重新装回 PCI Express 图形卡(如在第 4 步中已拆下)。
11. 重新盖好计算机箱盖,然后重新连接好交流电源电缆。
