英特尔台式机主板 DH55PJ 产品指南
42
连接到内置接头连接器
在将电缆连接到任何内置接头连接器上之前,请首先阅读并遵守 25 页“开始之前”中的注意

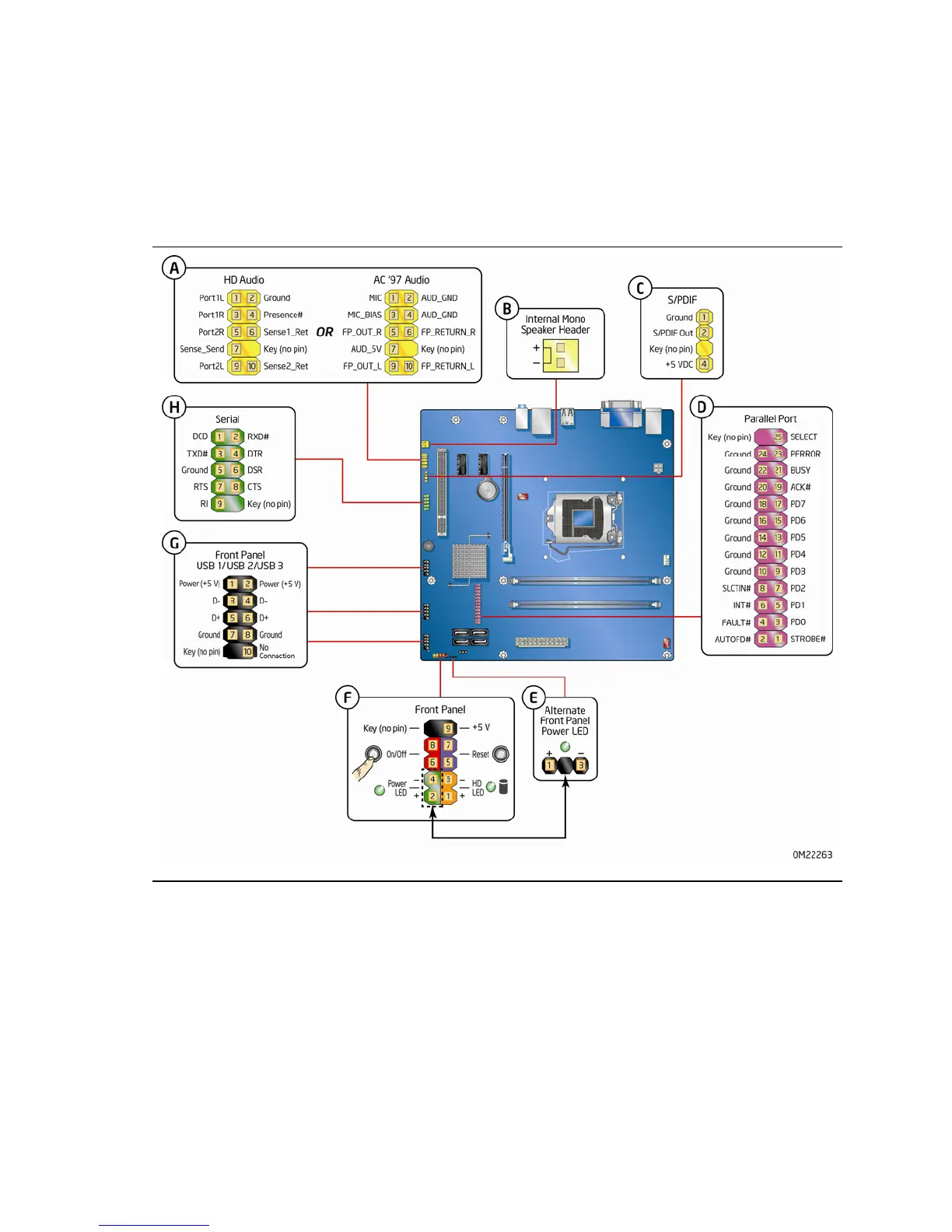

事项。图 20 显示了英特尔台式机主板 DH55PJ 各内置接头连接器和连接器的位置。
20. 内置接头连接器
