安装和更换台式机主板组件
41
连接串行 ATA (SATA) 电缆
SATA 电缆支持串行 ATA 协议。使用每条电缆均可将一个内置 SATA 驱动器连接到本台式
机主板上。要使电缆正常工作:
1. 请遵守第 25 页“开始
之前”中的注意事项。
2. SATA 电缆的一端连接到主板上的 SATA 连接器上(图 19 中的 A),而将电缆的
另一端连接到 SATA 驱动器上(图 19 中的 B)。

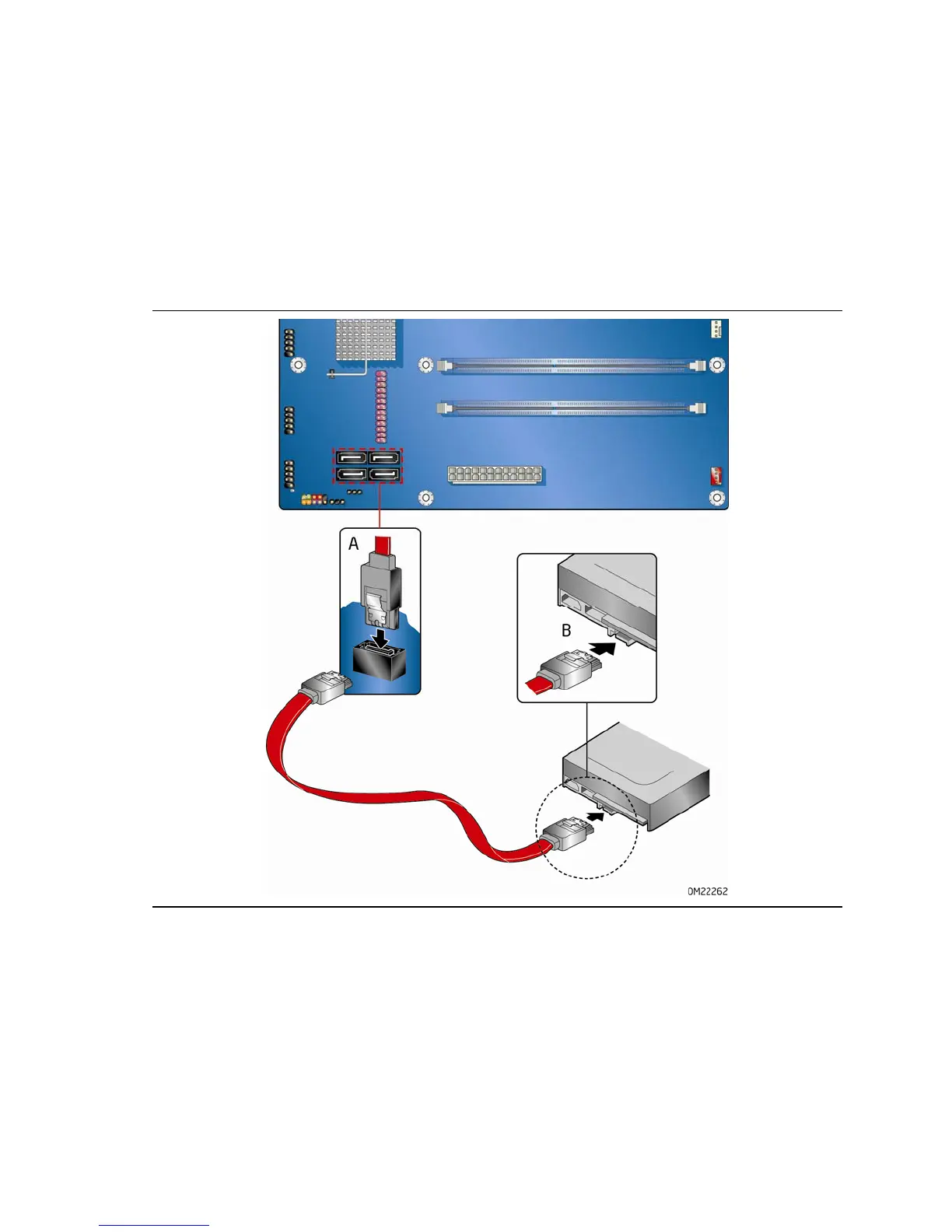

19. 连接串行 ATA 电缆
