英特尔台式机主板 DH55PJ 产品指南
40
拆卸 PCI Express x16 图形卡
要将 PCI Express x16 图形卡从连接器上拆卸下来,请按以下说明操作:
1. 请遵守第 25 页“开始
之前”中的注意事项。
2. 断开图形卡背面板连接器上的显示器电缆。
3. 从卡的金属支架上卸下螺丝(图 18 中的 A),使卡从机箱背面板上松脱。
4. 使用铅笔尖或类似物品,向下推压凹口中的卡弹出拉杆(图 18 中的 B)。
这将从连接器 (C) 中将卡释放。
5. 将卡垂直向上拉出,将其拆下。

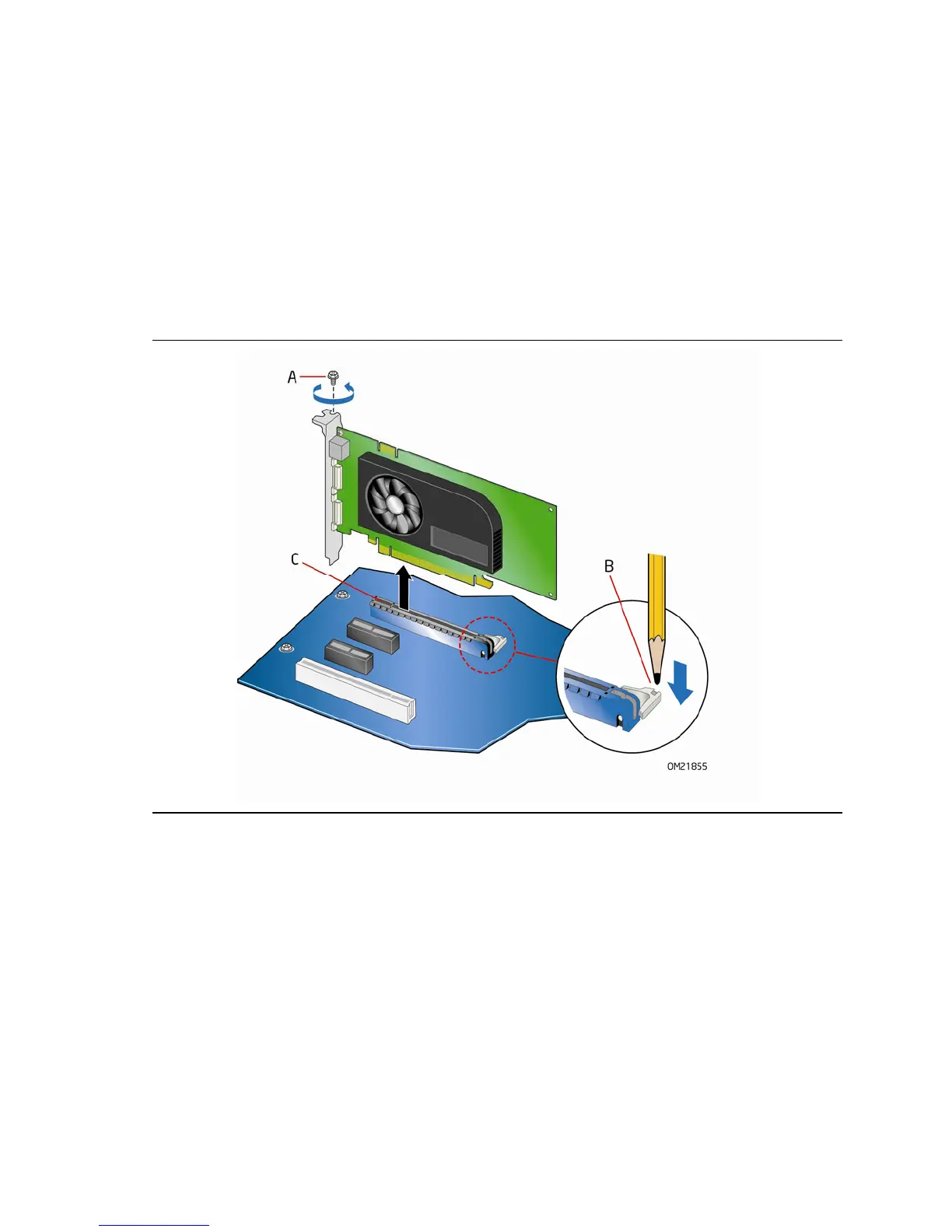

18. 拆卸 PCI Express x16 图形卡

Table of Contents

Other manuals for Intel DH55PJ

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intel DH55PJ and is the answer not in the manual?

Intel DH55PJ Specifications

General IconGeneral
Form FactorMicro ATX
SocketLGA 1156
Memory TypeDDR3
Maximum Memory8 GB
Memory Slots2
PCI Express x161
PCI Express x12
PCI Slots1
ChipsetIntel H55 Express
USB Ports12
Video OutputsVGA
SATA Ports6
