Intel DP67BG Performance Tuning Guide

Intel Desktop Board DP67BG Performance Tuning Guide
24
3.5.5.2 Memory Performance Options
The Memory Configuration BIOS page contains all the memory timing options that can
be adjusted.

NOTE
For each of the timings, except the multipliers, lower number settings correspond with
higher performance and potential memory system instability.

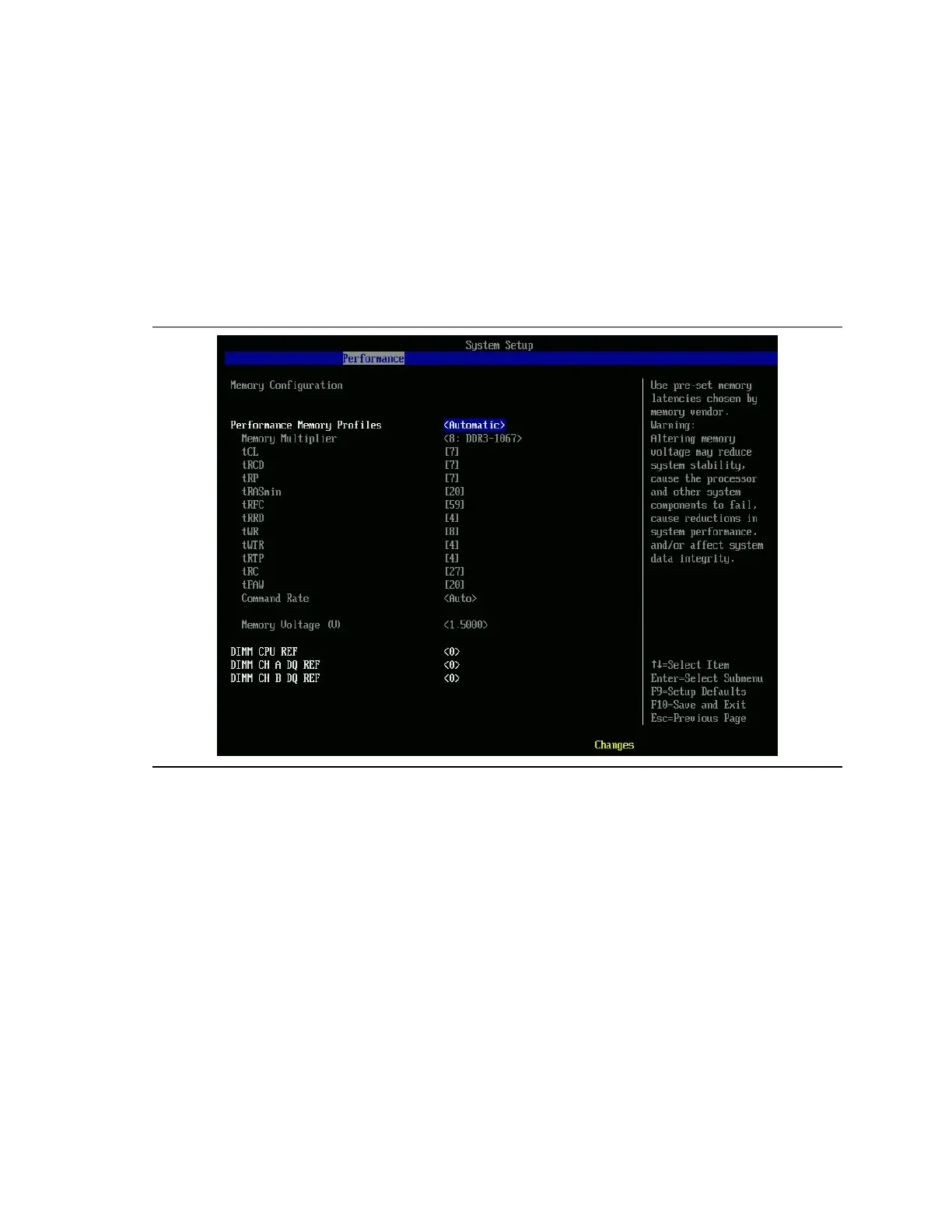

Figure 3.10. Memory Configuration Screen
3.5.5.3 Determining Memory Frequency
Increasing the host clock frequency will increase the memory speed, in addition to the
processor frequency. Note that the memory is not run directly from the host clock.
The memory clock frequency is generated by the processor using input from the host
clock signal received from the Intel P67 PCH. The default memory clock frequency
runs at 133.3 MHz. Increasing the system clock frequency affects the memory
frequency according to the following formula:
Memory frequency = (memory multiplier) * (percent increase in host clock) *
(133.3 MHz)

Intel DP67BG Specifications

General

Form Factor	ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32GB
PCI Express x16	2
PCI Express x1	3
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 Ports	12
USB 3.0 Ports	2
Audio Chipset	Realtek ALC892
Audio Channels	8
LAN Chipset	Intel 82579V
Max LAN Speed	10/100/1000Mbps
PS/2	1
eSATA	1
RAID Support	Yes
Chipset	Intel P67 Express
Memory Standard	DDR3 1333
S/PDIF Out	1
