4 Performance Tuning Examples
4.1 4.5 GHz Processor Speed Using Turbo Ratios

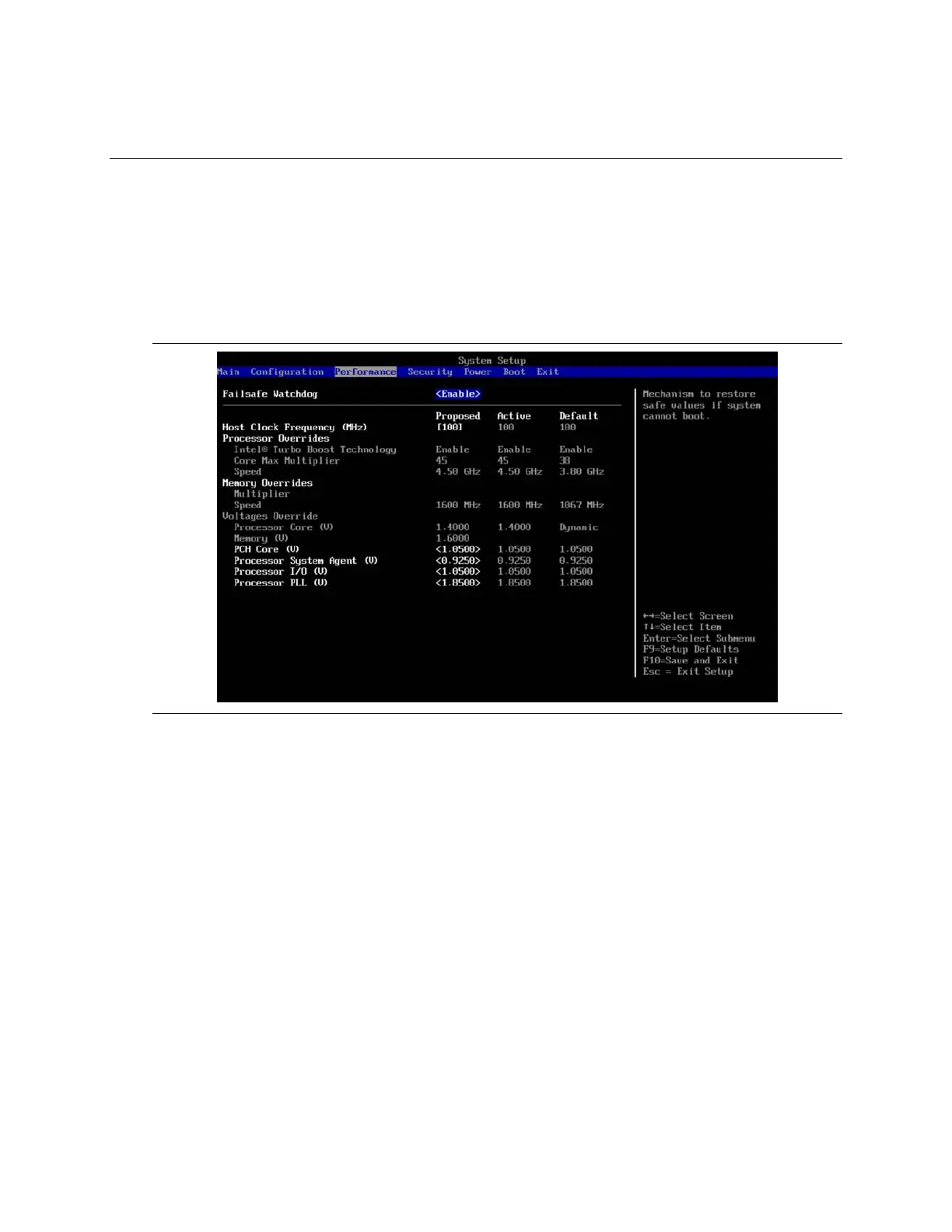

Figure 4.1 shows the BIOS settings to achieve a processor speed of 4.5 GHz. The
system clock has been left at the default value of 100 MHz. XMP profiles were used to
obtain a memory speed of 1600 MHz.
Figure 4.1. 4.5 GHz Processor Speed Using Turbo Ratios
4.2 4.72 GHz Processor Speed Using Turbo Ratios
and System Clock Changes
Figure 4.2 shows the BIOS settings to achieve a processor speed of 4.72 GHz. Turbo
ratios of 45 were set for all of the processor cores. The system base clock frequency
has been increased from the default value of 100 MHz to 105 MHz. XMP profiles were
used to obtain a memory speed of 1600 MHz. These settings are shown while running
the CPU Stress Test included with the Intel Extreme Tuning Utility shown in Figure 4.3.

Intel DP67BG Specifications

General

Form Factor	ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32GB
PCI Express x16	2
PCI Express x1	3
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 Ports	12
USB 3.0 Ports	2
Audio Chipset	Realtek ALC892
Audio Channels	8
LAN Chipset	Intel 82579V
Max LAN Speed	10/100/1000Mbps
PS/2	1
eSATA	1
RAID Support	Yes
Chipset	Intel P67 Express
Memory Standard	DDR3 1333
S/PDIF Out	1
