3.5.9 Archive Performance Settings
The Intel Desktop Board DP67BG BIOS allows storing one set of parameter settings
(profile) at any given time. If several groups of performance settings are needed by
the user, the Intel Extreme Tuning Utility allows storing multiple profiles as shown in
Figure 3.11. Performance parameter setti
ngs can be entered into the Intel Extreme
Tuning Utility using Manual mode. Selecting “Profiles” from the left menu brings up a
window that allows the user to enter a profile name where the performance parameter
settings will be stored. These profiles can be invoked by starting the Intel Extreme
Tuning Utility and loading the desired profile. The most recently loaded profile will
remain resident in the BIOS, until changes are made by the user.

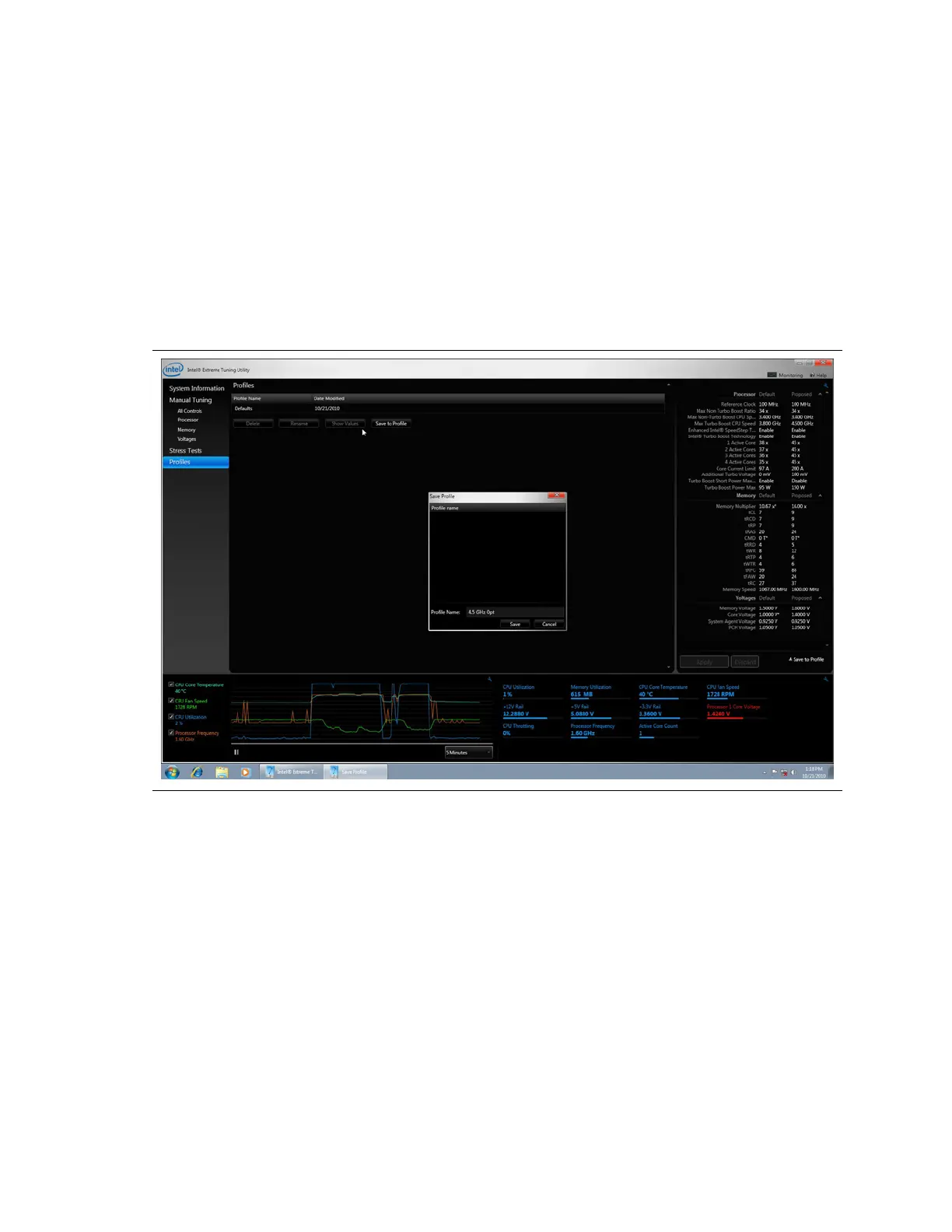

Figure 3.11. Using the Intel Extreme Tuning Utility for Storing
Performance Profiles

Intel DP67BG Specifications

General

Form Factor	ATX
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32GB
PCI Express x16	2
PCI Express x1	3
SATA 3Gb/s	4
SATA 6Gb/s	2
USB 2.0 Ports	12
USB 3.0 Ports	2
Audio Chipset	Realtek ALC892
Audio Channels	8
LAN Chipset	Intel 82579V
Max LAN Speed	10/100/1000Mbps
PS/2	1
eSATA	1
RAID Support	Yes
Chipset	Intel P67 Express
Memory Standard	DDR3 1333
S/PDIF Out	1
