Intel Desktop Board DQ35JO Product Guide
38

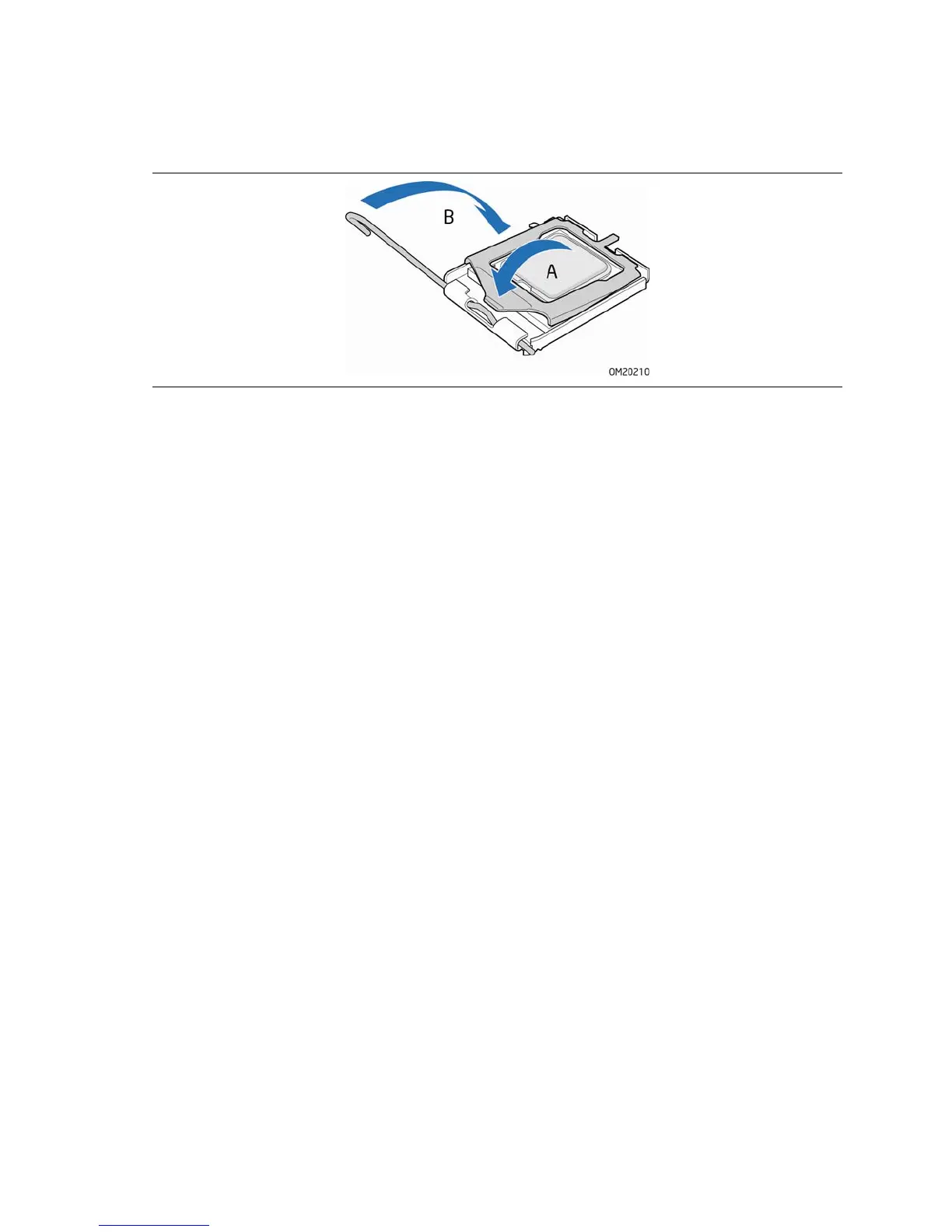

7. Pressing down on the load plate (Figure 12, A), close and engage the socket lever
(Figure 12, B).
Figure 12. Close the Load Plate
Installing the Processor Fan Heat Sink
Desktop Board DQ35JO has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual.
