Installing and Replacing Desktop Board Components
55
NOTE
The back panel audio line out connector is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified)
speakers are connected to this output.
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the 3-pin chassis fan headers on the Desktop Board.
Figure 26 shows the location of the chassis fan headers.

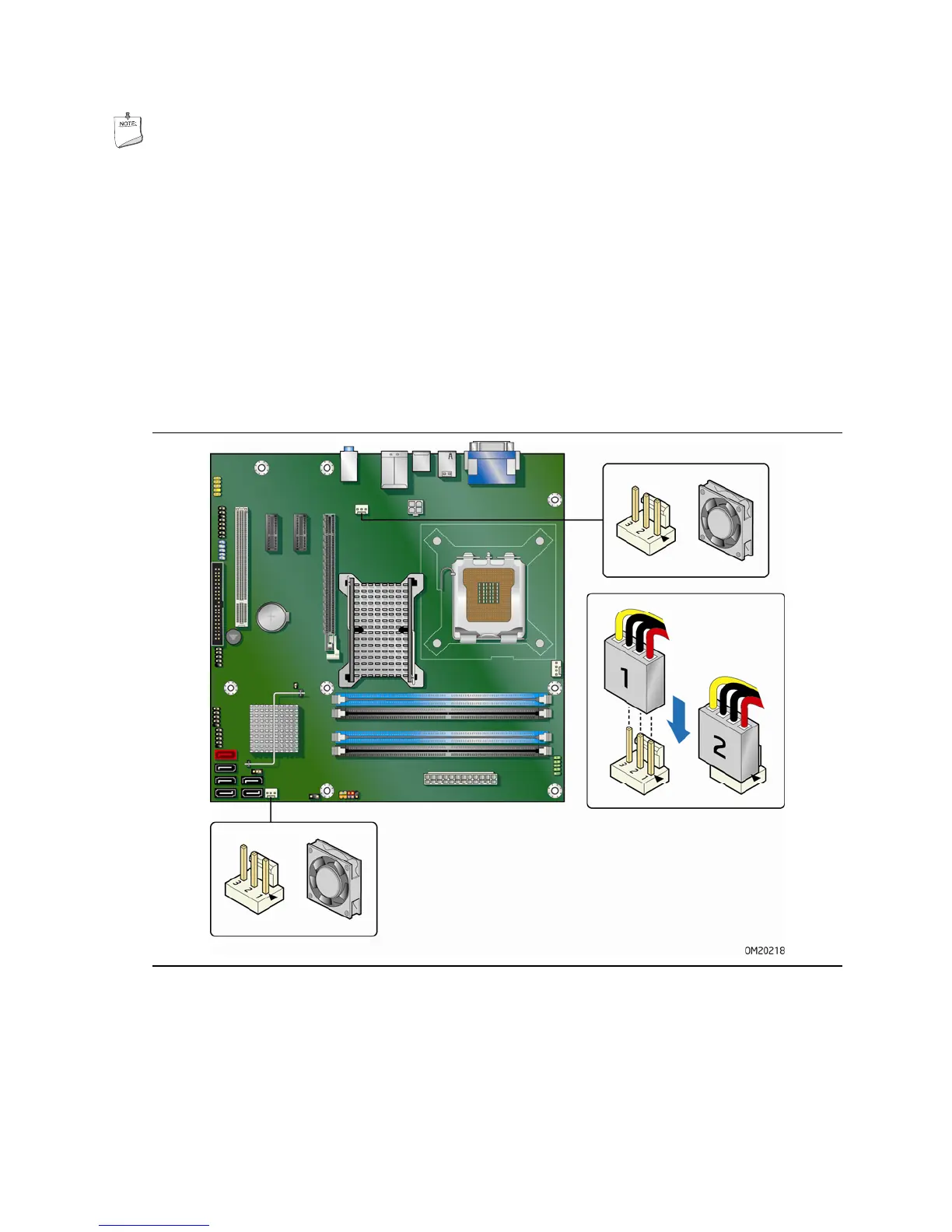

Figure 26. Location of the Chassis Fan Headers
