Connecting to the Internal Headers
Before connecting cables to the internal headers, observe the precautions in “Before
You Begin” on page 31. Figure 24 shows the location of the internal headers.
Item Description Item Description
A HD Audio Link E Front Panel
B Front Panel Audio F
Alternate Front Panel Power LED
C IEEE 1394a G
USB 2.0 (3)
D Serial Port H
Chassis intrusion

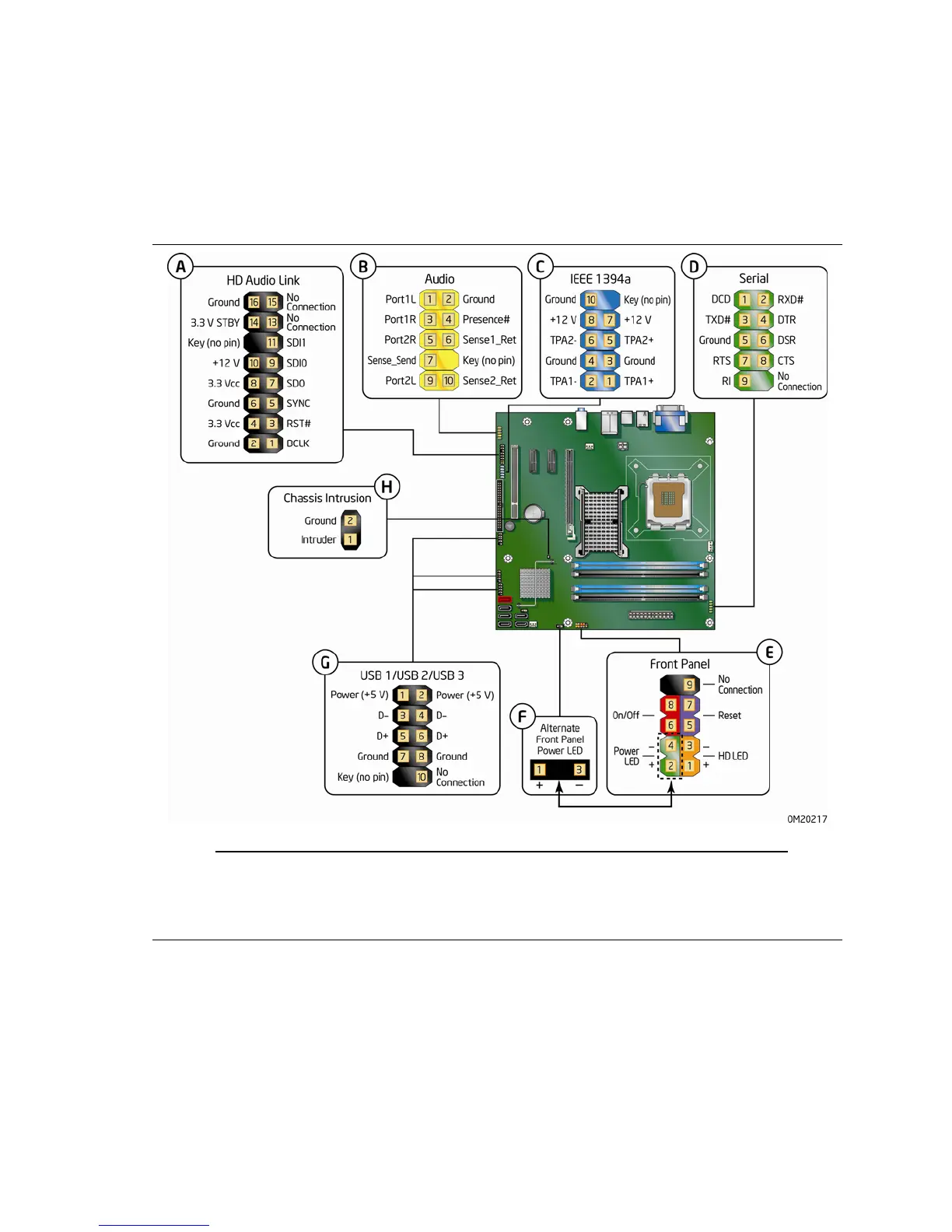

Figure 24. Internal Headers
