Installing and Replacing Desktop Board Components
49
Installing the External Serial ATA Adapter
Bracket
If you are connecting the external Serial ATA (eSATA) adapter bracket to the Desktop
Board, follow these instructions (see Figure 23):
1. Observe the precautions in “Before You Begin” on page
31.
2. Attach t
he connector at the end of the adapter cable to the red SATA connector
(Figure 23, B) on the Desktop Board.
3. Secure the
bracket to
the chassis back panel with a screw (Figure 23, A).
NOTE
Do not use the red external SATA (eSATA) connector to connect to an internal
SATA drive.

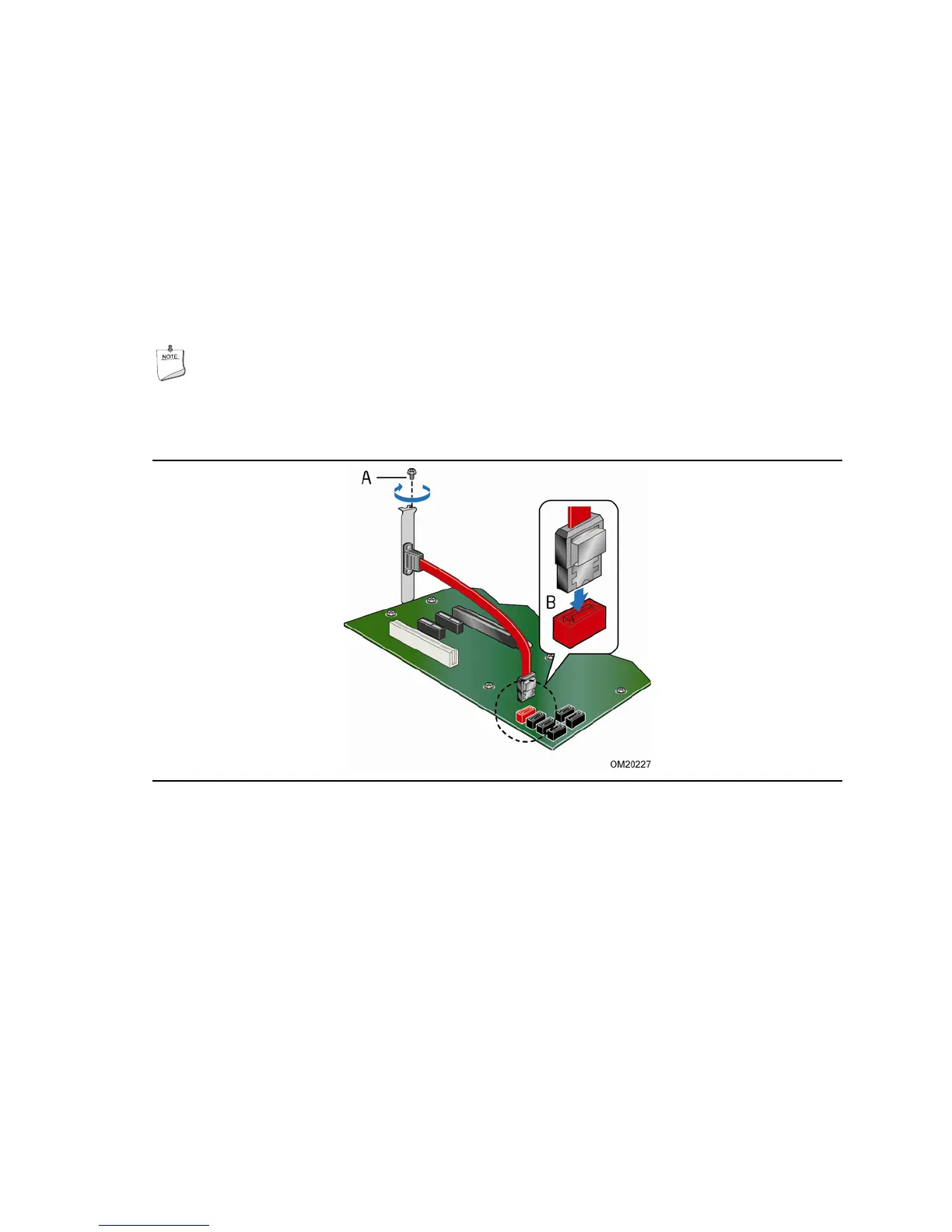

Figure 23. Connecting the External Serial ATA Adapter Bracket
