Installing and Replacing Desktop Board Components
43
NOTE
Memory must be installed in the Channel A, DIMM 0 socket to enable Intel Quiet
System Technology.
To install a DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 31.
2. Turn off all peripheral devices connected to the computer.
Turn off the computer
and disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see Figure 18).

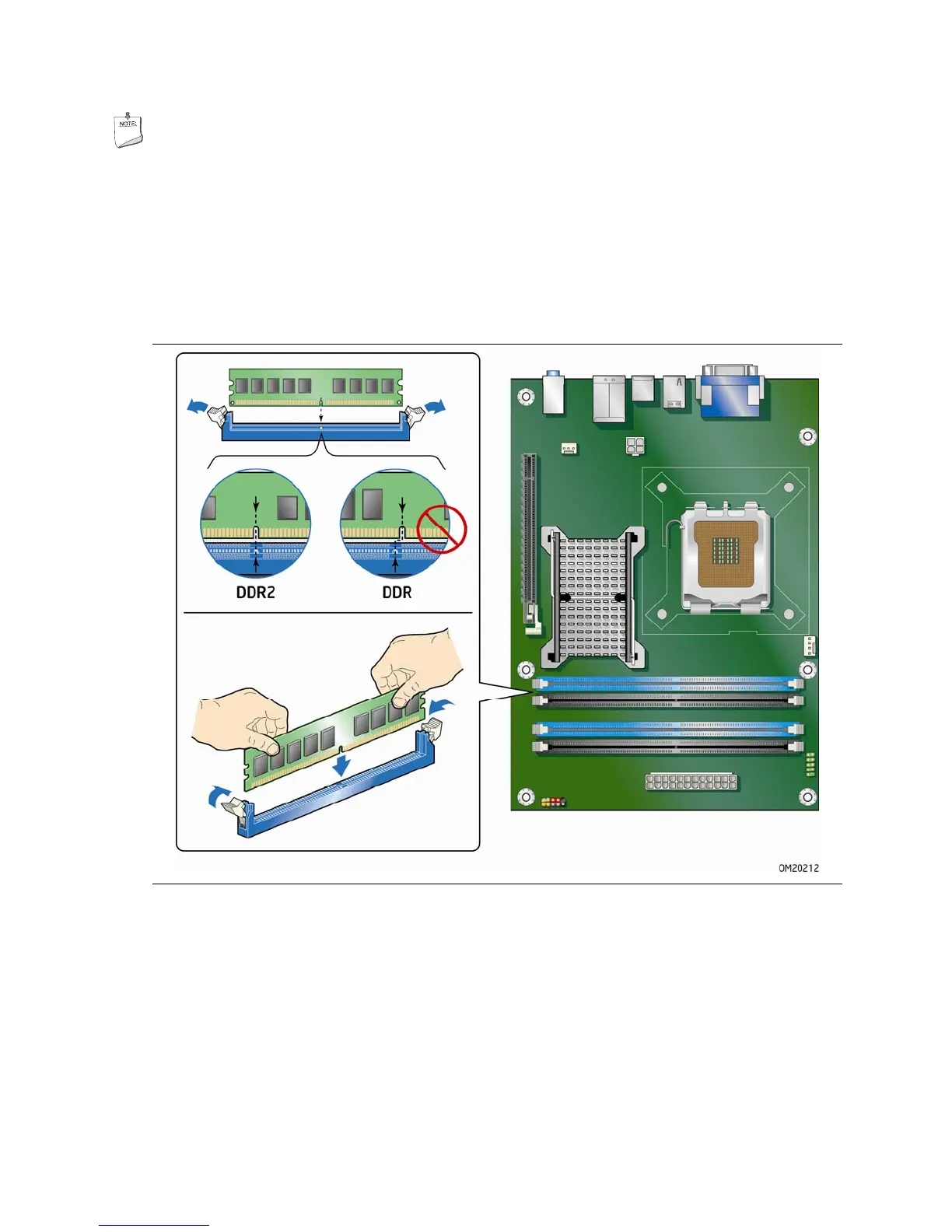

Figure 18. Installing a DIMM
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the small notch at the bottom edge of
the DIMM with the keys in the socket (see inset in Figure 18).

Intel DQ35JO - Desktop Board Executive Series Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Slots	4
Maximum Memory	8 GB
USB Ports	8 x USB 2.0
Supported Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Video Outputs	VGA, DVI
LAN	10/100/1000 Mbps
BIOS	AMI BIOS
Chipset	Intel Q35 Express
Memory Type	DDR2
Memory Standard	DDR2 800/667 MHz
Expansion Slots	1 x PCI-E x16, 1 x PCI, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x PATA
Audio	Realtek ALC888 High Definition Audio CODEC
Ethernet	Intel 82566 Gigabit Ethernet
Graphics	Intel Graphics Media Accelerator 3100
