Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual.
Installing and Removing Memory
NOTE
To be fully compliant with all applicable Intel SDRAM memory specifications, the board
requires DIMMs that support the Serial Presence Detect (SPD) data structure.
Desktop board DQ35JO has four 240-pin DDR2 DIMM sockets arranged as DIMM 0 and
DIMM 1 in both Channel A and Channel B.
NOTE
Regardless of the memory configuration used (dual or single channel), Channel A,
DIMM 0 must always be populated. This is a requirement of the Intel Management
Engine feature.
Guidelines for Dual Channel Memory Configuration
Before installing DIMMs, read and follow these guidelines for dual channel
configuration.
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 14) in DIMM 0
(blue) of channels A and B.

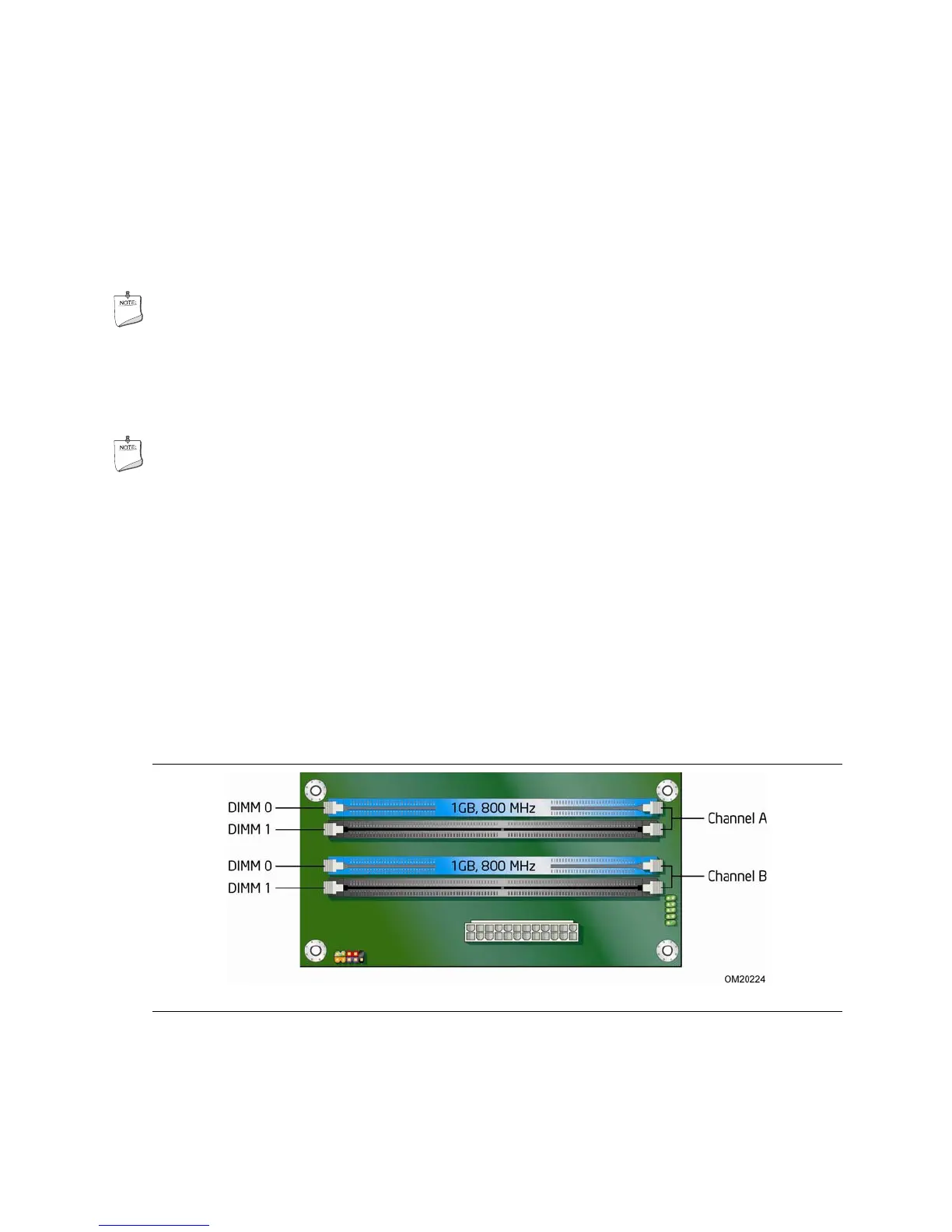

Figure 14. Dual Channel Memory Configuration with Two DIMMs

Intel DQ35JO - Desktop Board Executive Series Motherboard Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 775
Memory Slots	4
Maximum Memory	8 GB
USB Ports	8 x USB 2.0
Supported Processors	Intel Core 2 Quad, Core 2 Duo, Pentium, Celeron
Video Outputs	VGA, DVI
LAN	10/100/1000 Mbps
BIOS	AMI BIOS
Chipset	Intel Q35 Express
Memory Type	DDR2
Memory Standard	DDR2 800/667 MHz
Expansion Slots	1 x PCI-E x16, 1 x PCI, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x PATA
Audio	Realtek ALC888 High Definition Audio CODEC
Ethernet	Intel 82566 Gigabit Ethernet
Graphics	Intel Graphics Media Accelerator 3100
