Intel Desktop Board DQ35JO Product Guide
54
Connecting to the USB 2.0 Headers
Before connecting to the USB 2.0 headers, observe the precautions in "Before You
Begin" on page 31. See Figure 24, G on page 50 for the location of the three USB 2.0
headers. Table 13 shows the pin assignments for each USB 2.0
header.
Each USB
header can be used to connect two USB devices.
Table 13. USB 2.0 Header Signal Names
USB Port A USB Port B
Pin Signal Name Pin Signal Name
1 Power (+5 V) 2 Power (+5 V)
3 D- 4 D-
5 D+ 6 D+
7 Ground 8 Ground
9 Key 10 No Connection
Note: USB ports may be assigned as needed.
NOTE
Computer systems that have an unshielded cable attached to a USB port might not
meet FCC Class B requirements, even if no device or a low-speed USB device is
attached to the cable. Use a shielded cable that meets the requirements for a
full-speed USB device.
Connecting to the Audio System
After installing the RealTek audio driver from the Intel Express Installer DVD-ROM, the
multi-channel audio feature can be enabled. Figure 25 shows the back panel audio
connectors.
The default connector assignments are shown in the table.
Item Description
A Audio line in
B Audio line out
C Mic in

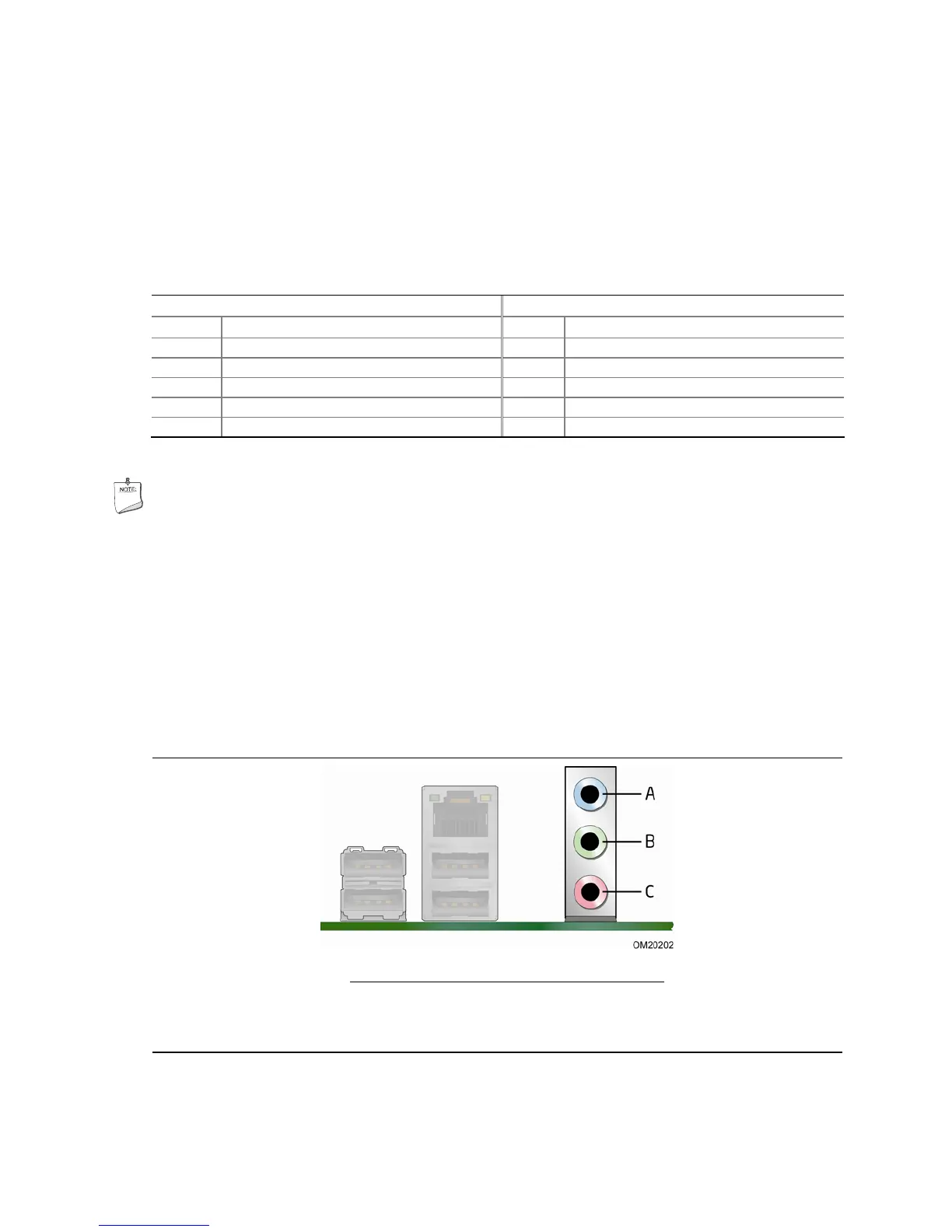

Figure 25. Back Panel Audio Connectors
