Intel Desktop Board DQ35JO Product Guide
64
To replace the battery, follow these steps:
1. Observe the precautions in "Before You Begin" (see page 31).
2. Turn off all peripheral devices connected to th
e computer. Disconnect the
computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see Figure 29).
5. Wi
th a medi
um flat-bladed screwdriver, gently pry the battery free from its
connector. Note the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.

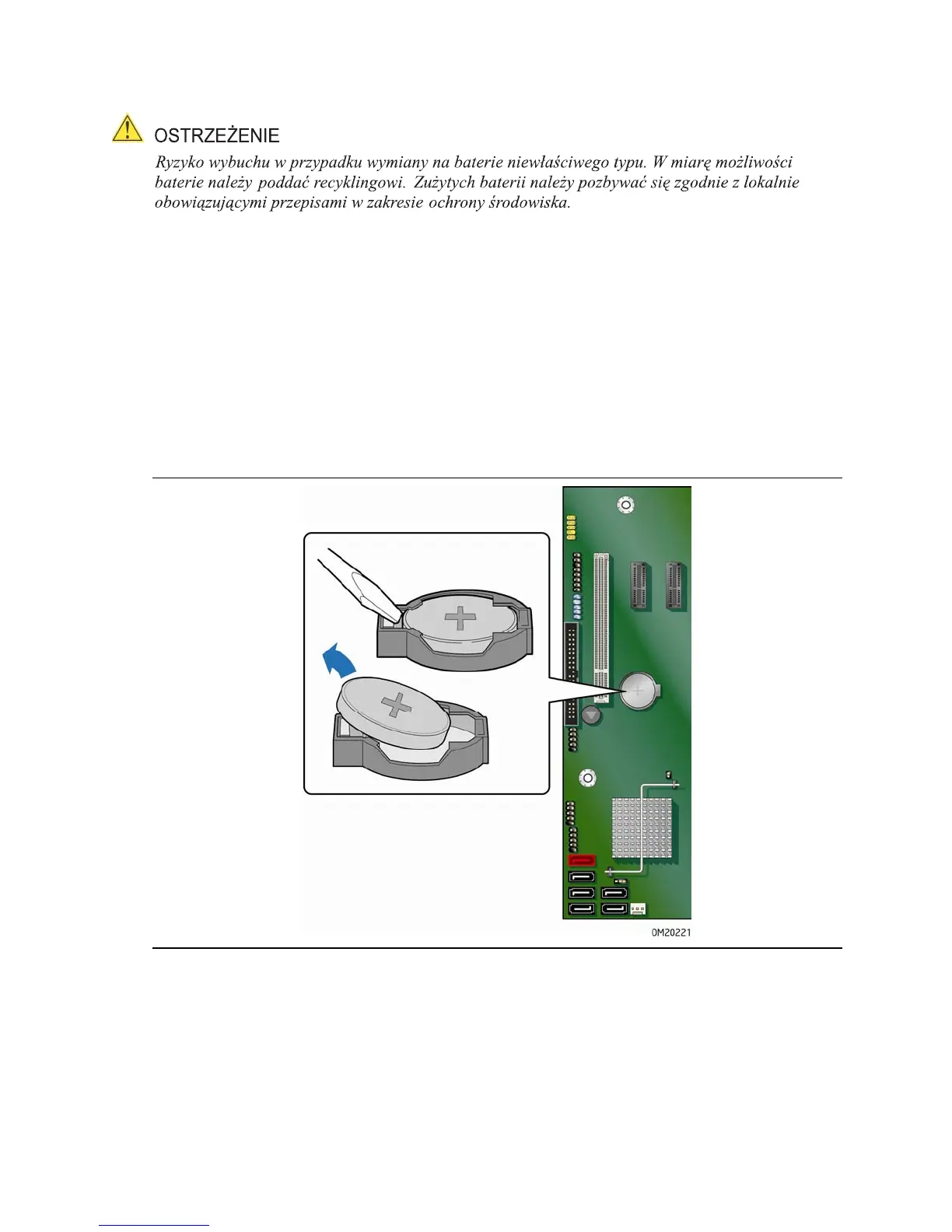

Figure 29. Removing the Battery
