Intel DX58SO2 Specification

Product Description
23
For information about Refer to
The locations of the front panel audio header and S/PDIF audio connector Figure 11, page 43
The signal names of the front panel audio header Table 11, page 45
The back panel audio connectors Section 2.2.1, page 42
1.10.3 10-Channel Audio Subsystem
The 10-channel (7.1 + 2 independent multi-streaming)audio subsystem includes the
following:
• Intel 82801IJR (ICH10R)
• Realtek ALC892 audio codec
• Microphone input that supports a single dynamic, condenser, or electret
microphone
The back panel audio connectors are configurable through the audio device drivers.
The available configurable audio ports are shown in Figure 4.
Item Description
A Rear surround
B Center channel and LFE (subwoofer)
C Line in
D Line out/front speakers
E Mic in/side surround
F S/PDIF Digital Audio Out (optical)

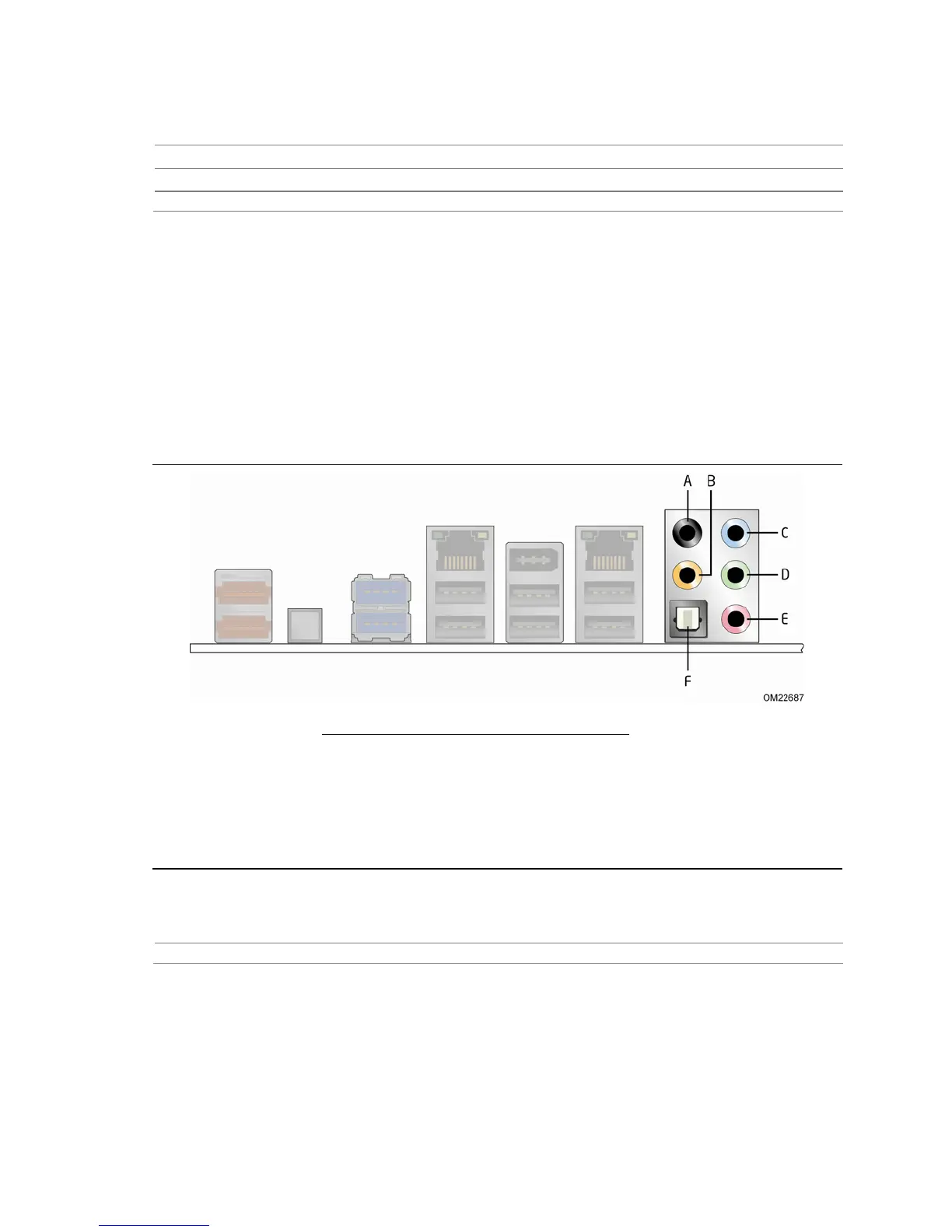

Figure 4. Back Panel Audio Connector Options
For information about Refer to
The back panel audio connectors Section 2.2.1, page 42
