Intel Desktop Board DX58SO2 Technical Product Specification
42
2.2.1 Back Panel Connectors
Figure 10 shows the location of the back panel connectors for the board.
Item Description
A eSATA ports
B Back to BIOS button
C USB 3.0 ports
D LAN
E USB 2.0 ports
F IEEE 1394a connector
G USB 2.0 ports
H LAN
I USB 2.0 ports
J Rear surround
K Center channel and LFE (subwoofer)
L S/PDIF digital audio out (optical)Line
in
M Line in
N Line out/front speakers
O Mic in/side surround

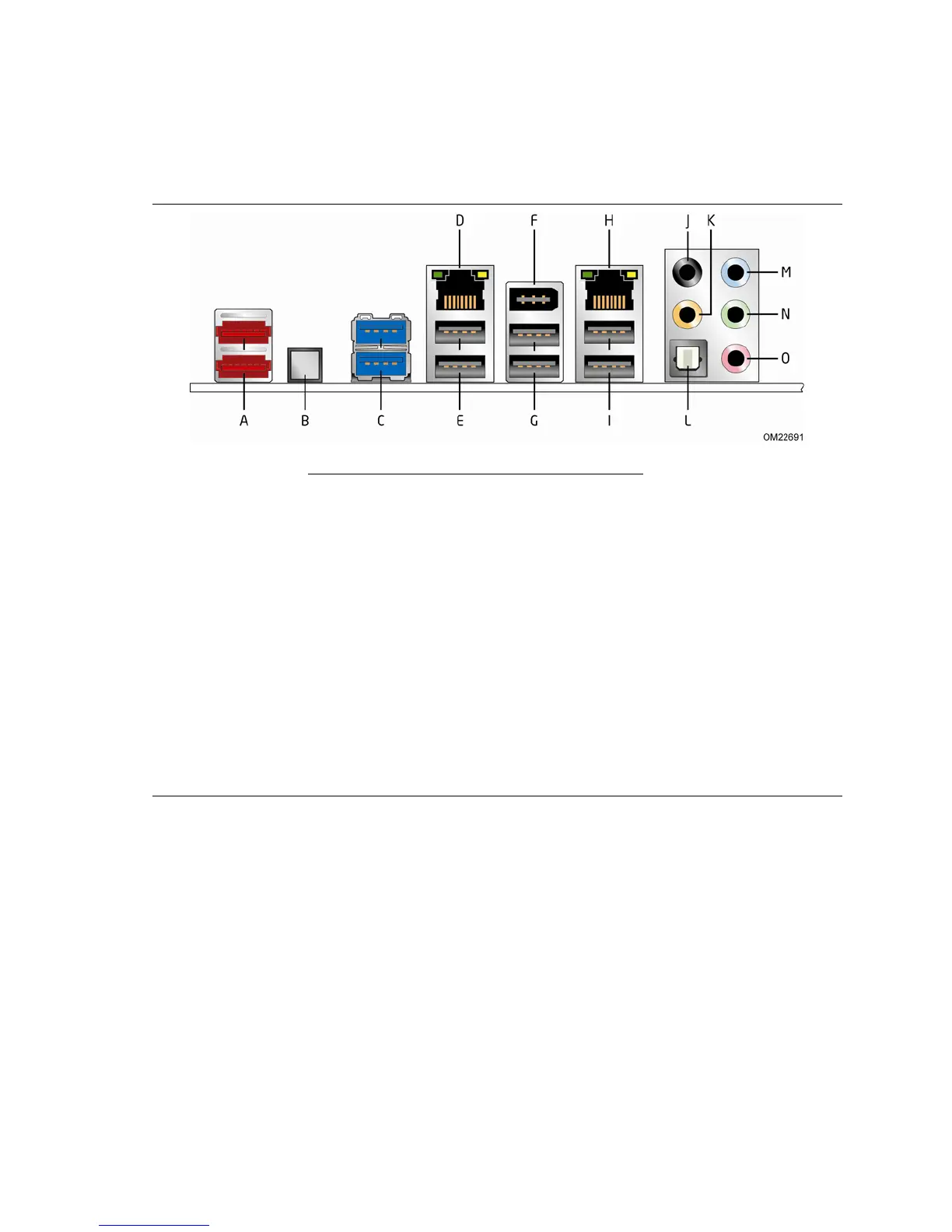

Figure 10. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
