Intel Desktop Board DX79SI Product Guide
36
Installing the Desktop Board
CAUTION
Only qualified technical personnel should perform this procedure. Disconnect the
computer from its power source before performing the procedures described here.
Failure to disconnect the power before you open the computer can result in personal
injury or equipment damage.
Refer to your chassis manual for instructions on installing and removing the Desktop
Board.
Figure 11 shows the location of the mounting
screw holes for Intel Desktop Board
DX79SI.

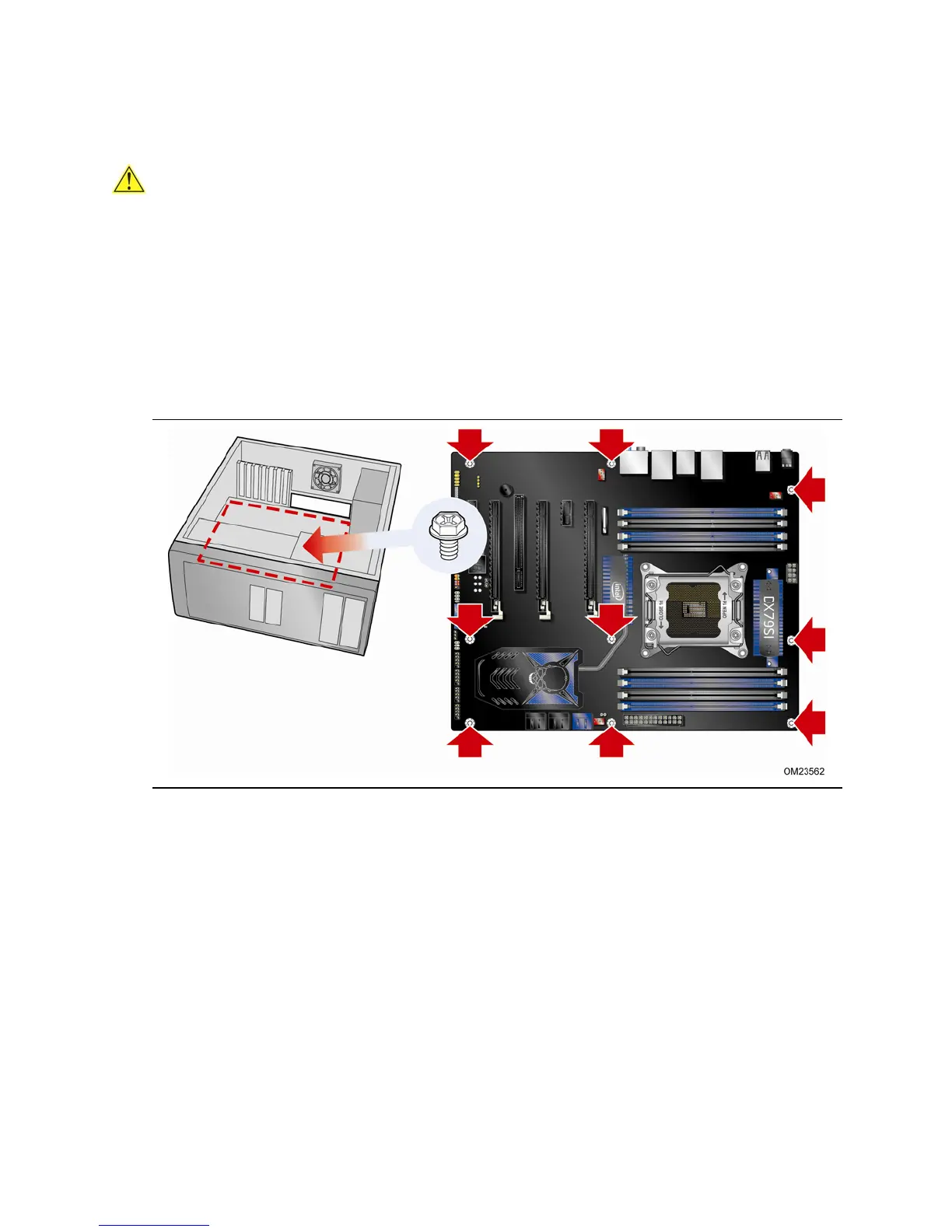

Figure 11. Intel Desktop Board DX79SI Mounting Screw Hole Locations
