Intel DX79SI Product Guide

Installing and Replacing Desktop Board Components
39

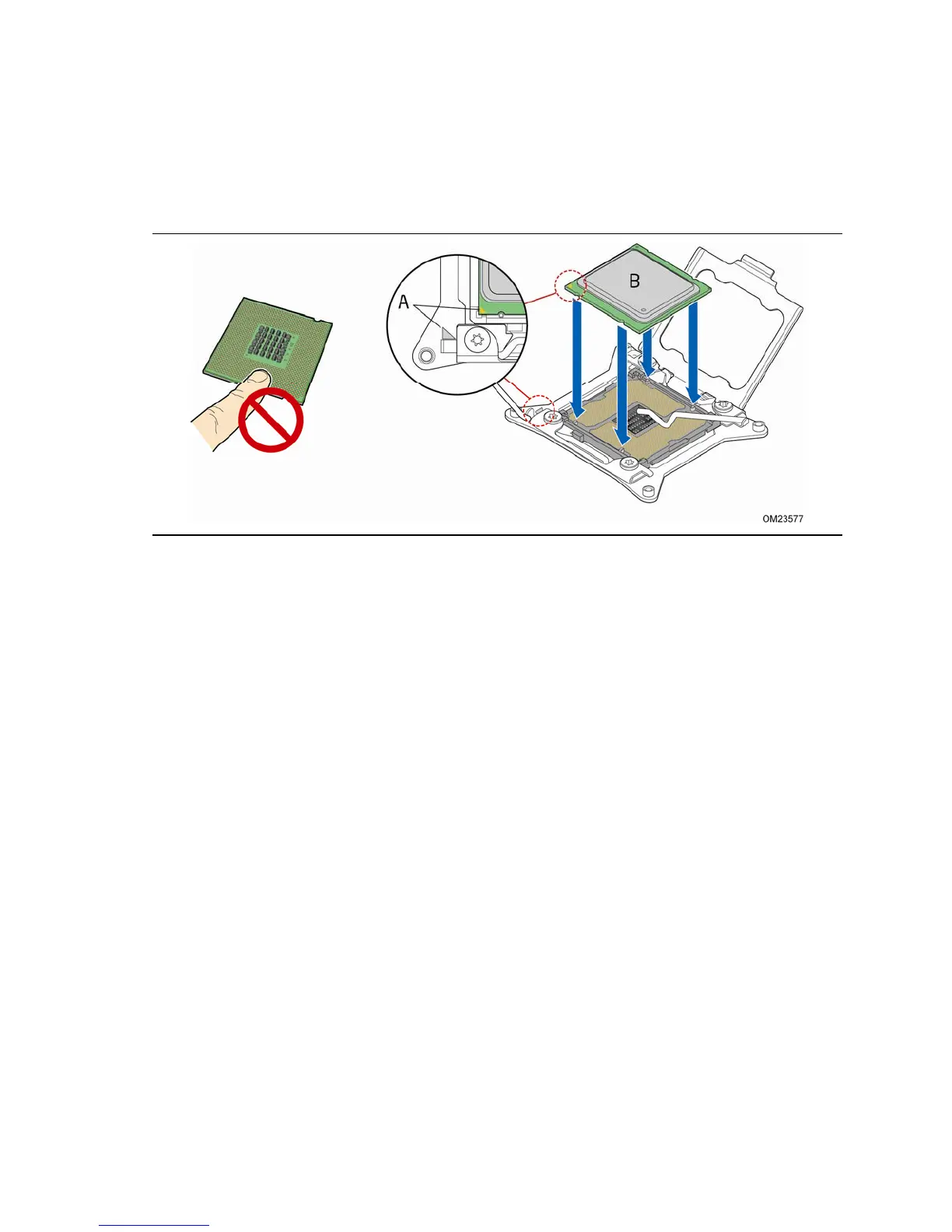

5. Remove the processor from it’s packaging and insert in the socket as shown in
Figure 14. Make sure the gold-colored tri
angle indicating pin 1 on the processor
aligns with the triangle on the socket (Figure 14, A) before you lower the processor
into place.
Lower the processor (Figure 14, B) straight down without tilting or
slid
ing it in the socket.
Figure 14. Install the Processor
