Intel Galileo Getting Started Guide

Intel
®
Galileo Board Getting Started Guide
Order Number: 329685-006US 3
Intel
®
Galileo Board

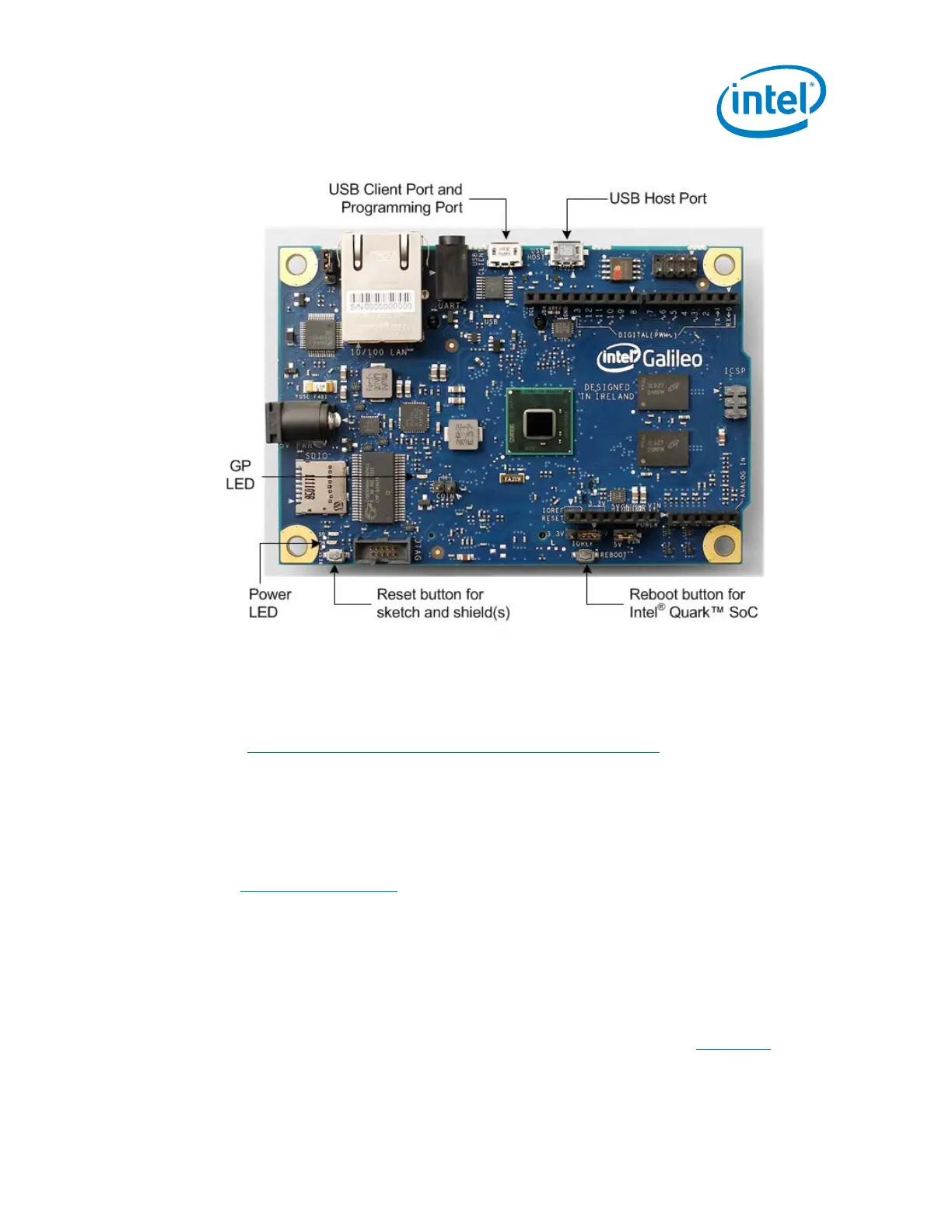

Note: The I/O headers are identical to the Arduino Revision 1.0 pinout.
2. Download the Arduino environment and board firmware
Download the latest IDE and firmware files here:
https://communities.intel.com/community/makers/drivers
You will need up to 200 MB of free space, depending on which OS you are using.
Note: When unzipping the packages:
− Extract the package into the C:\ directory due to a known issue unzipping
packages with long file paths.
− Use an unzip tool that supports an extended file path (for example, 7-zip from
http://www.7-zip.org/).
This release contains multiple zip files, including:
• Operating system-specific IDE packages, contain automatic SPI flash update:
− Intel_Galileo_Arduino_SW_1.5.3_on_Linux32bit_v1.0.0.tgz (73.9 MB)
− Intel_Galileo_Arduino_SW_1.5.3_on_Linux64bit_v1.0.0.tgz (75.2 MB)
− Intel_Galileo_Arduino_SW_1.5.3_on_MacOSX_v1.0.0.zip (55.9 MB)
− Intel_Galileo_Arduino_SW_1.5.3_on_Windows_v1.0.0.zip (106.8 MB)
• (Mandatory for WiFi) Files for booting board from SD card. See Section 11.
LINUX_IMAGE_FOR_SD_Intel_Galileo_v1.0.0.7z (38.7 MB)

Intel Galileo Specifications

General

Product family	Intel Galileo
Product series	Intel Galileo board
Processor cache	16 KB
Processor cores	1
Processor model	Intel Quark SoC X1000
64-bit computing	No
Processor socket	Quark 393pin FCPGA
Product codename	-
Processor frequency	400 MHz
Microcontroller model	Intel Quark
Processor lithography	32 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	12.5 W
Memory bandwidth supported by processor (max)	2.5 GB/s
Memory bus	32 bit
Flash memory	8 MB
Memory channels	Single-channel
Flash memory type	Norwegian
Memory clock speed	800 MHz
Internal memory type	DDR3
Number of DIMM slots	0
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum internal memory	0.256 GB
Maximum memory card size	32 GB
SRAM (Static Random Access Memory)	512 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	8 KB
USB version	2.0
Ethernet LAN	Yes
USB ports quantity	3
Ethernet interface type	Fast Ethernet
ARK ID	78919
Status	Discontinued
Launch date	Q4'13
Package size	15 x 15 mm
FSBs supported	NA
Processor included	Intel® Quark™ SoC X1000 (16K Cache, 400 MHz)
Supported memory types	DDR3-SDRAM
Power over Ethernet (PoE) voltage	12 V
Export Control Classification Number (ECCN)	4A994
PCI Support	PCI Express
PCI Express interface data lanes	x1
Form factor	Arduino
Market segment	Desktop
DC input voltage	5 V
Intel Small Business Advantage (SBA) version	0.00
Last change	63903513
Processor ID	79084
Product type	11
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
