Intel® Galileo Development Kit for IoT - Tutorial Guide Revision 1.0 – 20-Feb-2014
(Page 12 of 32)

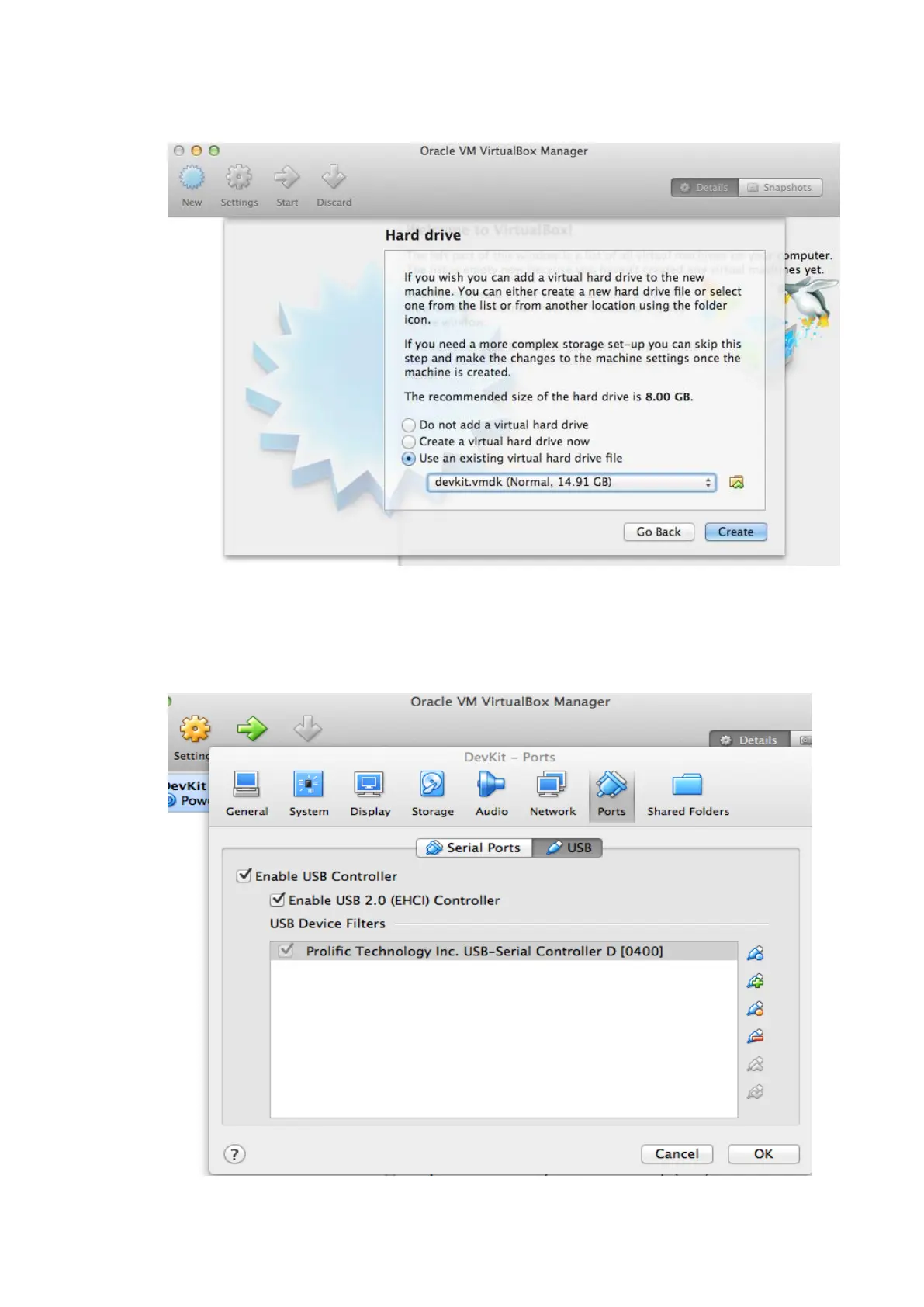

11. Select ‘Use an existing virtual hard drive file’ checkbox and assign the virtual machine disk
file created in step 7 above to your virtual machine. -> Click ‘Create’
Figure 10: Virtual disk drive specifications on Mac
12. Create a filter for the USB -> Serial adapter by right clicking on your virtual machine name ->
Select ‘Settings’ -> Click the ‘Ports’ button -> Select the ‘USB’ tab -> Click the plus button -
> Select your USB adapter from the list of available devices
Figure 11: VirtualBox Serial-USB configuration on Mac
