RTD3 POWER
NGFF_M (M2) SSD_1 (PCIE 4X)
>120 mil
>120 mil
PCB Footprint
婳䡢娵㨇㥳ἧ䓐䘬
Connector
80 mils
close to J_SSD1 conn
PCIE_SATA_0
H: PCIe
L: SATA
120 MIL
NGFF M2 SSD POWR
军⮹暨天
3A(120mil)
M.2 SSD(SATA/PCIE)
SATA Reserved
0304-modify
PU PCH side
0304 modify
0310 Follow common design
DEFAULT SHORT
0310 Follow common design
0311
ὅℙ䓐ᾖ㓡 daisy
0311
ὅℙ䓐ᾖ㓡 daisy
GNDGND
GND
M2_SSD1_3.3VS
M2_SSD1_3.3VS
M2_SSD1_3.3VS
GND
GND
GND GNDGND
GND
3.3VS
VDD3
GND
3.3V
M2_SSD1_3.3VS
3.3V
3.3VS
3.3VS
BUF_PLT_RST# 43,47,51,52,53
GPP_H23_SSD1_RST# 38
PCIE_RXP12_SSD37
PCIE_RXN12_SSD37
PCIE_TXN12_SSD37
PCIE_TXP12_SSD37
M.2_SSD1_PEDET38
PCIE_RXP11_SSD37
PCIE_RXN11_SSD37
PCIE_RXP10_SSD37
PCIE_RXN10_SSD37
PCIE_RXN9_SSD37
PCIE_RXP9_SSD37
PCIE_TXP11_SSD37
PCIE_TXN11_SSD37
PCIE_TXN10_SSD37
PCIE_TXP10_SSD37
PCIE_TXP9_SSD37
PCIE_TXN9_SSD37
M2M_SSD1_LED# 57
M2_P1_SATA_DEVSLP 38
3IN1 49,51
80CLK 49,51
SATA_M2_PW R_EN139
CLK6_PCIE_SSD#40
CLK6_PCIE_SSD40
SSD_CLKREQ6# 38
PLN# 49,51
PCIE_WAKE# 36,51,52,57
Title
Size Document Number Rev
Date: Sheet
of
6-71-PC5H0-D02
D02
[50] M.2 PCIEX4 SSD1
Custom
50 79Friday, May 14, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PC50HS-D02
Title
Size Document Number Rev
Date: Sheet
of
6-71-PC5H0-D02
D02
[50] M.2 PCIEX4 SSD1
Custom
50 79Friday, May 14, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PC50HS-D02
Title
Size Document Number Rev
Date: Sheet
of
6-71-PC5H0-D02
D02
[50] M.2 PCIEX4 SSD1
Custom
50 79Friday, May 14, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PC50HS-D02
U16
*SY6288E1AAC
(M2) SSD_1
OUT
1
GND
2
OCB
3
EN
4
IN
5
C1298 0.22u_10V_X5R_04
(M2) SSD_1
C821
0.1u_6.3V_X5R_02
(M2) SSD_1
PJ13
OPEN_2A
(M2) SSD_1
12
C848
22u_6.3V_X5R_06
(M2) SSD_1
R1505 *10K_04
(M2) SSD_1
C1288 0.22u_10V_X5R_04
(M2) SSD_1
R350 *0_04
(M2) SSD_1
C834
*0.1u_6.3V_X5R_02
(M2) SSD_1
R317
1M_04
(M2) SSD_1
R379 0_04C806 0.22u_10V_X5R_04
(M2) SSD_1
M KEY
J_SSD1
NFSM0-S6701-TP40
PCB Footprint = NXSM0-S67XX-XX40
P/N = 6-21-84K70-075
(M2) SSD_1
SUSCLK(32Khz)(O)
68
CLKREQ#(IO)
52
GND11
71
REFCLKP
55
REFCLKN
53
PEWake#(IO)
54
PEDET(NC-PCIe/GND-SATA)
69
GND10
57
DAS/DSS#(I)(OD)
10
GND12
73
3.3V2
12
NC18
67
NC1
8
NC0
6
DEVSLP(O)
38
PERST#(O)
50
GND9
51
3.3V0
2
GND0
1
3.3V1
4
GND1
3
GND2
9
PERp0/SATA-B-
43
PETp0/SATA-A+
49
PETn0/SATA-A-
47
PERn0/SATA-B+
41
GND7
39
GND8
45
GND13
75
3.3V3
14
3.3V4
16
PERn3
5
PERp3
7
3.3V5
18
GND3
15
PETn3
11
PETp3
13
GND5
27
PETn2
23
GND4
21
PERn2
17
PERp2
19
PETp2
25
NC3
22
NC2
20
NC5
26
NC4
24
NC7
30
NC9
34
NC6
28
NC8
32
NC10
36
NC12
42
NC13
44
NC15
48
NC14
46
NC11
40
PETp1
37
PETn1
35
PERp1
31
PERn1
29
GND6
33
NC16
56
NC17
58
3.3V6
70
3.3V7
72
3.3V8
74
R294
*0_04
(M2) SSD_1
C823
22u_6.3V_X5R_06 (M2) SSD_1
C847
0.1u_6.3V_X5R_02
(M2) SSD_1
R380 *20mil short-p
C832
0.1u_6.3V_X5R_02
(M2) SSD_1
R424 *20mil short-p
C1297 0.22u_10V_X5R_04
(M2) SSD_1
R349 0_04
(M2) SSD_1
C833
*0.1u_6.3V_X5R_02
(M2) SSD_1
C1287 0.22u_10V_X5R_04
(M2) SSD_1
C1320
*0.1u_6.3V_X5R_02
(M2) SSD_1
R1463 *0_04
(M2) SSD_1
R381 *10K_04
(M2) SSD_1
U13
*74AHC1G08GW
(M2) SSD_1
1
2
5
4
3
R423 *20mil short-p
C822
0.1u_6.3V_X5R_02
(M2) SSD_1
C805 0.22u_10V_X5R_04
(M2) SSD_1
C846
0.1u_6.3V_X5R_02
(M2) SSD_1
R377
100K_04
(M2) SSD_1
C804 0.22u_10V_X5R_04
(M2) SSD_1
C807 0.22u_10V_X5R_04
(M2) SSD_1
M.2_SSD1_RESET#
M.2_SSD1_RESET#
Sheet 50 of 79

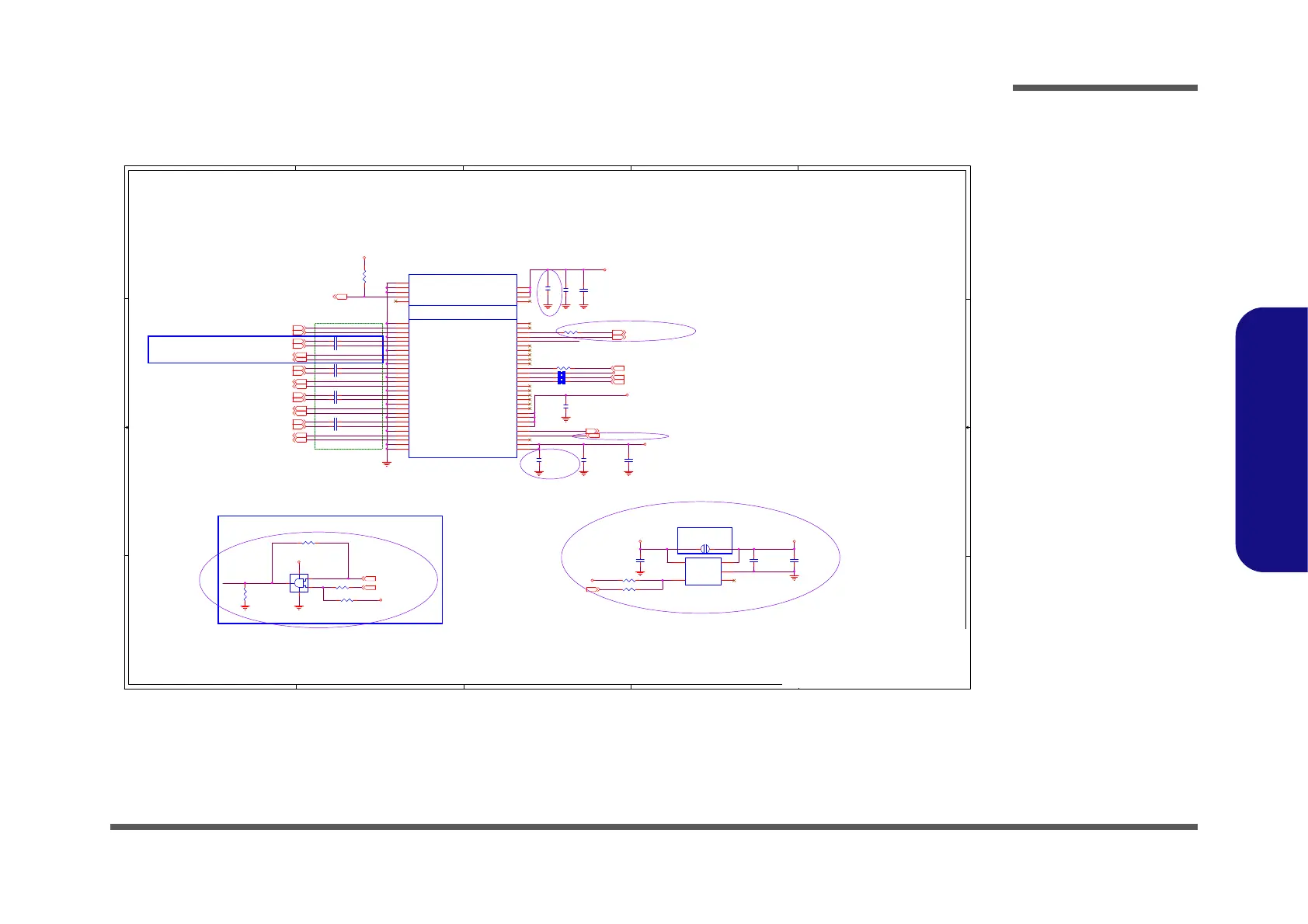

M.2 PCIE4X SSD1
Schematic Diagrams
M.2 PCIE4X SSD1 B - 51
B.Schematic Diagrams
M.2 PCIE4X SSD1
