Disassembly
Removing the M.2 SSD Module 2 - 11
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD-1 Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5).
2. The M.2 SSD modules will be visible at point on the mainboard (Figure 7a).
3. Remove the screw
(Figure 7b).
4. The M.2 SSD module (Figure 7c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
SATA/PCIE SSD

3.M2 SSD Module
•1 Screw
Figure 7
M.2 SSD-1 Module
Removal

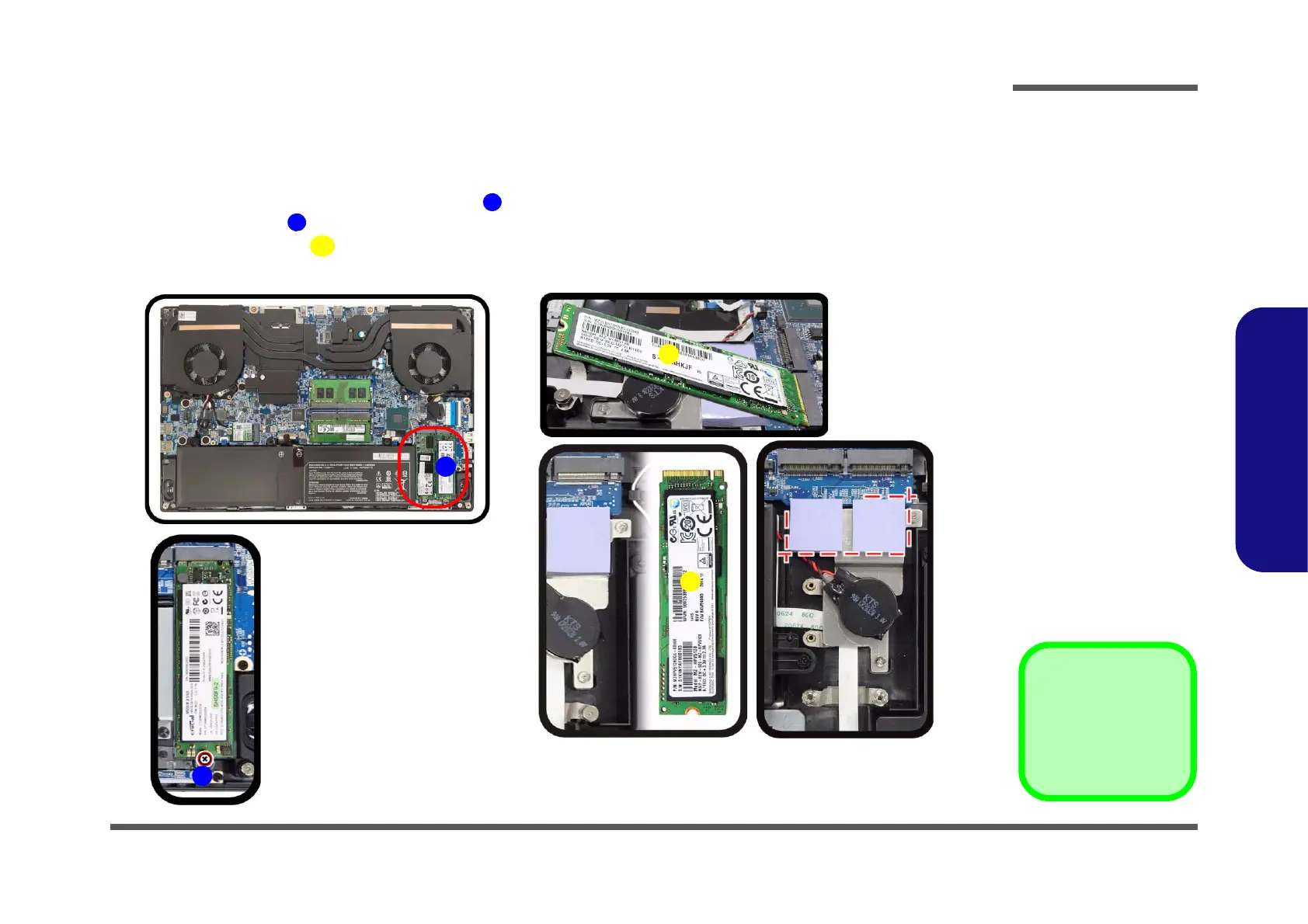

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
