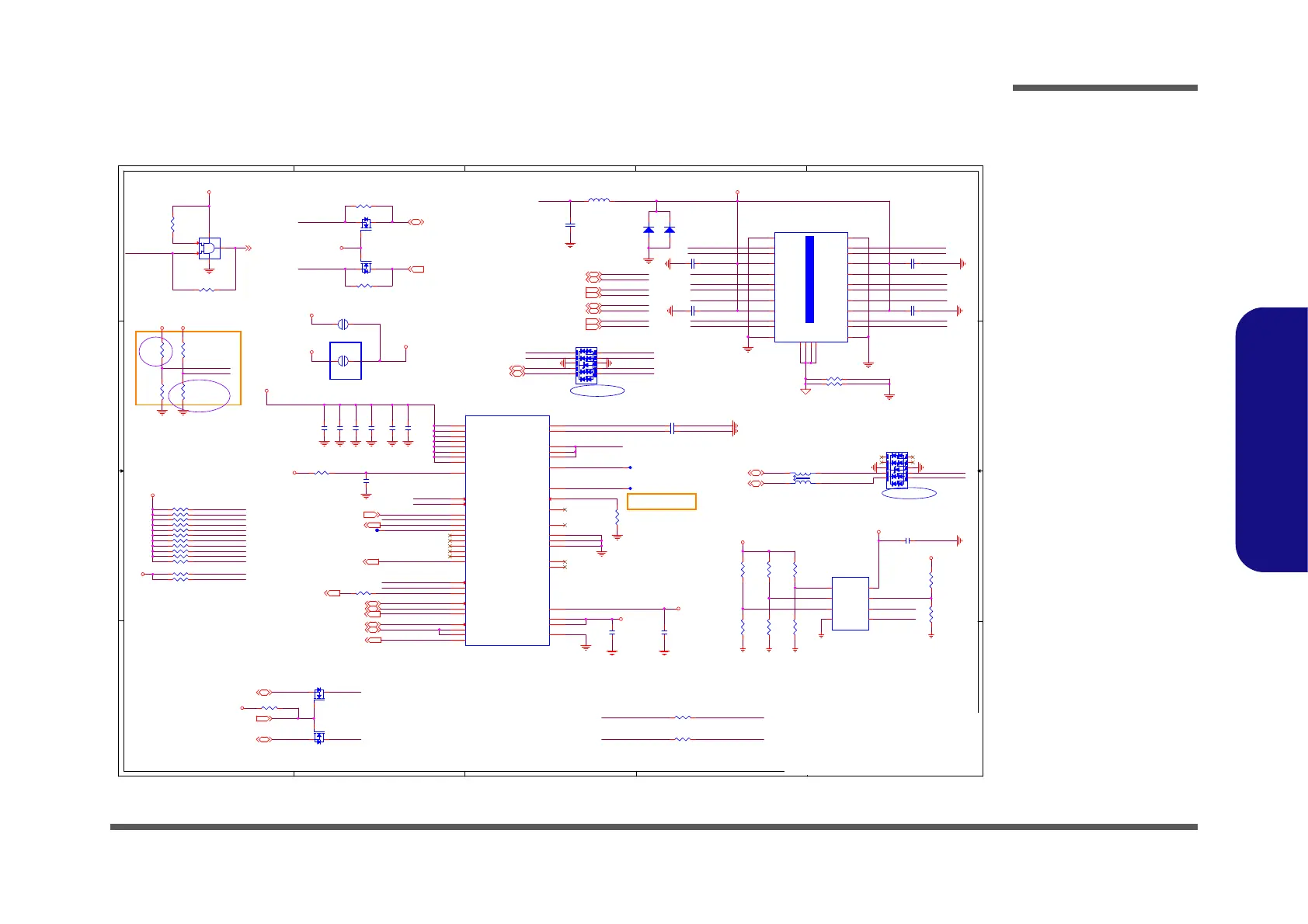

[48] TBT TPS65987D TYPE-C
A3
48
79Friday, May 14, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PC50HS-D02
Title
Size Document Number Rev
Date: Sheet
of
6-71-PC5H0-D02
D02
[48] TBT TPS65987D TYPE-C
A3
48
79Friday, May 14, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PC50HS-D02
Title
Size Document Number Rev
Date: Sheet
of
6-71-PC5H0-D02
D02
[48] TBT TPS65987D TYPE-C
A3
48
79Friday, May 14, 2021
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PC50HS-D02
R1388 10K_04
R1378 2.2K_04
U35
TPS65993ADYBGR
dsbga50-p0_4-3_2x3_2mm-1
PP5V_1
A7
PP5V_2
B7
PP5V_3
C7
PP5V_4
D7
PP5V_5
E7
PP5V_6
F7
PP5V_7
G7
PP5V_8
H7
VIN_3V3
H4
ADCIN1
G4
ADCIN2
G3
GPIO0
C1
GPIO1
G1
GPIO2
A6
GPIO3
H6
GPIO4
B3
GPIO5
C2
GPIO6
F6
GPIO7
G6
GPIO8
B6
GPIO9
C6
I2C_EC_SCL
E1
I2C_EC_SDA
F1
I2C_EC_IRQ#
D1
I2C2s_IRQ#
F2
I2C2s_SCL
E2
I2C2s_SDA
D2
I2C3m_SCL
A2
I2C3m_IRQ#
B1
I2C3m_SDA
A1
I2C3m_SDA_1
B2
PA_CC1
G5
PA_CC2
H5
PA_VBUS_1
H8
PA_VBUS_2
G8
PA_VBUS_3
F8
PA_GATE_VBUS
E8
PA_GATE_VSYS
A4
VSYS
A3
NC_1
B4
NC_2
D8
GND1
A8
GND2
B8
GND3
C8
NC_3
B5
NC_4
A5
LD0_3V3
H3
LD0_1V5_1
H1
LD0_1V5_2
G2
GND4
H2
R1380 2.2K_04
R1394
*10K_04
R1399
0_04
S D
G
Q38B
WNMD2165
5
34
R1370 *0_04
L35
*WCM2012F2S-161T03-short
1
4
2
3
R1372
4.7K_04
S D
G
Q73A
WNMD2165
2
61
T151
R1400 *10K_04
R1398
0_04
R1392 2.2K_04
S D
G
Q38A
WNMD2165
2
61
C1578
22u_6.3V_X5R_06
EMR1 0_04
C1574 1u_25V_X5R_06
U36
74AHC1G08GW
1
2
5
4
3
C1570
1u_25V_X5R_06
L34 HCB2012KF-800T80
R1368 *0_04
R1374
*100K_04
R1381 2.2K_04
R1397
0_04
EMR2 0_04
C1577
22u_6.3V_X5R_06
R1385 10K_04
R1377 2.2K_04
R1379
0_04
D63
*B5819W
A C
C1582 220p_50V_NPO_04
R1375
100K_04
C1580
22u_6.3V_X5R_06
C1572 1u_25V_X5R_06
R1387 *2.2K_04
C1573 1u_25V_X5R_06
T152
PJ29
2mm
1 2
C1575
22u_6.3V_X5R_06
D65
CESD2510UC5VUS
5
1
2
3
4
10
9
8
7
6
C1585
10u_6.3V_X5R_06
C1586
10u_6.3V_X5R_06
TYPEC1
UCF3T-4TN30-0P0B
PCB Footprint = DX07S024JJ2
P/N = 6-21-B4KB0-024
W/TBT
GND
A1
TX0_P
A2
TX0_N
A3
VBUS
A4
CC1
A5
USB2_P_T
A6
USB2_N_T
A7
SBU1
A8
VBUS
A9
RX1_N
A10
RX1_P
A11
GND
A12
GND
B12
RX0_P
B11
RX0_N
B10
VBUS
B9
SBU2
B8
USB2_N_B
B7
USB2_P_B
B6
CC2
B5
VBUS
B4
TX1_N
B3
TX1_P
B2
GND
B1
CGND
GND1
CGND
GND2
CGND
GND3
CGND
GND4
D64
B5819W
A C
R1402 0_04
PJ28
*2mm
1 2
R1395 0_04
C1583
10u_6.3V_X5R_06
C1579
22u_6.3V_X5R_06
R1396
0_04
R1393 2.2K_04
C1576
22u_6.3V_X5R_06
R1376 0_06
R1382 10K_04
D66
CESD2510UC5VUS
5
1
2
3
4
10
9
8
7
6
S D
G
Q73B
WNMD2165
5
34
R1389
*10K_04
T153
C1584 0.1u_6.3V_X5R_02
C1571 1u_25V_X5R_06
R1373
*100K_04
R1383 2.2K_04
R1384 2.2K_04
R1401 0_04
R1371 *0_04
C1581 220p_50V_NPO_04
U34
GT24C256C
PCB Footprint = soic8-3_9mm
A0
1
A1
2
A2
3
GND
4
VCC
8
WP
7
SCL
6
SDA
5
R1386 *2.2K_04
R1369
10K_04
R1391
*10K_04
R1390
*10K_04
ACE_I2C_SCL2
ACE_I2C_SDA2
ACE_I2C_IRQ2Z
TBT-PCH_I2C_SCL
TBT-PCH_I2C_SDA
TBTA-PCH_I2C_INT
RETIMER_I2C_SCL
RETIMER_I2C_SDA
RETIMER_I2C_INT
ADDIN1
SINK_CTRL
ADDIN2
TBT_PA_VBUS
PA_GATE_VBUS
PA_GATE_VSYS
PPHV
ROM_I2C_SCL
ROM_I2C_SDA
ROM_I2C_SDA
ROM_I2C_SCL
WP65993
USB_PN9_J
USB_PP9_J
USB_PN9_J
USB_PP9_J
USB_PN9_
USB_PP9_
TBTA_TXRX_1_N
TBTA_TXRX_1_P
TBTA_TX_1_N
TBTA_TX_1_P
TBTA_TX_2_P
TBTA_TX_2_NTBTA_TXRX_2_N
TBTA_TXRX_2_P
TBTA_CC1_J
TBTA_CC2_J
TBTA_SBU2_J
TBTA_SBU1_J
USB_PN9_J
USB_PP9_J
TBT_PA_VBUS
TBTA_CC2
TBTA_CC1
TBTA_SBU2
TBTA_SBU1
TBTA_SBU2_J
TBTA_SBU1_J
TBTA_TXRX_1_P
TBTA_TXRX_1_N
TBTA_TXRX_2_P
TBTA_TXRX_2_N
TBTA_TX_2_P
TBTA_TX_2_N
TBTA_TX_1_P
TBTA_TX_1_N
GPIO0_TBT_RESET_N
ACE_I2C_SCL2
ACE_I2C_SDA2
ACE_I2C_SDA2
ACE_I2C_SCL2
ACE_I2C_IRQ2Z
TBTA_CC1 TBTA_CC1_J
TBTA_CC2 TBTA_CC2_J
ADDIN1
ADDIN2
TBTA-PCH_I2C_INT
TBT-PCH_I2C_SDA
TBT-PCH_I2C_SCL
RETIMER_I2C_INT
RETIMER_I2C_SDA
RETIMER_I2C_SCL
GPIO0_TBT_RESET_N
RETIMER_I2C_SDA
RETIMER_I2C_SCL
ROM_I2C_SDA
PCH_I2C_SCL ROM_I2C_SCL
PCH_I2C_SDA
ROM_I2C_SCL
ROM_I2C_SDA
PCH_I2C_SCL
PCH_I2C_SDA
Sheet 48 of 79
TPS65987D
Schematic Diagrams
TPS65987D B - 49
B.Schematic Diagrams
TPS65987D
