Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)

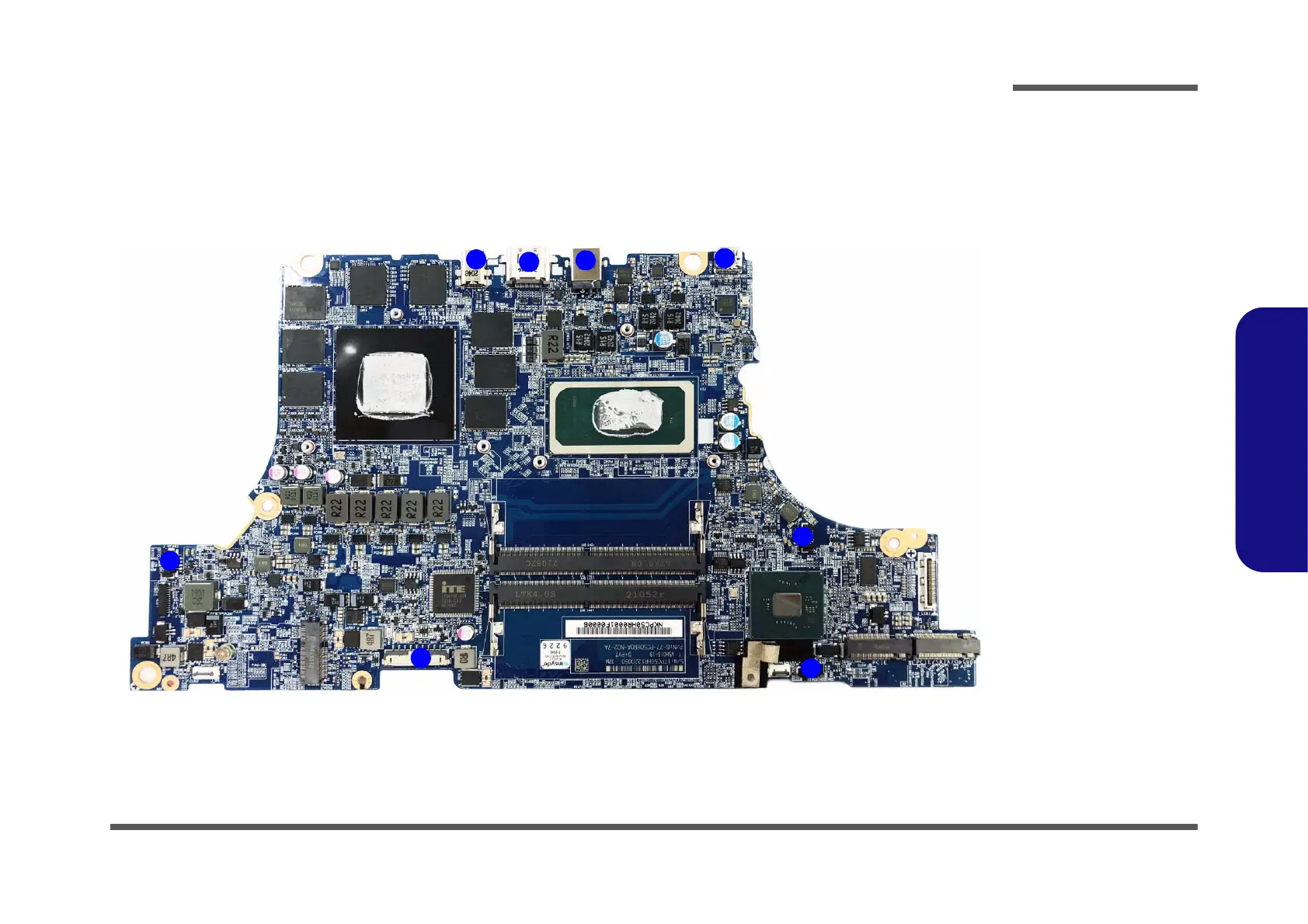

Figure 10
Mainboard Bottom
Connectors
1. Mini DisplayPort
1.4
2. HDMI-Out Port
3. DC-In Jack
4. Thunderbolt 4 Port
5. Battery Cable
Connector
6. RTC Battery
Connector
7. Fan Connector
11
12
9
10
1
2
4
3
5
6
7
7
