2 - 16 Removing the CCD
2.Disassembly
Removing the CCD
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. Lay the computer down on a flat surface with the top case up forming a 130 degree angle.
3. Carefully run your fingers around the inner frame of the LCD mylar to lift at points - as indicated by the
arrows (Figure 11a).
4. Remove the LCD front cover (Figure 11b).
1
4
5
b.
a.
5
2
1
4
3

5. LCD Front Mylar
Figure 11

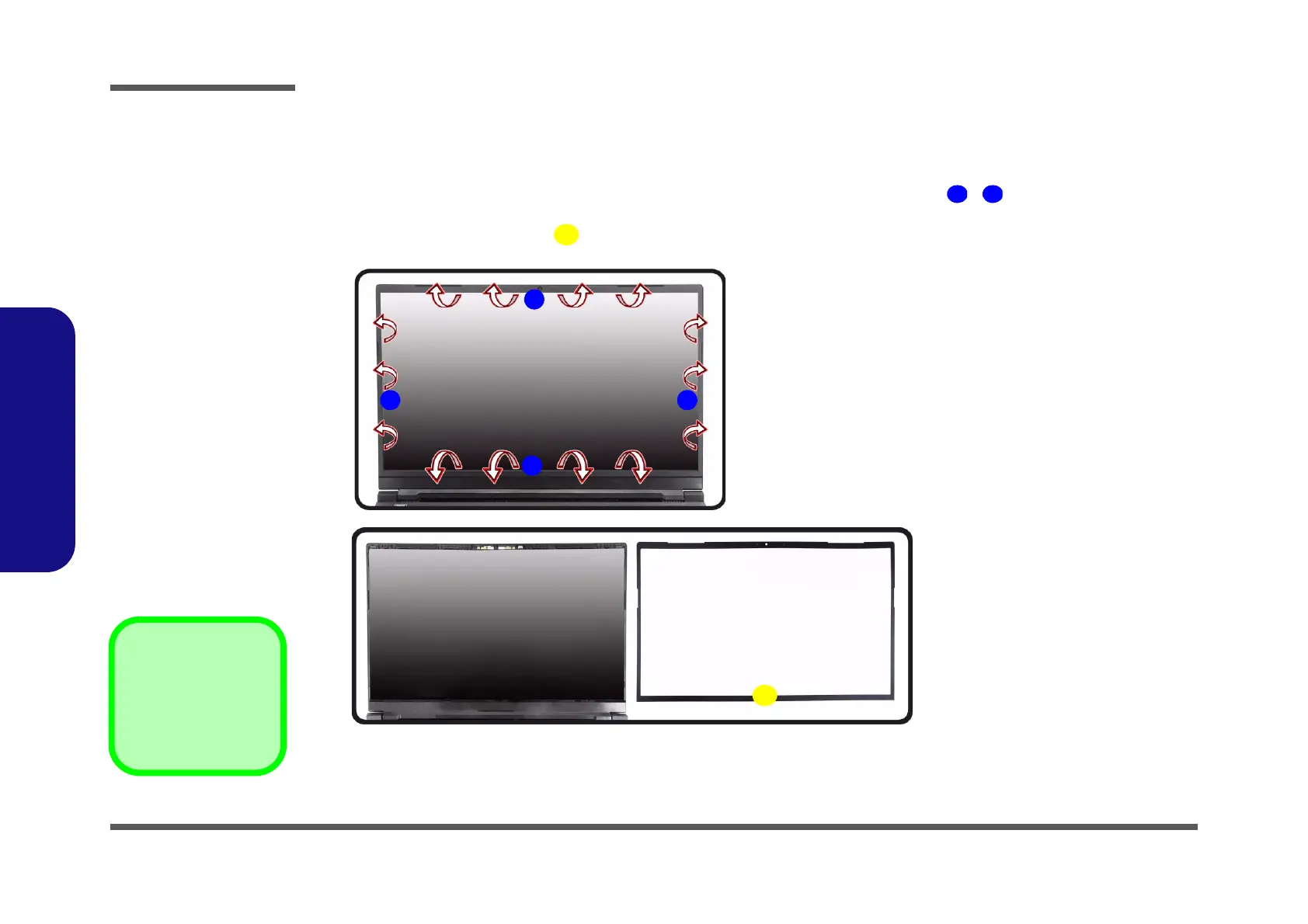

CCD Removal
a. Carefully release the in-
ner frame of the LCD
panel at the points indi-
cated by the arrows.
b. Remove the LCD front
mylar.
