Intel PC50HS User Manual

Disassembly
Removing the Wireless LAN Module 2 - 13
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 9a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 9b)
4. The Wireless LAN module (Figure 9c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
5
1
5
2
3
4

5.Wireless LAN Module
•1 Screw
Figure 9
Wireless LAN
Module Removal

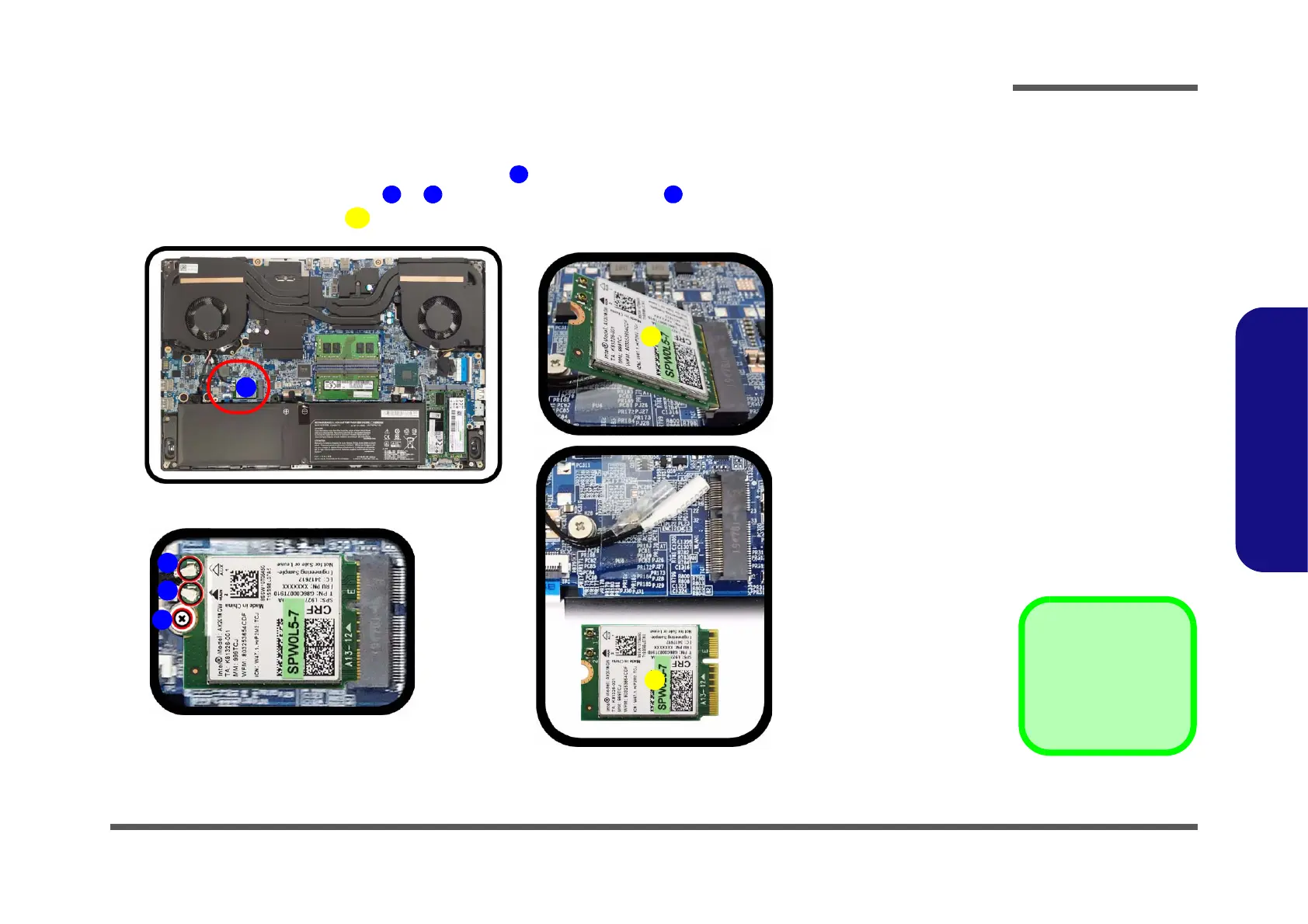

a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 9b).
