2 - 12 Removing the M.2 SSD Module
2.Disassembly
M.2 SSD-2 Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5).
2. The M.2 SSD modules will be visible at point on the mainboard (Figure 8a).
3. Remove the screw
(Figure 8b).
4. The M.2 SSD module (Figure 8c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
PCIE SSD

3.M2 SSD Module
•1 Screw
Figure 8
M.2 SSD-2 Module
Removal

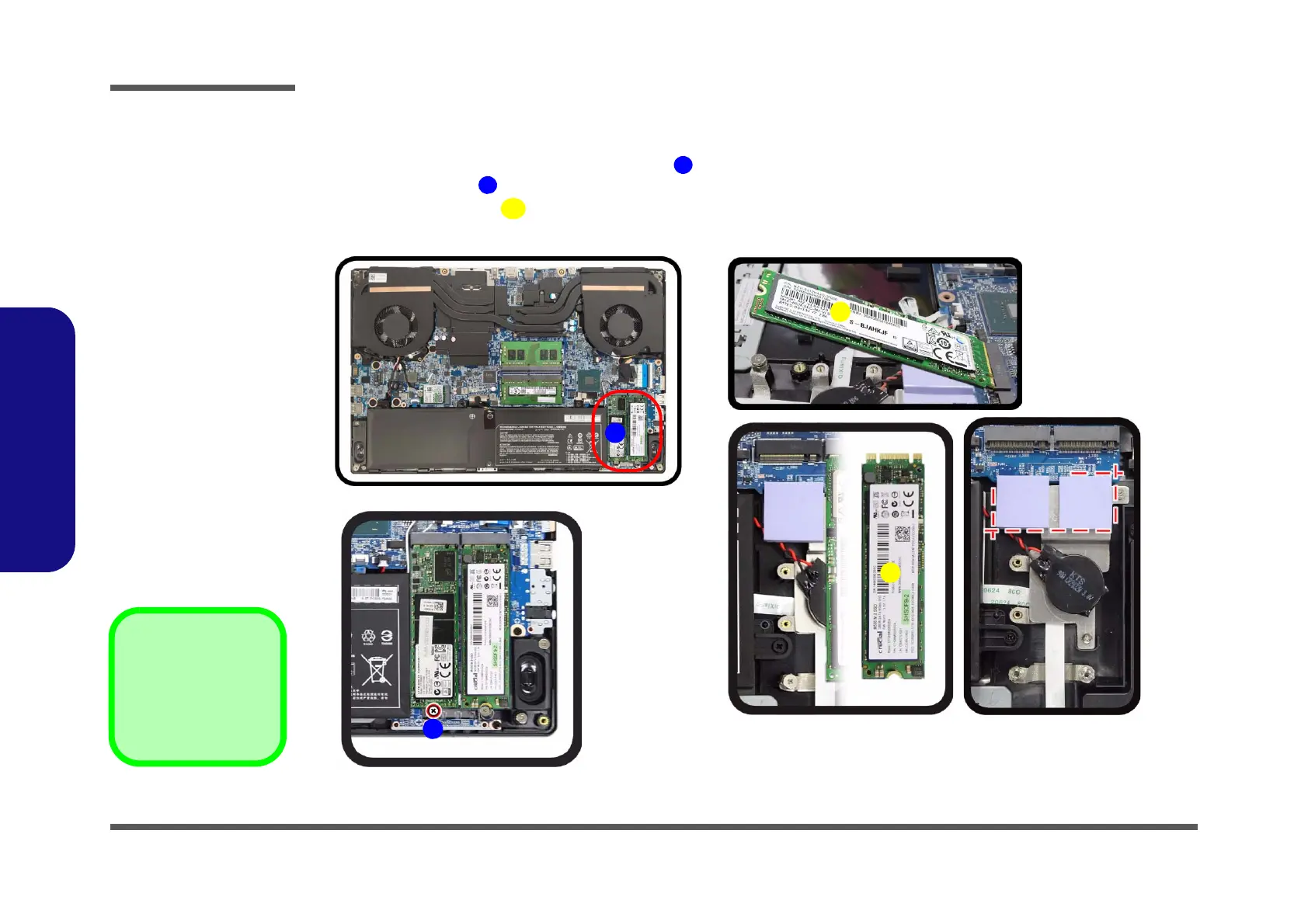

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
