Intel SE7520BD2

Server Board Features
2

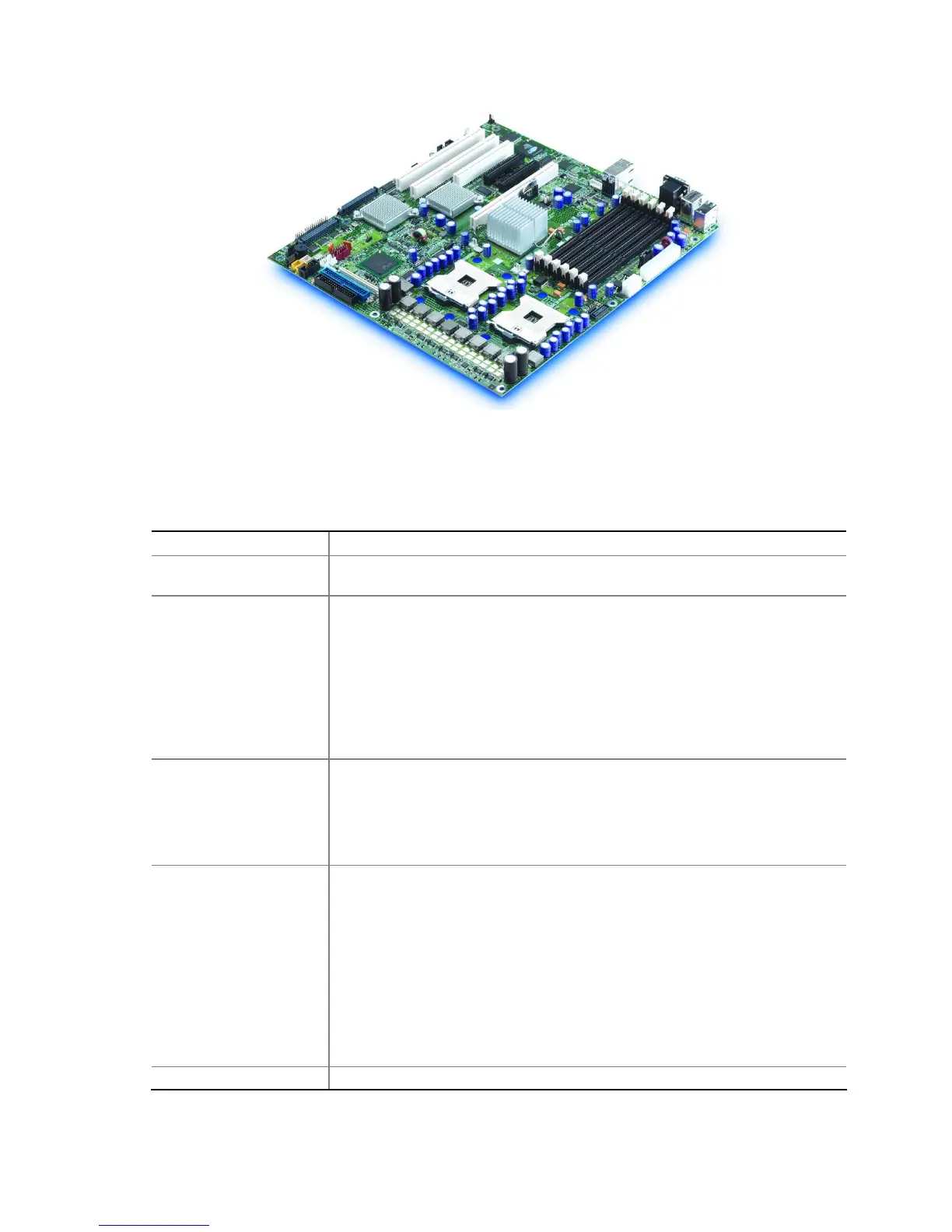

Figure 1. Intel
®
Server Board SE7520BD2
Table 1 summarizes the major features of the server board.
Table 1. Server Board Features
Feature Description
Processors
Up to two Intel® Xeon™ processors with an FC-mPGA4 using Socket 604, and
an 800-MHz Front Side Bus (FSB)
Memory
 DDR-266/333 MHz compliant registered ECC DIMMs
 DIMM sockets: six 72-bit, 184-pin, gold contact
 Supported DIMM sizes: 256 MB, 512 MB, 1 GB, 2 GB, 4 GB
 Up tp 24 GB memory capcity using DDR-266 (when 4 GB DIMMs are
available)
 Dual channel architecture
 Memory Mirroring
 Memory Sparing
Chipset Intel® E7520 chipset:
 Supports 800 MHz Front Side Bus (FSB)
 Intel® E7520 Memory Controller Hub (MCH)
 Intel® 6700PXH 64-bit PCI Hub
 Intel® 82801ER I/O Controller Hub5 (ICH-5R)
I/O Control Super I/O controller chip that provides:
 Two stacked and interchangeable PS/2 compatible keyboard/mouse ports
 Three rear external USB 2.0 ports (two rear USB Ports on SE7520BD2-V
SKU)
 USB header providing option for additional two USB ports for front panel
support
 One external serial port on the rear I/O port area (Serial A)
 One serial port header to provide a second, optional serial port (Serial B)
 One IDE connector supporting up to two ATA-100 compatible devices
 One standard floppy drive interface
Video
 Integrated on-board ATI Rage* XL SVGA video controller.
