Hardware Installations and Upgrades
Intel® Server Board SE7520BD2
13
Installing the Heat Sink(s)
1. The heat sink has Thermal Interface Material (TIM) located on the bottom of it. Use caution
when you unpack the heat sink so you do not damage the TIM.
2. Set the heat sink over the processor, lining up the four captive screws with the four posts
surrounding the processor.
3. Loosely screw in the captive screws on the heat sink corners in a diagonal manner. Do not fully
tighten one screw before tightening another.
4. Gradually and equally tighten each captive screw until all screws are tight.
✏
NOTE
Boxed Processor thermal solutions differ depending on the chosen chassis. Refer to the Boxed
Processor documentation for specifc instructions for the given thermal solution.
Note:
Heat sink styles
may differ.
Server Board Cutaway
Heat Sink Retainer [CEK Spring]
TP00721

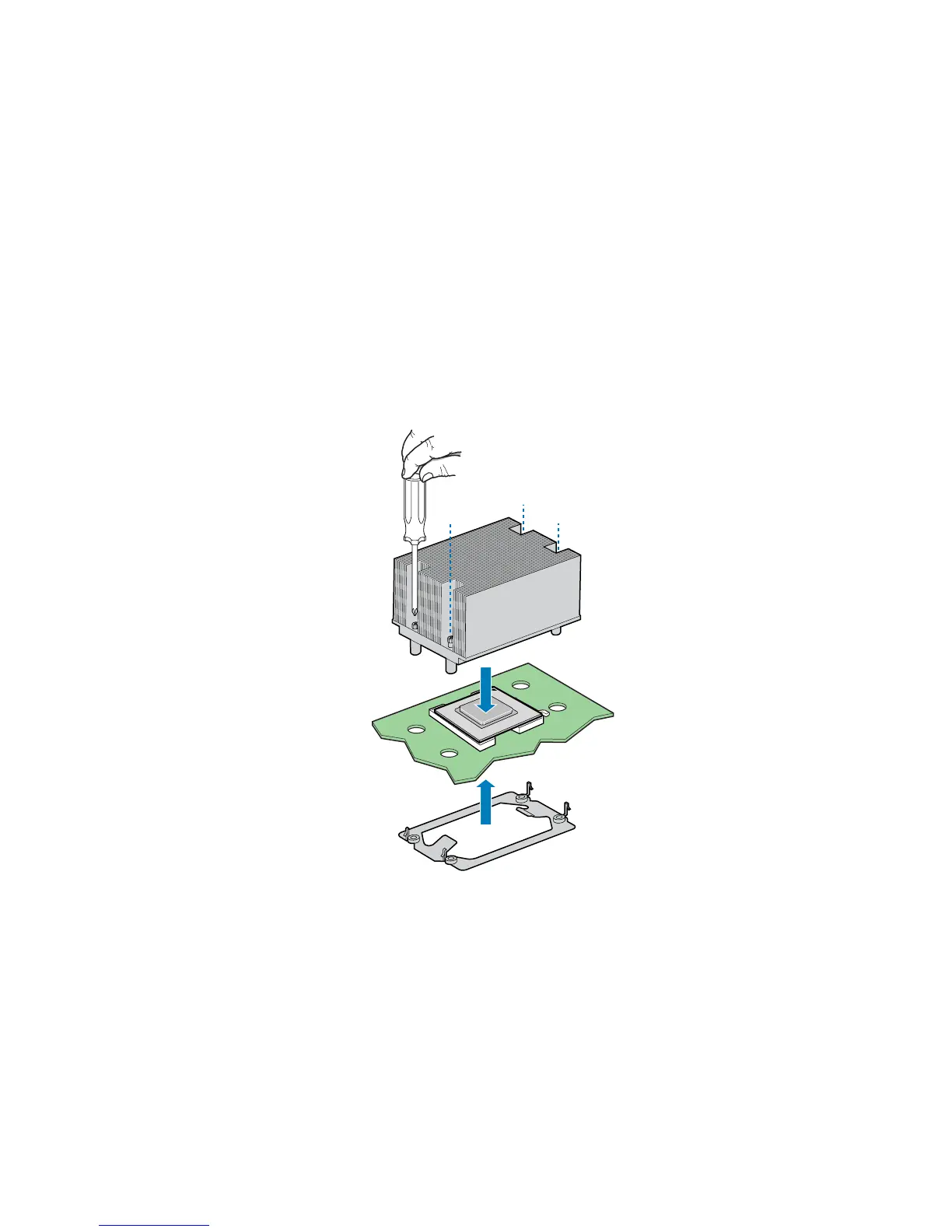

Figure 9. Installing the Heat Sink
