Hardware Installations and Upgrades
10
TP00722
DIMM 2A
DIMM 3B
DIMM 3A
DIMM 2B
DIMM 1A
DIMM 1B

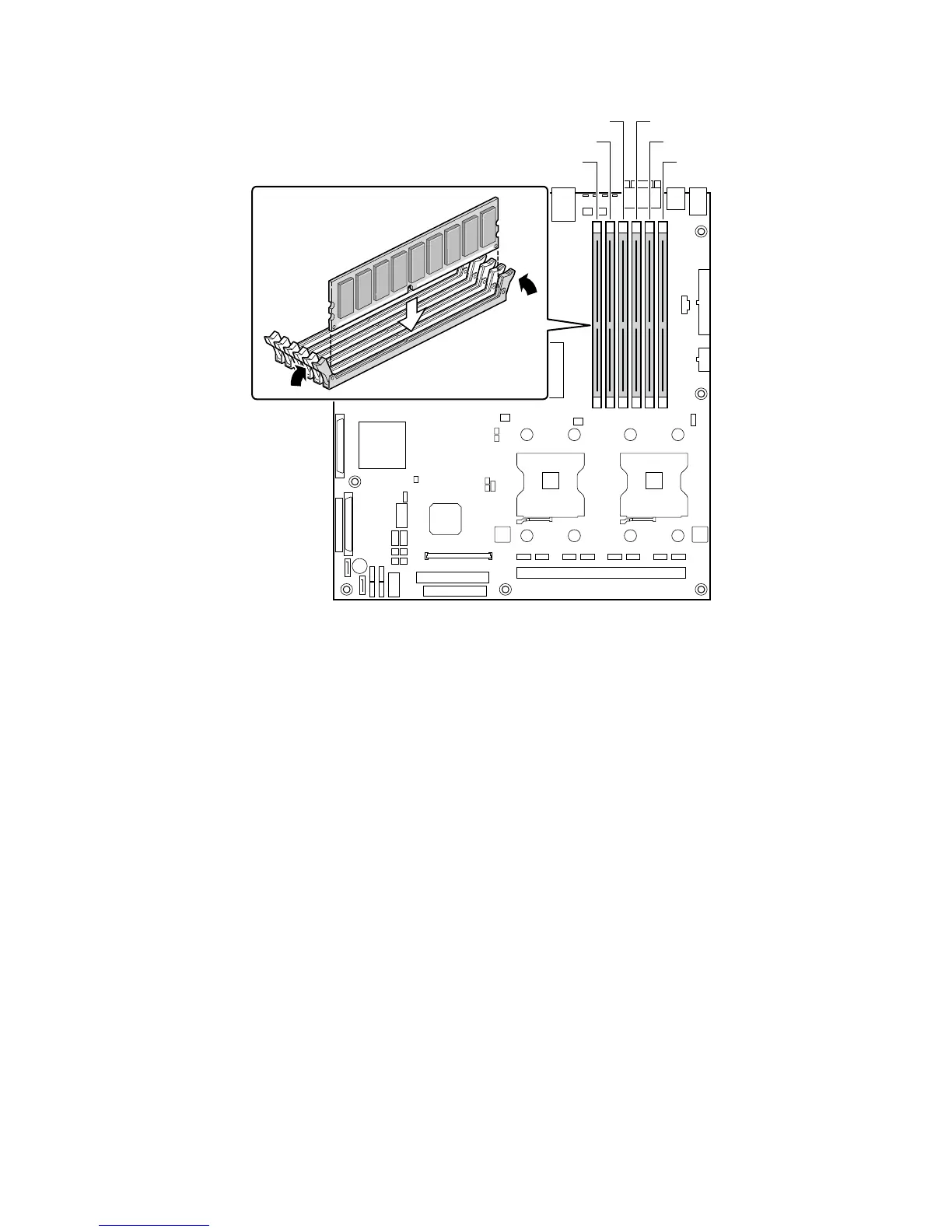

Figure 5. Installing Memory
5. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the open
position.
6. Holding the DIMM by the edges, remove it from its anti-static package.
7. Position the DIMM above the socket. Align the small notch in the bottom edge of the DIMM
with the key in the socket.
8. Insert the bottom edge of the DIMM into the socket.
9. When the DIMM is inserted, carefully push straight down on the top edge of the DIMM until
the retaining clips snap into place. Make sure the clips are firmly in place.
10. Replace the chassis cover and reconnect the AC power cord.
