Intellian Intelligent Mediator User Manual

12

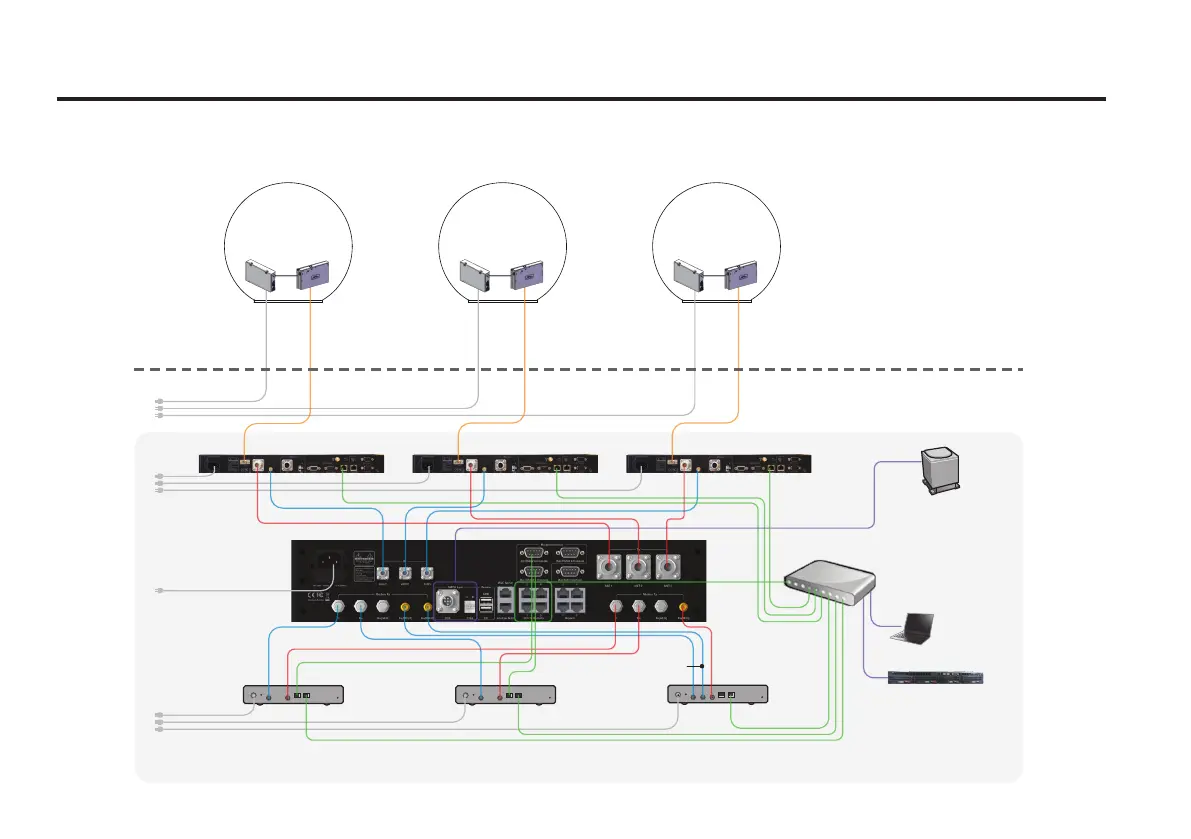

Intelligent Mediator – Marine Satellite Communication System
Tri-band Antenna System with Single Data Center
Rx
Ethernet Ethernet Ethernet
Fiber CableFiber Cable Fiber Cable
Router
(Not supplied)
ACU 1 ACU 2 ACU 3
Intelligent Mediator
TX
TX RxTX RxTX
LAN
Console(Optional) Console(Optional)
LAN LAN
RX TXRX TXRX1
M&C Server
(Not supplied)
AC 100~240V
AC 100~240V
AC 100~240V
RX2
C-band Modem
(Not supplied)
Ku-band Modem
(Not supplied)
Ka-band Modem
(Not supplied)
Ship’s
Gyrocompass
(Not supplied)
PC
(Not supplied)
Single Data Center
Fiber LinkPower Box
Antenna 1
Fiber LinkPower Box
Antenna 2
Fiber LinkPower Box
Antenna 3
AC 100~240V
Above Decks
Below Decks

Intellian Intelligent Mediator Specifications

General

Brand	Intellian
Model	Intelligent Mediator
Category	Controller
Language	English
