Intellian Intelligent Mediator - Connecting to Ka-band Modem

18
Intelligent Mediator – Marine Satellite Communication System
Connecting to Ka-band Modem

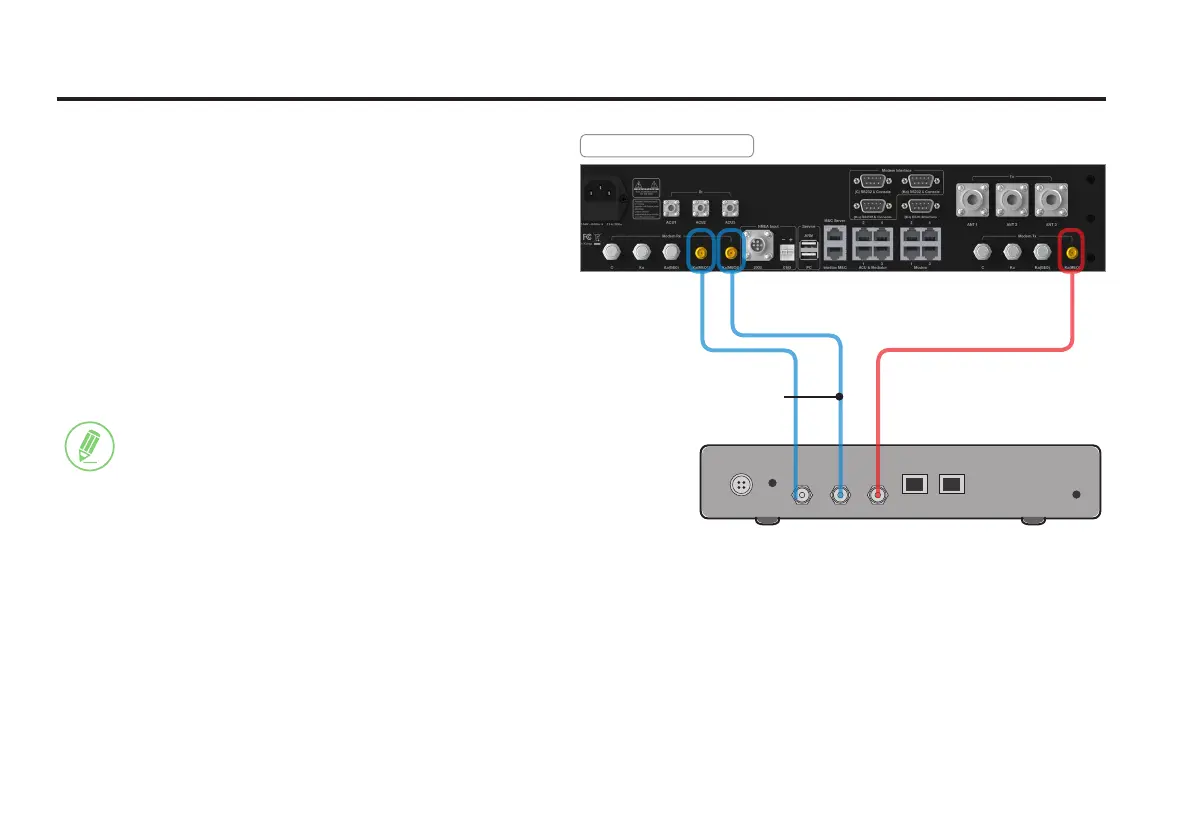

Connect the “SMA to SMA Cable” from the “Ka(MEO1)
Modem Rx” connector on the rear of the Intelligent Mediator
to the Rx1 connector on the Ka-band modem.
Connect the “SMA to SMA Cable” from the “Ka(MEO2)
Modem RX” connector on the rear of the Intelligent Mediator
to the Rx2 connector on the Ka-band modem.
Connect the “SMA to SMA Cable” from the “Ka(MEO)
Modem Tx” connector on the rear of the Intelligent Mediator
to the Tx connector on the Ka-band modem.
NOTE
NOTE: When tightening the SMA cable connector,
using a 0.56 Nm torque value is recommended.
