Intellian Intelligent Mediator User Manual

17
Installation
Connecting to Ku-band Modem

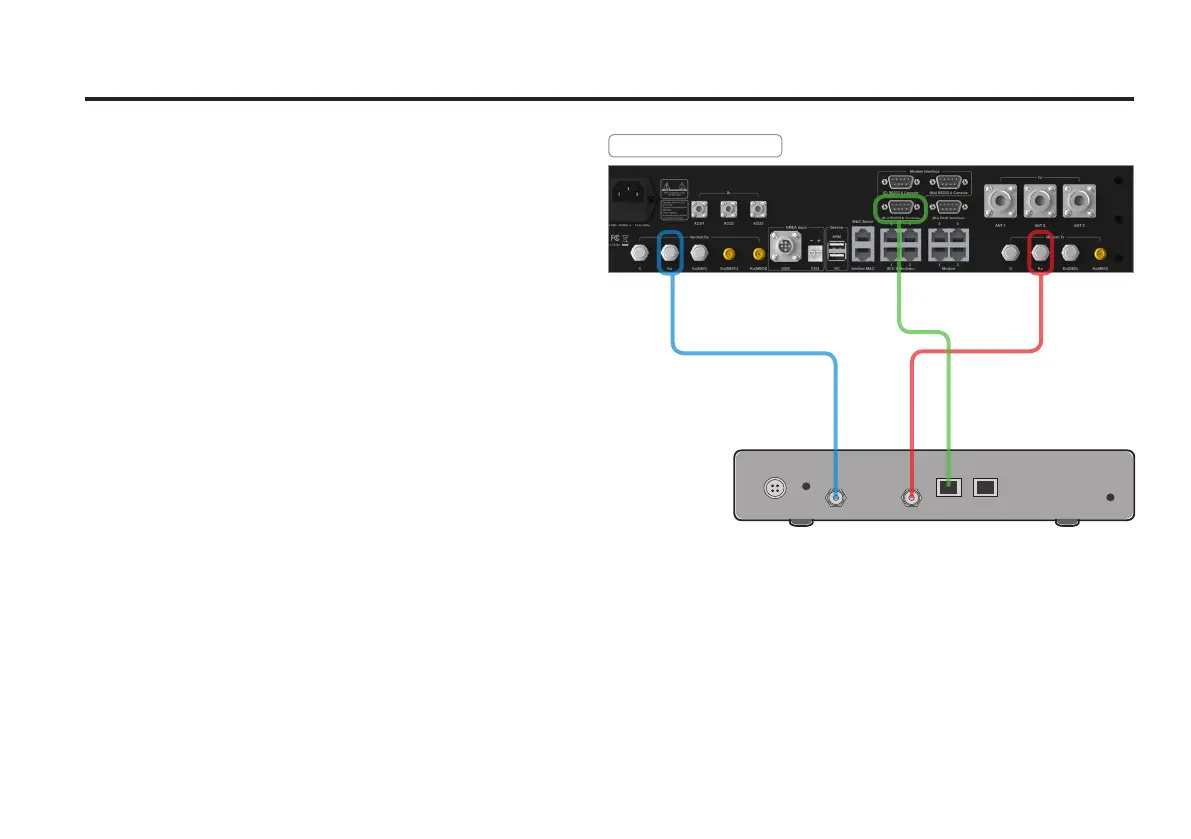

Connect the “RG6 cable” from the “Ku Modem Rx” connector
on the rear of the Intelligent Mediator to the Rx connector on
the Ku-band modem.
Connect the “RG6 cable” from the “Ku Modem TX” connector
on the rear of the Intelligent Mediator to the Tx connector on
the Ku-band modem.
When using the I/O console system, connect the modem
interface cable from the “(Ku)RS232&Console” connector
on the rear of the Intelligent Mediator to the CONSOLE
connector on the Ku-band modem.
Ku-band
Modem
(Not supplied)
Ku Modem Rx
Modem Rx
Ku Modem Tx
CONSOLE
(Ku)RS232C
&Console
Modem
Tx
Intelligent Mediator
