Intelligent Mediator – Marine Satellite Communication System
Connecting to C-band Modem

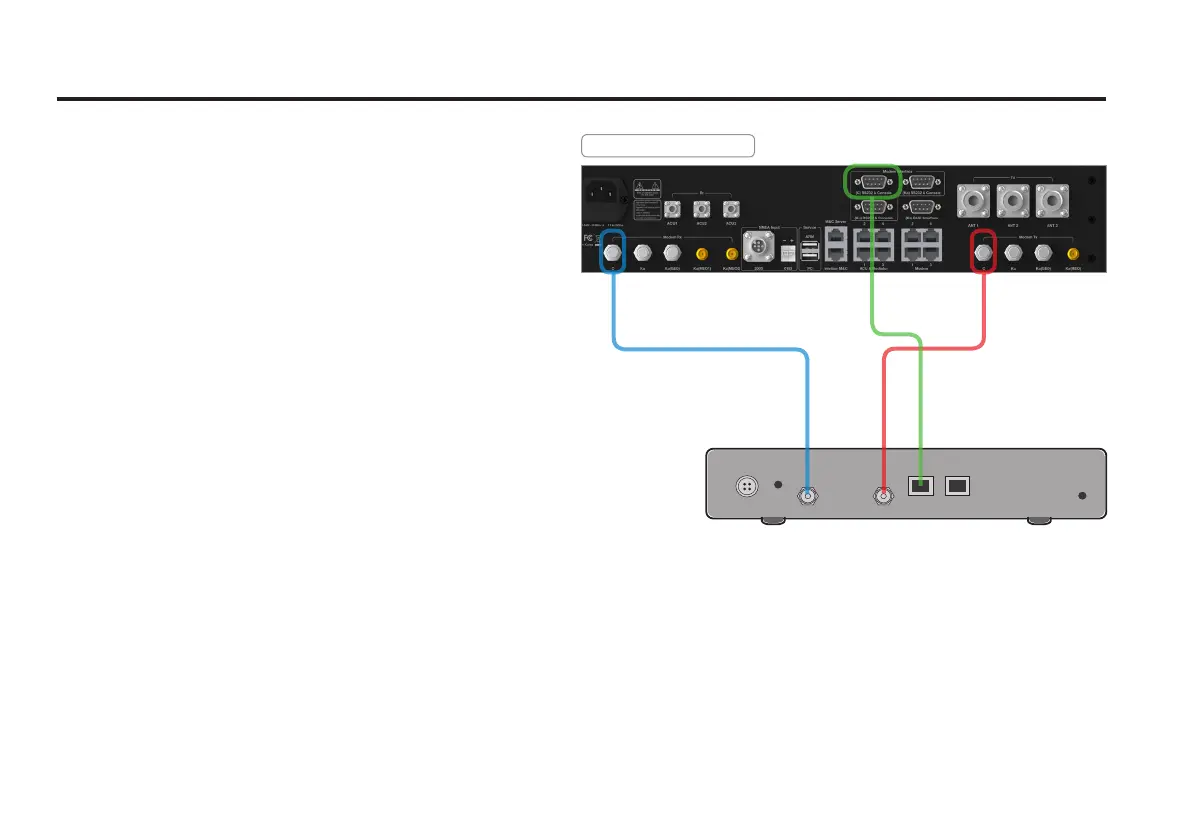

Connect the “RG6 cable” from the “C Modem Rx” connector
on the rear of the Intelligent Mediator to the Rx connector on
the C-band modem. Connect the “RG6 cable” from the “C
Modem Tx” connector on the rear of the Intelligent Mediator
to the Tx connector on the C-band modem.
When using the I/O console system, connect the modem
interface cable from the “(C)RS232&Console” connector
on the rear of the Intelligent Mediator to the CONSOLE
connector on the C-band modem.
C-band
Modem
(Not supplied)
C Modem Rx
Modem Rx
C Modem Tx
CONSOLE
(C)RS232C&
Console
Modem
Tx
Intelligent Mediator
