7-3 RS-232 Programming:

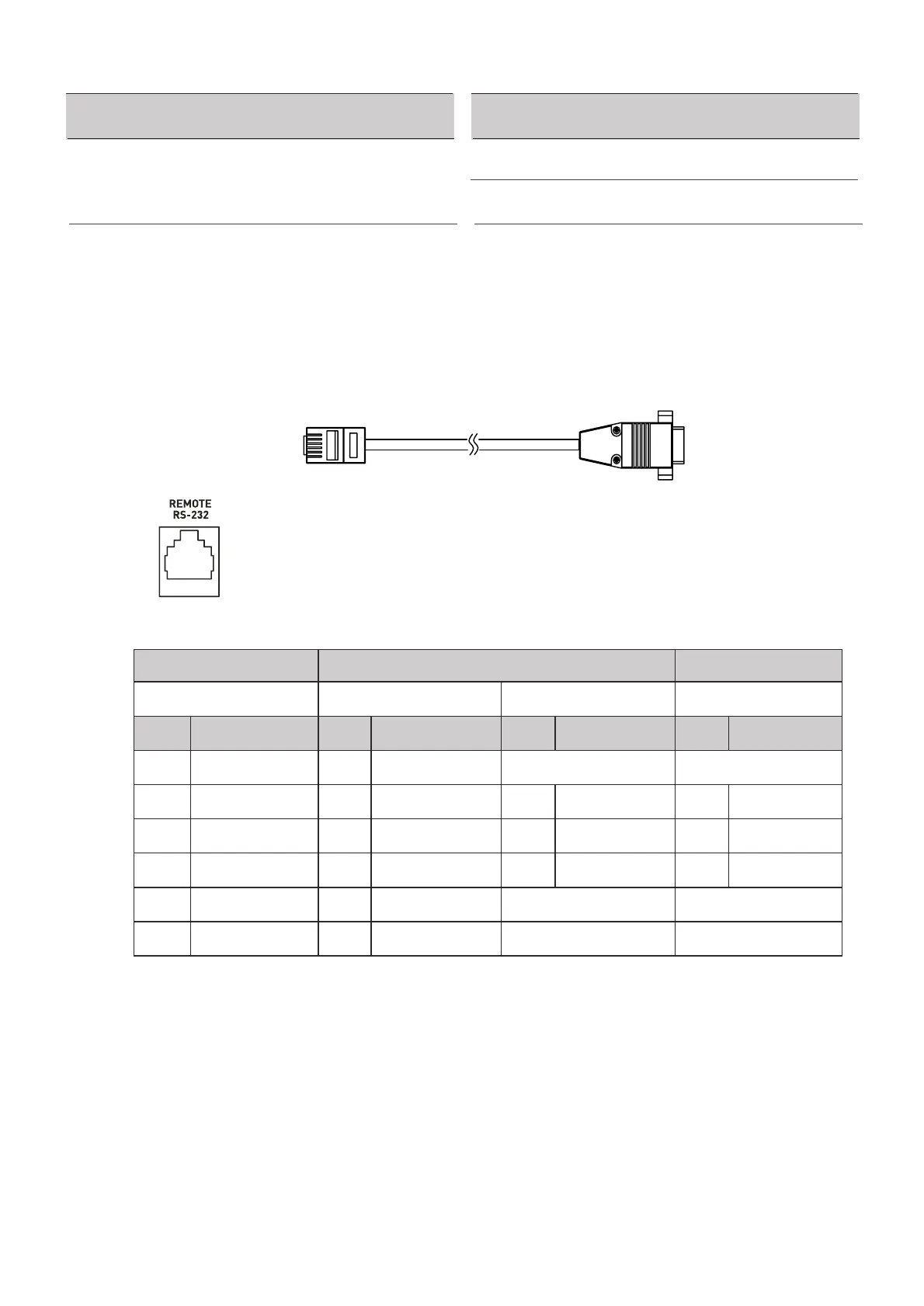

Please follow below drawing to make a communication cable. Alternatively this cable can be

To BBINT

RJ11 RS232

To Computer

Power Inverter RJ11 to RS232 RS232 to USB

RJ11 (Female) RJ11(Male) RS232(Female) RS232(Male)

Descripon PIN Descripon PIN Descripon PIN Descripon

1 Not used 1 N/A N/A N/A

2 GND 2 GND 5 GND 5 GND

3 RX 3 RX 3 RxD 3 TxD

4 TX 4 TX 2 TxD 2 RxD

5 RMT 5 N/A N/A N/A

6 VCC 6 N/A N/A N/A

NA Seng

0 0

S7 S8

To Use Rs232 Programmed Sengs

To Use DIP S1-S7 Sengs
