Intellitec BBINT Series - Charging Curve

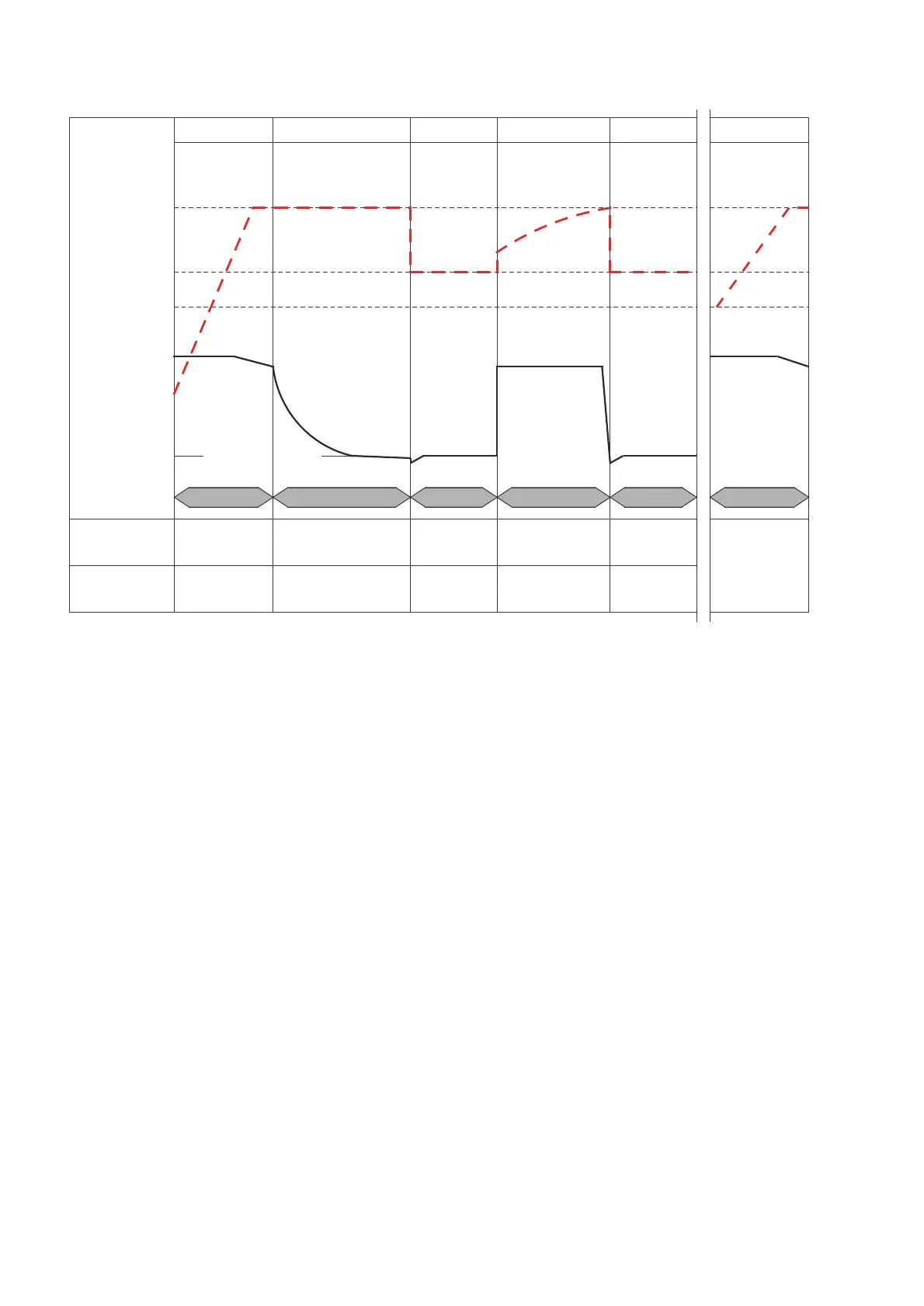

8-3 Charging Curve
BULK
2min~8hours
ABSORPTION
0.25hours~24hours
FLOAT
2weeks
FLOAT
2weeks
RECHARGE
85mins
BULK
2min~8hours
Voltage
Current
12.8
13.8
14.4
BULK(CC) ABSORPTION(CV)
FLOAT RECHARGE FLOAT
BULK(CC)
Return amps =6.25% of rated current
BULK
2min~8hours
ABSORPTION
0.25hours~24hours
FLOAT
2weeks
FLOAT
2weeks
RECHARGE
85mins
BULK
2min~8hours
Charging stage
Reduce charging me by
charging at maximum current
(Constant Current)
Make sure the battery is fully charged
without overcharging (Constant Voltage)
Maintain the battery at
100% charge condion
Recharging the battery
Maintain the battery at
100% charge condion
Charging spec
Charging at rated current
14.4V
unl the curent drops to
6.25% of rated current
Stay at 13.8V
14.4V with rated current
Stay at 13.8V
Once battery voltage is below
12.8v, after 30
seconds, BBINT will turn from
FLOAT to BULK.
