Stereo Input Channel

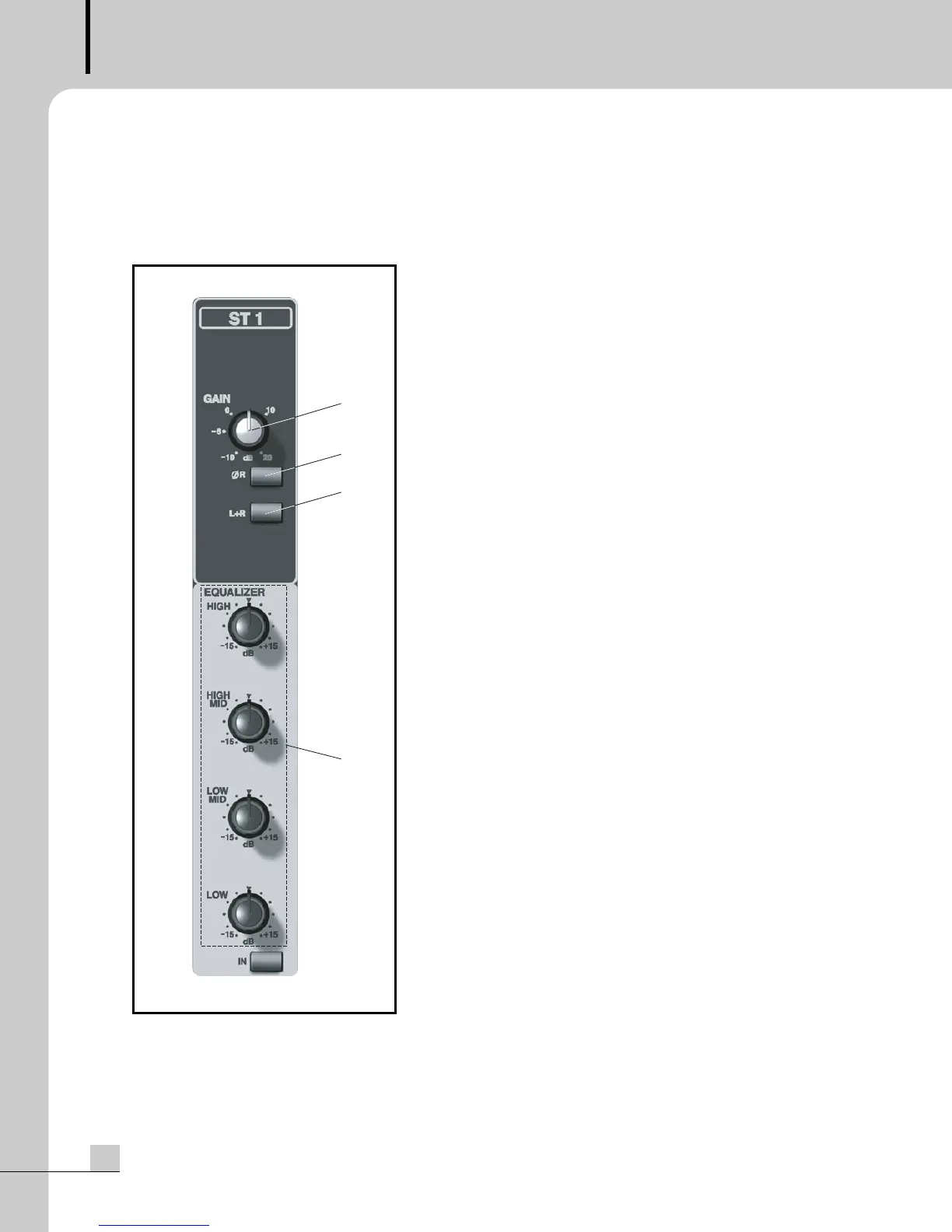

1. FRONT PANEL
1. GAIN
Gain is variable from -10dB to +20dB.
2. R POLARITY INVERT
Reverses phase or, more accurately, polarity of the right
channel only.
3. L+R
Sums left and right inputs together to make a mono signal.
4. EQUALIZER
Here is a four-band traditional Baxandall equalizer. LF and HF
filters have a shelving response at 80Hz and 12kHz
respectively. High Mid and Low Mid bands have a bell
response centered around 3.15kHz and 315Hz respectively.
The IN switch inserts all four bands into the signal path, which
is useful when checking the effectiveness of your EQ settings.
