Inter-m IMX-824 User Manual

MIXING CONSOLE
22
IMX-824/832/840

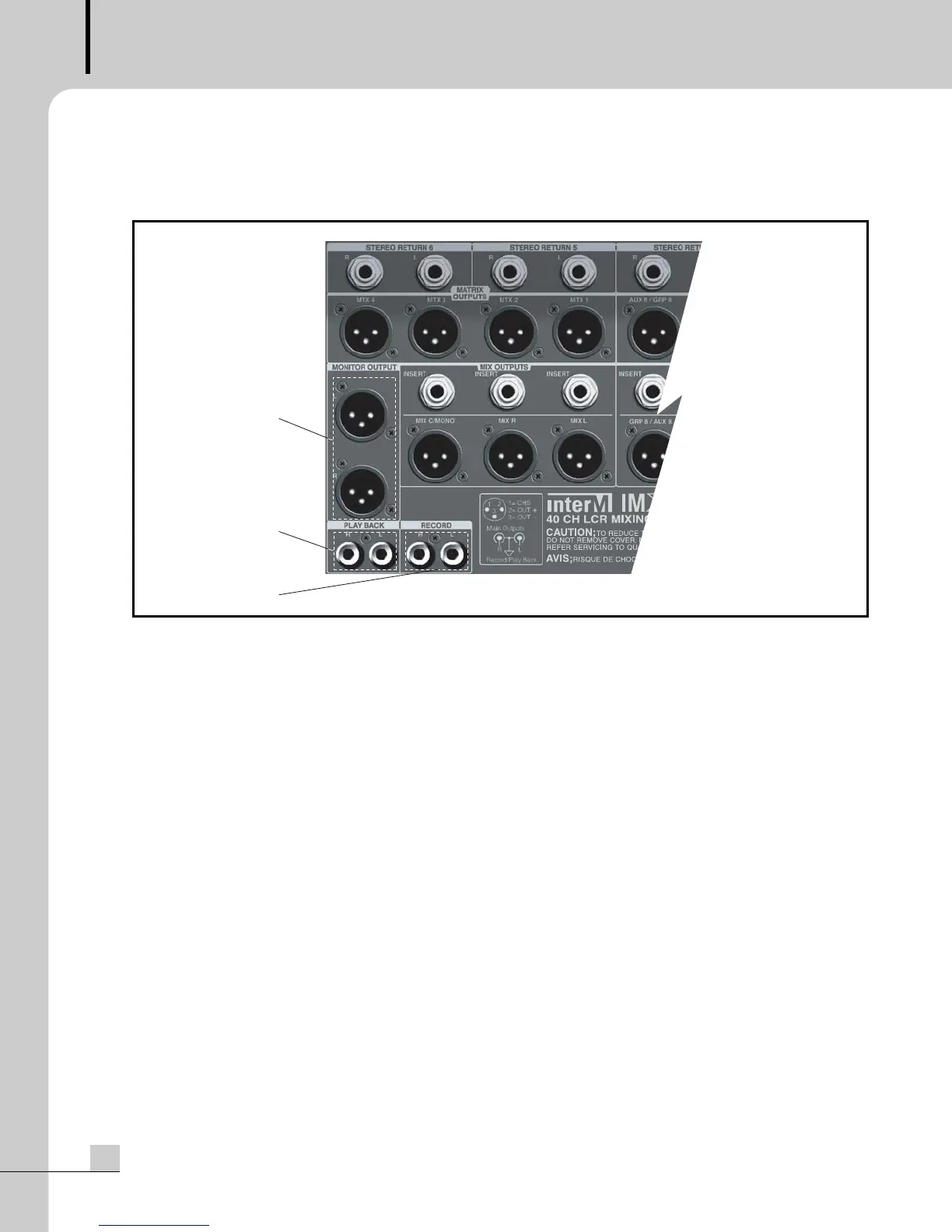

2. REAR PANEL
1. MONITOR
Standard male XLR connectors. The signal is unbalanced, with pin 2 hot, pin 3 ground and pin 1 to chassis.
Nominal level is 0dBu.
2. PLAY BACK
Standard RCA sockets for stereo consumer audio equipment. This input can only route to the monitor section.
This can be used to monitor the recording of a performance without the danger of creating feedback.
Nominal input level is -10dBv.
3. RECORD
Standard RCA sockets for stereo consumer audio equipment. This signal is a 2-channel mix of the MIX L/C/R
outputs.
1
2
3
